Video Camera: Removal

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the luggage compartment lid applique. Refer to Exterior Trim and Ornamentation .

2.

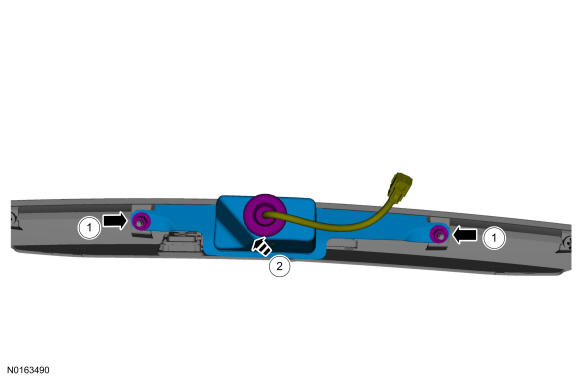

Remove the video camera housing.
1. 1.

  Remove the video camera housing nuts.
1. 2.

  Route the grommet through the video camera housing and remove the video camera housing.

Courtesy of FORD MOTOR COMPANY

3.

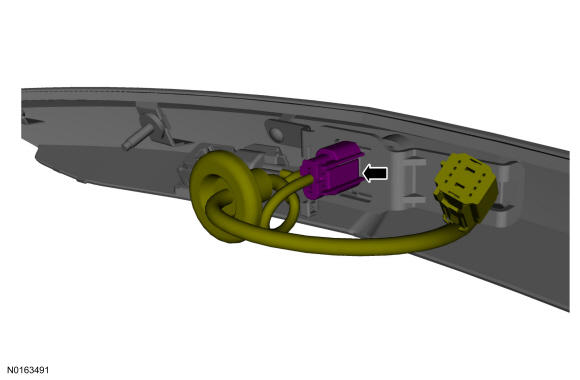

Disconnect the video camera electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

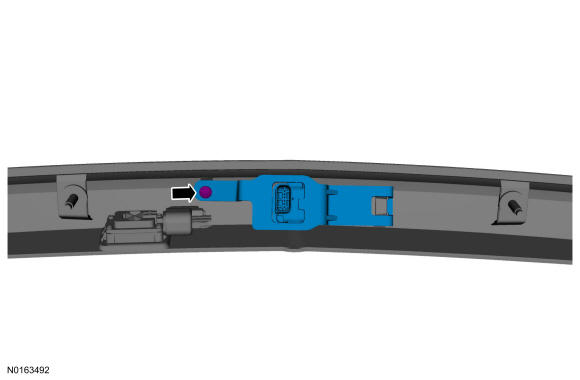

Remove the video camera mounting bracket retainer and video camera assembly.

Courtesy of FORD MOTOR COMPANY

5.

NOTE: This step only necessary when installing a new component.

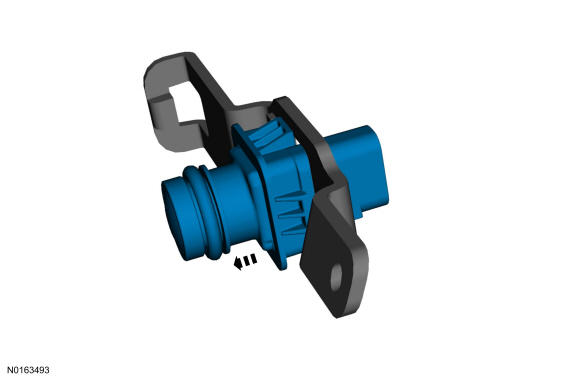

Remove the video camera from the video camera mounting bracket.

Courtesy of FORD MOTOR COMPANY
