OEM Ground Distribution: Grounds: G301

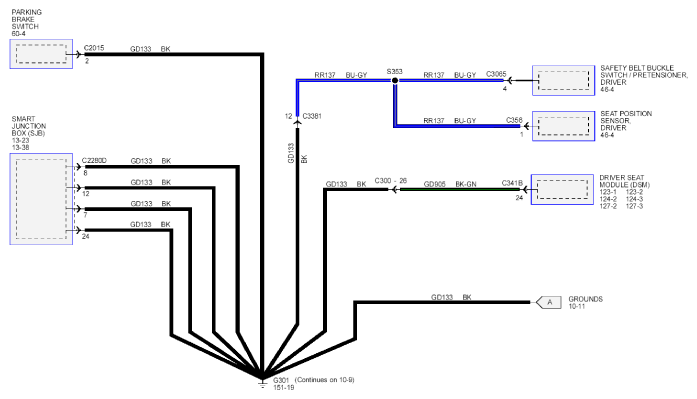

Fig 1: Grounds Circuit Diagram - G301 (1 Of 3)

Courtesy of FORD MOTOR CO.

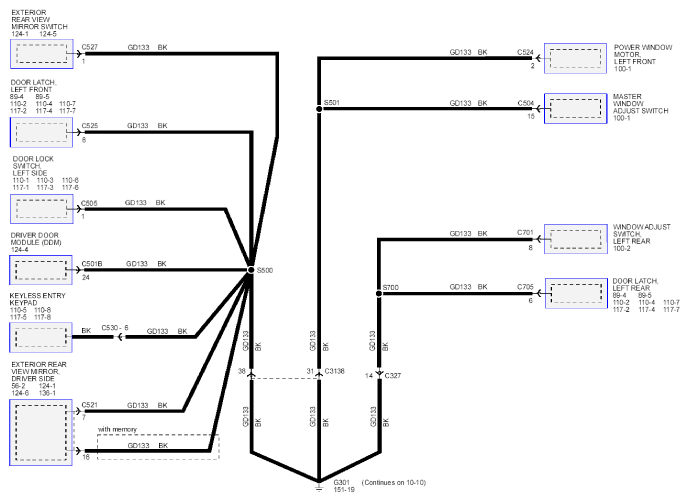

Fig 2: Grounds Circuit Diagram - G301 (2 Of 3)

Courtesy of FORD MOTOR CO.

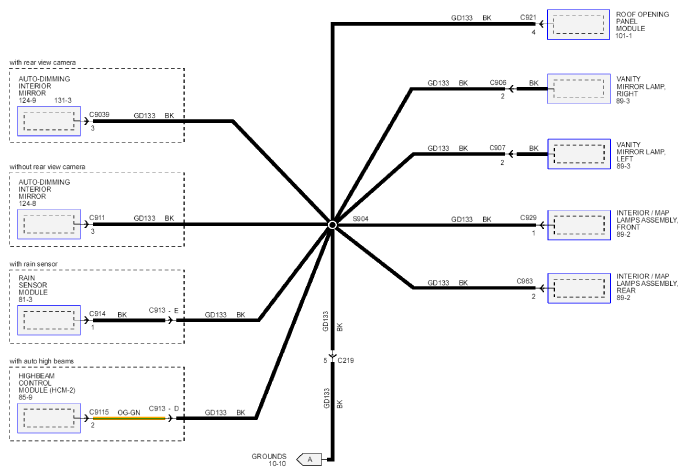

Fig 3: Grounds Circuit Diagram - G301 (3 Of 3)

Courtesy of FORD MOTOR CO.
