OEM Ground Distribution: Grounds: G200

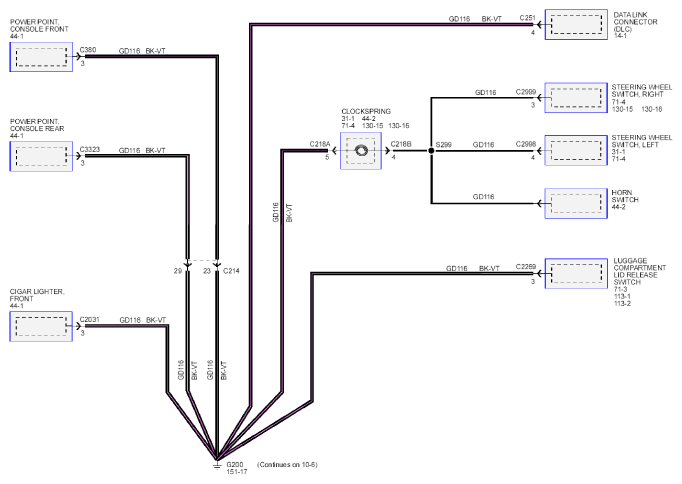

Fig 1: Grounds Circuit Diagram - G200 (1 Of 2)

G07898019

Courtesy of FORD MOTOR CO.

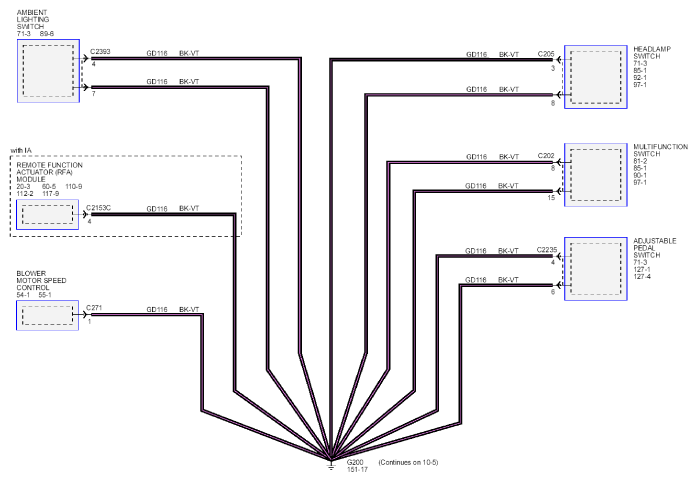

Fig 2: Grounds Circuit Diagram - G200 (2 Of 2)

G07898020

Courtesy of FORD MOTOR CO.
