OEM Ground Distribution: Grounds: G101

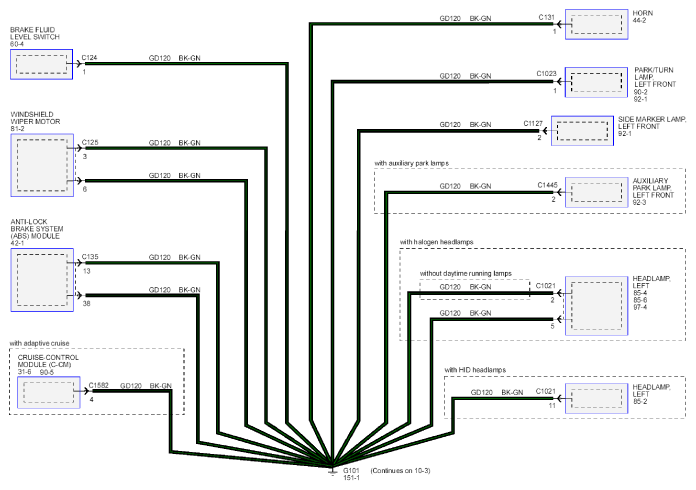

Fig 1: Grounds Circuit Diagram - G101 (1 Of 2)

G07898016

Courtesy of FORD MOTOR CO.

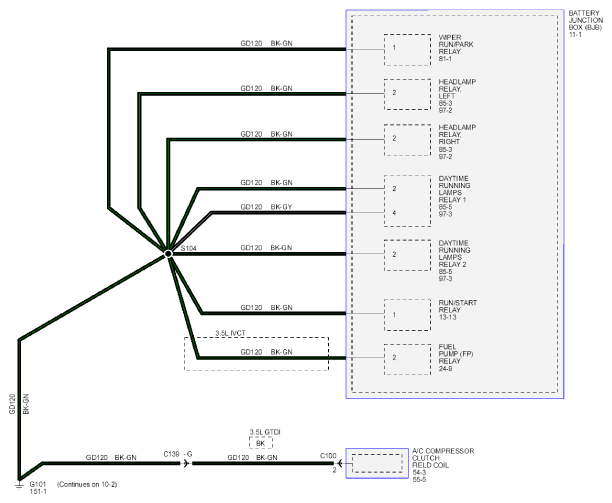

Fig 2: Grounds Circuit Diagram - G101 (2 Of 2)

G07898017

Courtesy of FORD MOTOR CO.
