Heat Shield: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

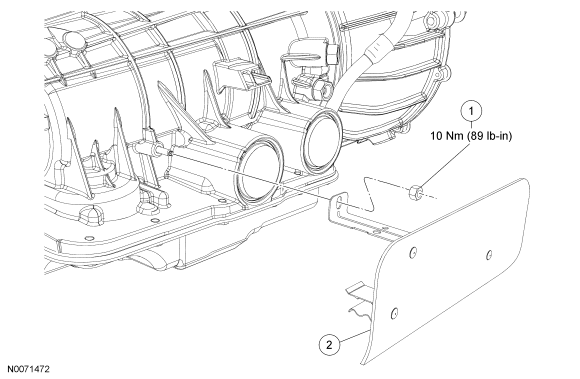

Fig 1: Heat Shield With Torque Specification
GF0010059Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N620040-S Heat shield nut
2 7F013-B Heat shield
