Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. If equipped, remove the clip and the recline handle.
    GFD179151Courtesy of FORD MOTOR COMPANY

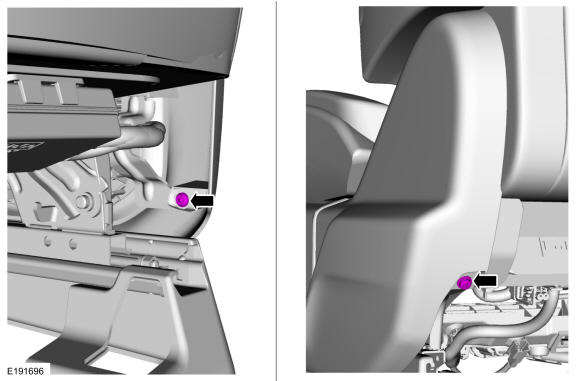

  2. Remove the side shield screws.
    GFD179148Courtesy of FORD MOTOR COMPANY

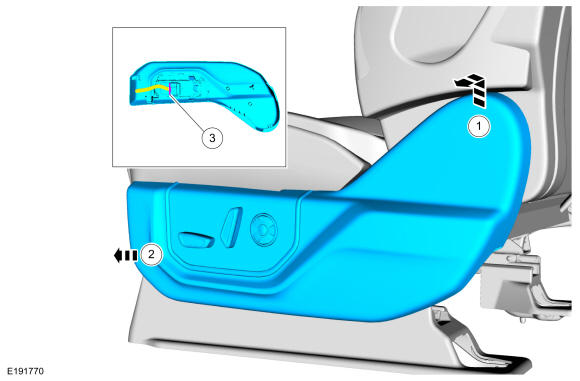

  3. NOTE: Side shield with power recline seat shown, all others similar.

    Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD179152Courtesy of FORD MOTOR COMPANY

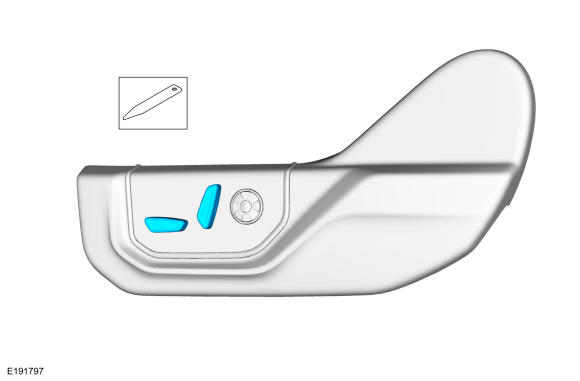

  4. Remove the seat control switch knob(s).
    GFD179185Courtesy of FORD MOTOR COMPANY

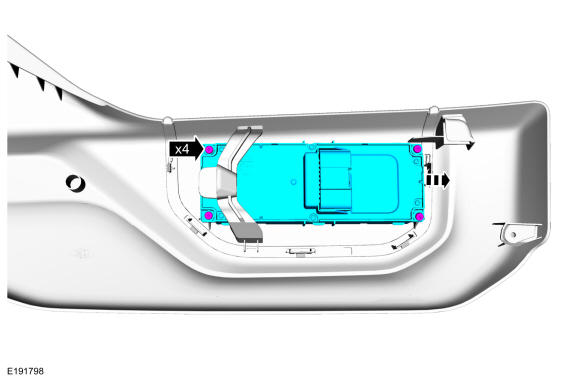

  5. Remove the screws and the seat control switch.
GFD179186Courtesy of FORD MOTOR COMPANY
