Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the driver airbag. Refer to: Driver Airbag .

Steering wheel paddle switches

NOTE: LH shown, RH similar.

2.
1. 1.

  Disconnect the electrical connector and position aside the wiring harness.
1. 2.

  Remove the screw and the downshift paddle switch.

Courtesy of FORD MOTOR COMPANY

Steering wheel switches

3.

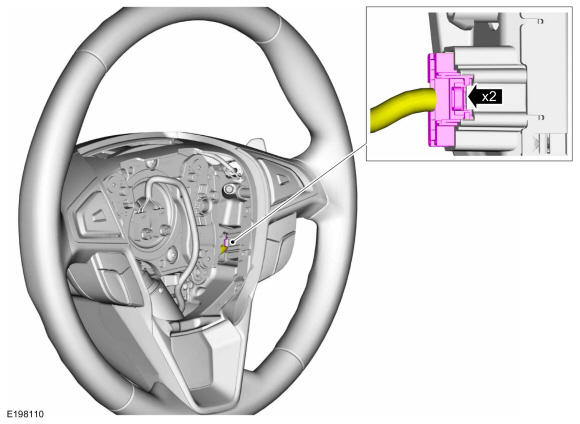

On both sides. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

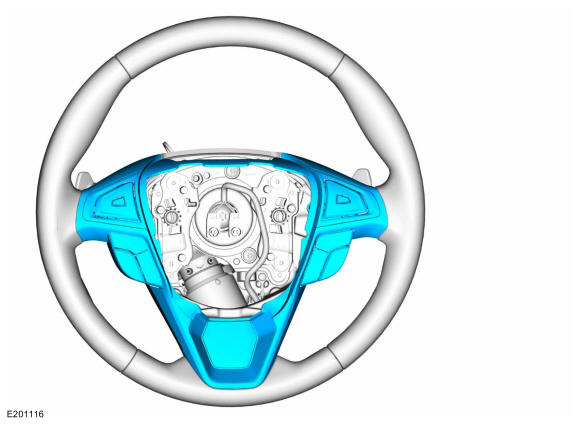

Using a suitable flat-bladed tool, remove the steering wheel bezel.

Courtesy of FORD MOTOR COMPANY

5.

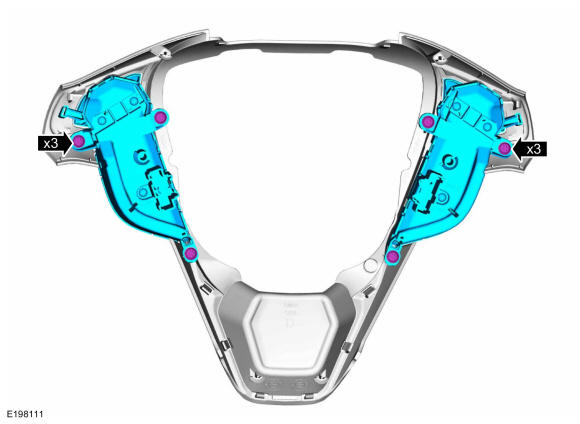

Remove the screws and the steering wheel multifunction switches.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
