Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the steering column shrouds. Refer to: Steering Column Shrouds .

  1. 2.

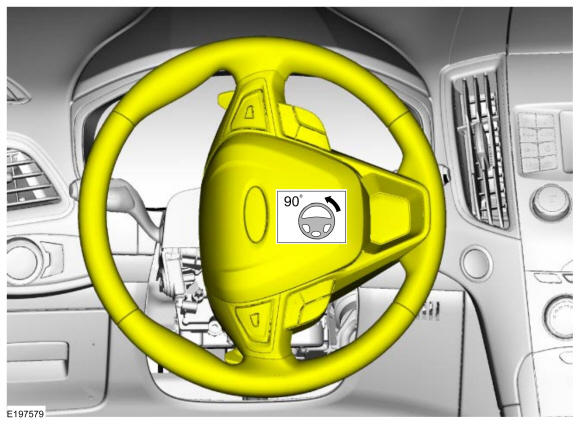

    Turn the steering wheel 90 degrees left.
GFD19036Courtesy of FORD MOTOR COMPANY

  1. 3.

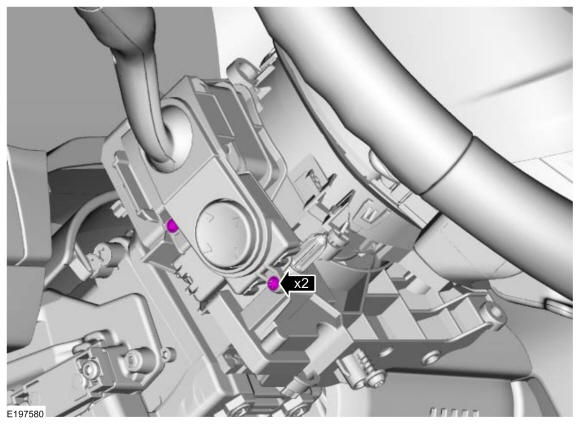

    Remove the screws.

    Torque: 27 lb.in (3 Nm)

GFD19037Courtesy of FORD MOTOR COMPANY

  1. 4.

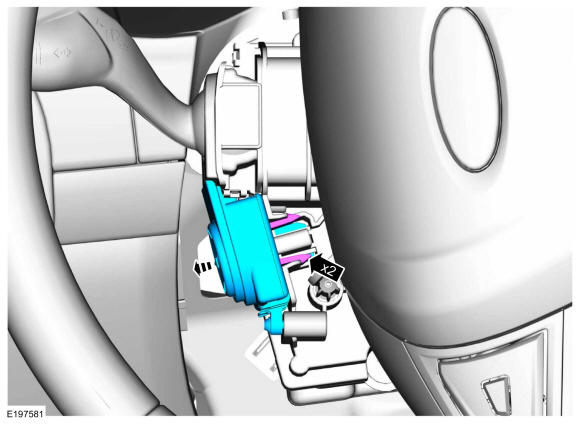

    Squeeze the tabs and remove the steering column control switch.
GFD19038Courtesy of FORD MOTOR COMPANY
