Transfer Case
WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
With the vehicle in Neutral, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 3.
Drain the fluid if the transfer case is to be disassembled. Refer to: Transfer Case Draining and Filling .
- 4.
Remove the front driveshaft. Refer to: Front Driveshaft .
- 5.
Remove the rear driveshaft. Refer to: Rear Driveshaft .
- 6.

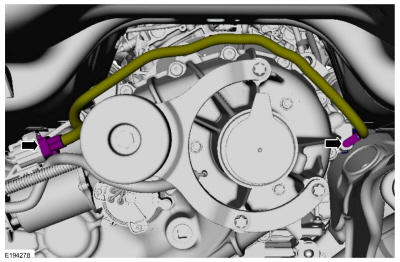

Disconnect the shift motor electrical connector and detach the harness retainer clip from the transfer case.
- 8.
Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .

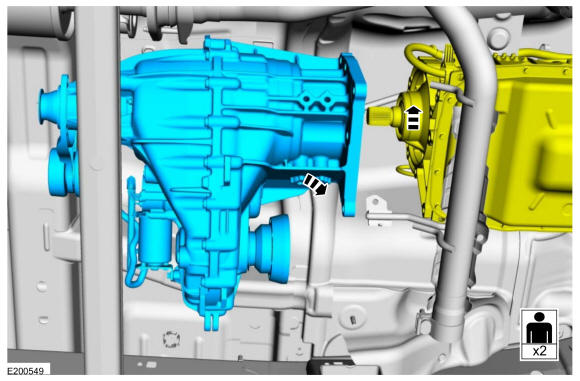

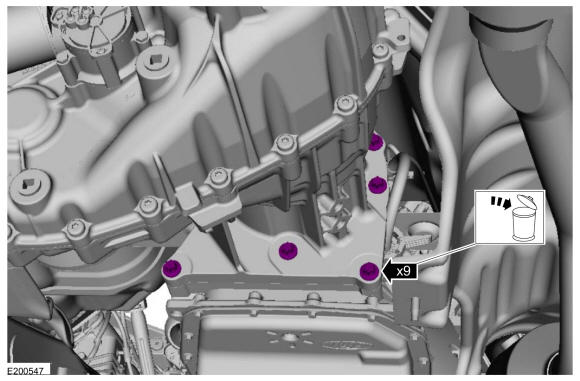

- 12.NOTE: The transfer case will need to be positioned on top of the crossmember and will require the help of an assistant.
Separate the transfer case from the transmission and move the transfer case rearward.

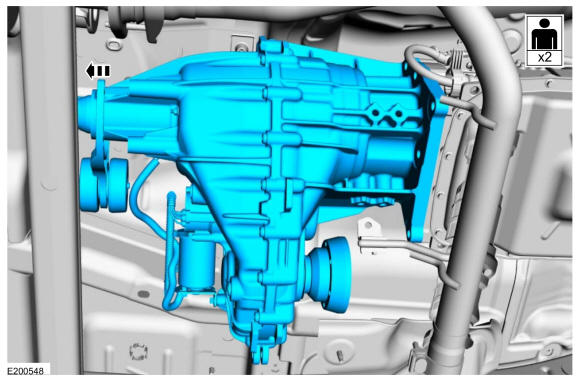

- 13.NOTE: An assistant will be required to remove the transfer case.
Raise the transmission for clearance. Remove the transfer case and lower it from the vehicle.
