Front Disc Brake Shield: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the brake disc. Refer to: Brake Disc .

2.

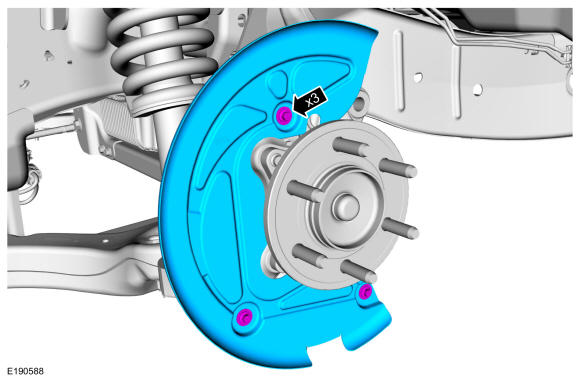

Remove the 3 bolts and the brake disc shield.
Torque: 155 lb.in (17.5 Nm)
