Tire Pressure Monitor (TPM) Module: Installation
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

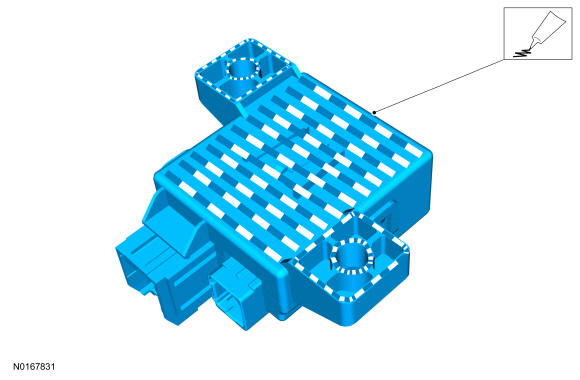

- 1.NOTE: When installing the TPM, use 3M Duramix ® 4747 Super Fast Adhesive to secure the TPM to the headliner in approximately the same position and orientation on the headliner.
Apply the adhesive evenly to the back of the TPM.
- 2.

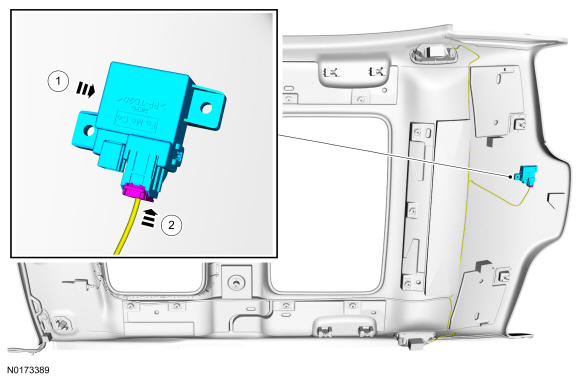

Install the TPM.- 1.
Press the TPM to the headliner In approximately the same position and orientation on the headliner from which It was removed.
- 2.
Connect the TPM electrical connector.
- 1.
- 3.
Install the headliner. Refer to Interior Trim and Ornamentation .
