Headlamp Switch: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

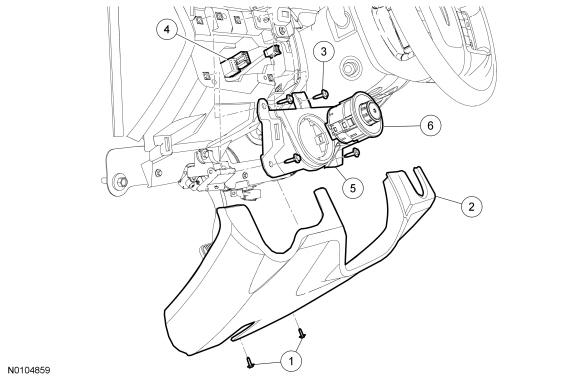

| Item | Part Number | Description |
|---|---|---|
| 1 | N808453 | Steering column cover screws (2 required) |
| 2 | 5404459 | Steering column cover |
| 3 | W707628 | Headlamp switch bezel screws (4 required) |
| 4 | - | Electrical connectors (part of 14401) |
| 5 | 7804338 | Headlamp switch bezel |
| 6 | 11654 | Headlamp switch |
