Hood Latch: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

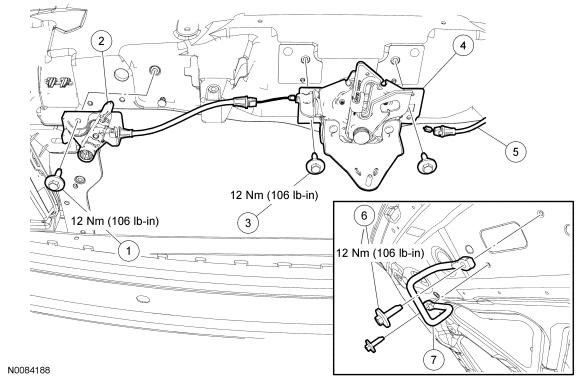

Radiator grille shown in illustration, removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | N808727 | Secondary hood latch release handle bolt |
| 2 | 16916 | Secondary hood latch release handle and cable |
| 3 | W711676 | Hood latch bolts (2 required) |
| 4 | 16700 | Hood latch |
| 5 | 16916 | Hood latch release cable |
| 6 | N807658 | Hood latch striker bolts (2 required) |
| 7 | - | Hood latch striker |
