Hood Latch Release Handle: Notes

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

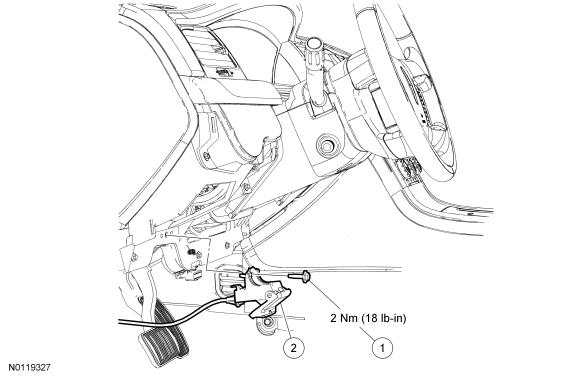

Fig 1: Hood Latch Release Handle Replacement Components With Torque Specifications
GFD90354Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 W505424 Hood latch release handle bolt
2 16916 Hood latch release handle and cable

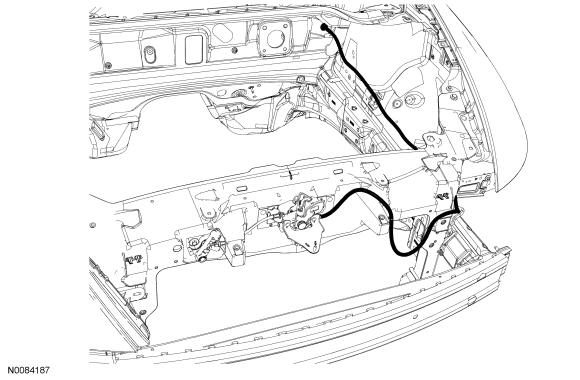

Hood Latch Release Cable Routing

GFD90355Courtesy of FORD MOTOR COMPANY
