Adjustable Pedals Control Switch: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

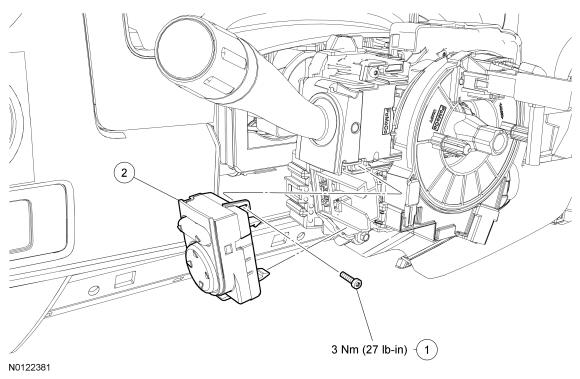

Steering wheel removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | W715057 | Adjustable pedals control switch screw |
| 2 | 9G604 | Adjustable pedals control switch |
