Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

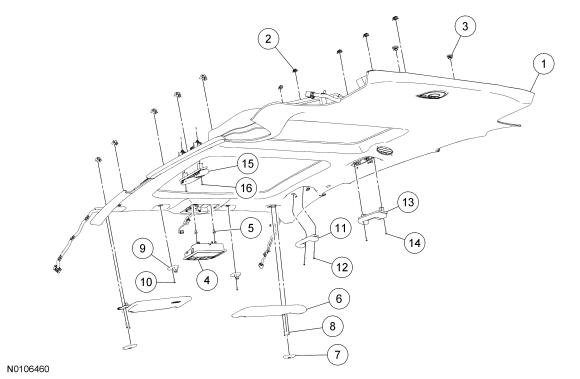

| Item | Part Number | Description |
|---|---|---|
| 1 | 7451968 | Headliner |
| 2 | W714337-S-S | Headliner retainer (10 required) |
| 3 | - | Headliner magnet (part of 7451916) (2 required) |
| 4 | 74519A58 | Headliner overhead console |
| 5 | 714372-S-S | Headliner overhead console retainer (part of 78519F28) (2 required) |
| 6 | 7404101 LH/ 7404106 RH LH/ 7404106 RH | Sun visors |
| 7 | 75046B97 LH/ 75046B96 RH LH/ 75046B96 RH | Sun visor screw cover |
| 8 | W502564 | Sun visor screw (2 required for each side) |
| 9 | 7404132 | Sun visor clip (1 required for each side) |
| 10 | W502561 | Sun visor clip screw (1 required for each side) |
| 11 | 5431406 | Assist handle (RH front) |
| 12 | W790041 | Assist handle screw (RH front) (2 required) |
| 13 | 7431406 | Assist handle (RH rear) |
| 14 | W502561 | Assist handle screw (2 required) |
| 15 | 7431407 | Assist handle (LH rear) |
| 16 | W502561 | Assist handle screw (2 required) |
