Upper Arm: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

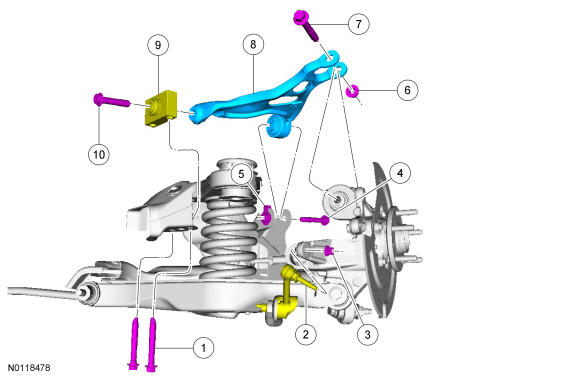

| Item | Part Number | Description |
|---|---|---|
| 1 | W715179 | Upper arm-to-subframe rearward bolt (2 required) |
| 2 | 5K484 | Stabilizer bar link |
| 3 | W520213 | Stabilizer bar link nut |
| 4 | W715419 | Upper arm-to-subframe forward bolt |
| 5 | W714175 | Upper arm-to-subframe forward nut |
| 6 | W520517 | Upper arm-to-wheel knuckle nut |
| 7 | W715127 | Upper arm-to-wheel knuckle bolt |
| 8 | 5A804 LH/ 5502 RH LH/ 5502 RH | Upper arm |
| 9 | 5A638 | Upper arm rearward bushing |
| 10 | W715493 | Upper arm rearward bushing bolt |

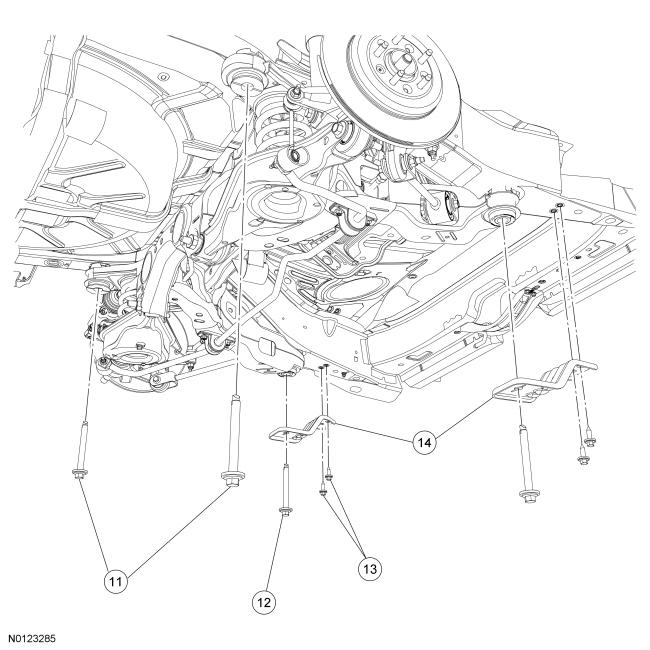

| Item | Part Number | Description |
|---|---|---|
| 11 | W713714 | Subframe rearward bolts (2 required) |
| 12 | W713714 | Subframe forward bolt (2 required) |
| 13 | W711270 | Subframe bracket bolts (4 required) |
| 14 | 5084AA LH/ 5084AB RH LH/ 5084AB RH | Subframe brackets (2 required) |
NOTE:
Brake disc has been removed for clarity.

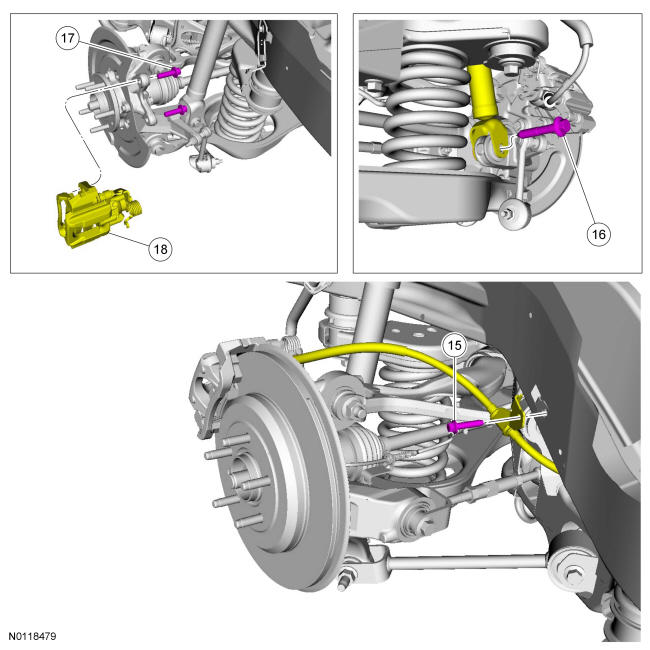

| Item | Part Number | Description |
|---|---|---|
| 15 | W506423 | Parking brake cable bracket bolt |
| 16 | W714366 | Shock absorber lower bolt |
| 17 | W710681 | Brake caliper anchor plate bolt (2 required) |
| 18 | - | Brake caliper and anchor plate assembly |
