Shock Absorber: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

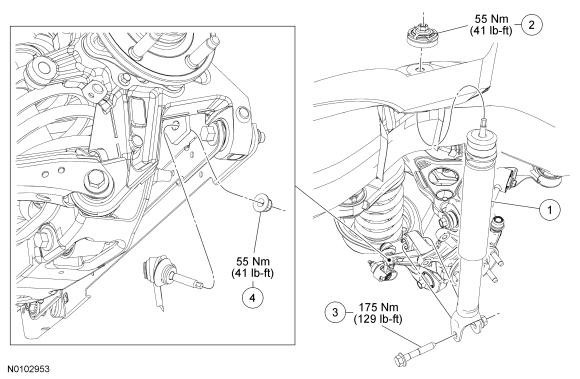

| Item | Part Number | Description |
|---|---|---|
| 1 | 18125 | Shock absorber |
| 2 | 18197 | Shock absorber upper insulator and mount nut |
| 3 | W714366 | Shock absorber lower bolt |
| 4 | W520213 | Stabilizer bar link upper nut |
