Differential Gear Assembly: Disassembly

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Pin punch. Discard the specified component. Follow local disposal regulations.
GFD94019Courtesy of FORD MOTOR COMPANY

  1. 2.

GFD94020Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

    1. 1.

      Side gear

    1. 2.

      Spider gear
GFD94021Courtesy of FORD MOTOR COMPANY

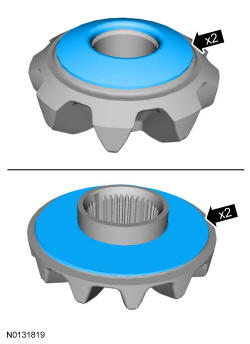

  1. 4.

    NOTE: Do not mix up the washers from the side or spider gears that they are assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
GFD94022Courtesy of FORD MOTOR COMPANY
