Rear Engine Sensor Locations - 3.5L GTDI

WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

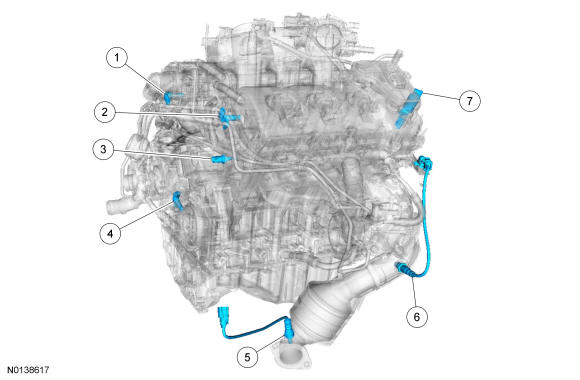

GFD88264Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 LH CMP sensor -
2 RH CMP sensor -
3 CHT sensor -
4 CKP sensor -
5 RH CMS -
6 RH HO2S -
7 RH VCT oil control solenoid -
