Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
The moonroof version is equipped with magnets around the perimeter of the roof opening panel openings that retain the headliner to the roof.

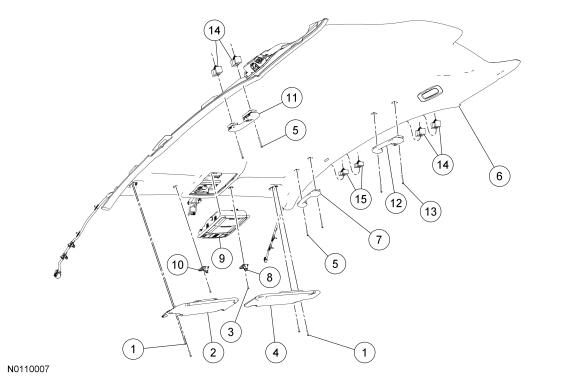

| Item | Part Number | Description |
|---|---|---|
| 1 | W790068 | Sunvisor retainer screws (4 required) |
| 2 | 04105 | Driver side sunvisor |
| 3 | W790066 | Sunvisor clip retainer screw |
| 4 | 04104 | Passenger side sunvisor |
| 5 | W790069 | Front assist handle retainer screws |
| 6 | 51916 | Headliner |
| 7 | 31406 | Passenger side front assist handle |
| 8 | 04132 | Passenger side sunvisor clip |
| 9 | 519A58 | Overhead console |
| 10 | 04133 | Driver side sunvisor clip |
| 11 | 31407 | Driver side assist handle |
| 12 | 31406 | Passenger side rear assist handle |
| 13 | W790070 | Rear assist handle screw (base roof only) |
| 13 | W790071 | Rear assist handle screw (moonroof only) |
| 14 | 54519R44 | Rear assist handle spacers |
| 15 | 54519R44 | Front assist handle spacers |
