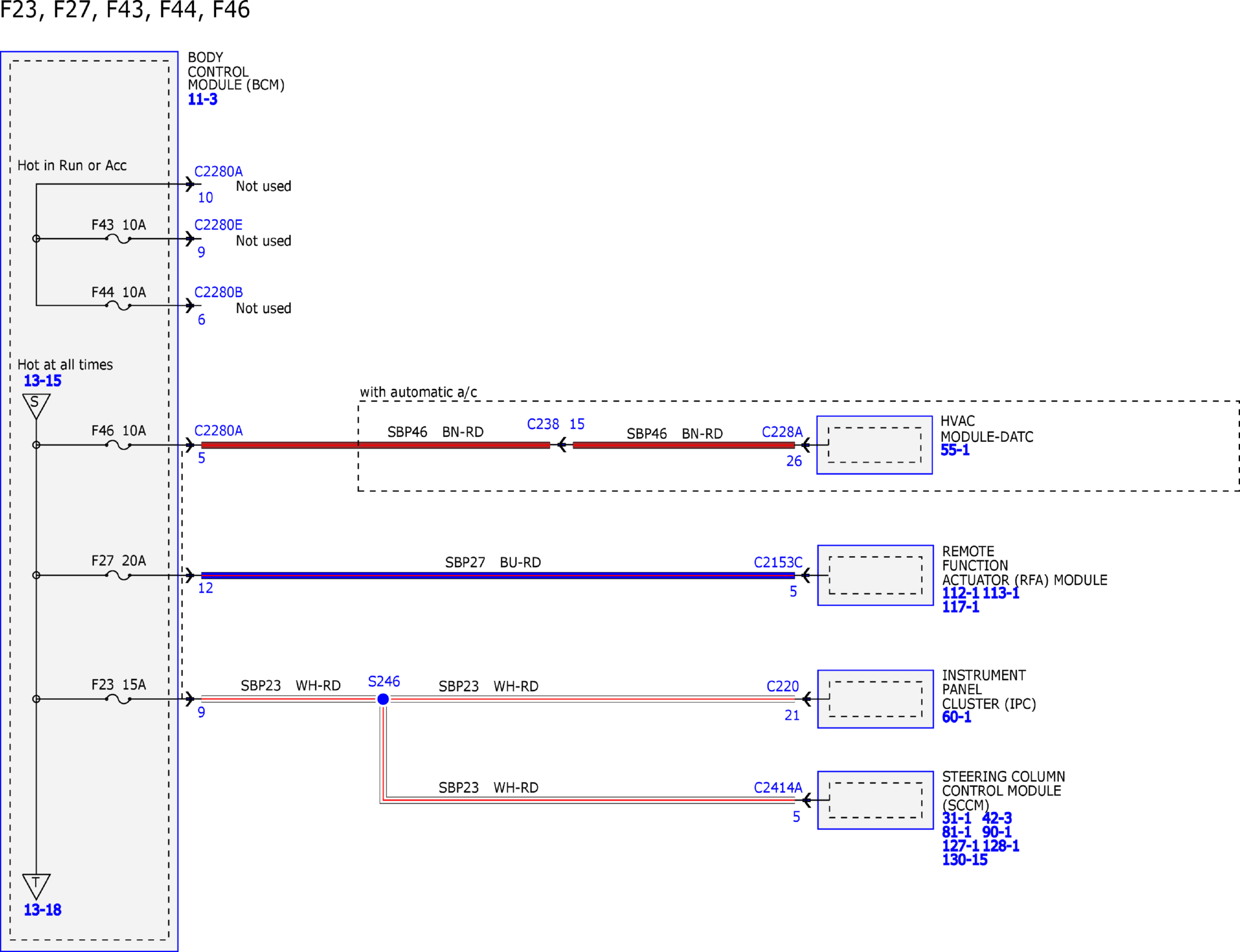

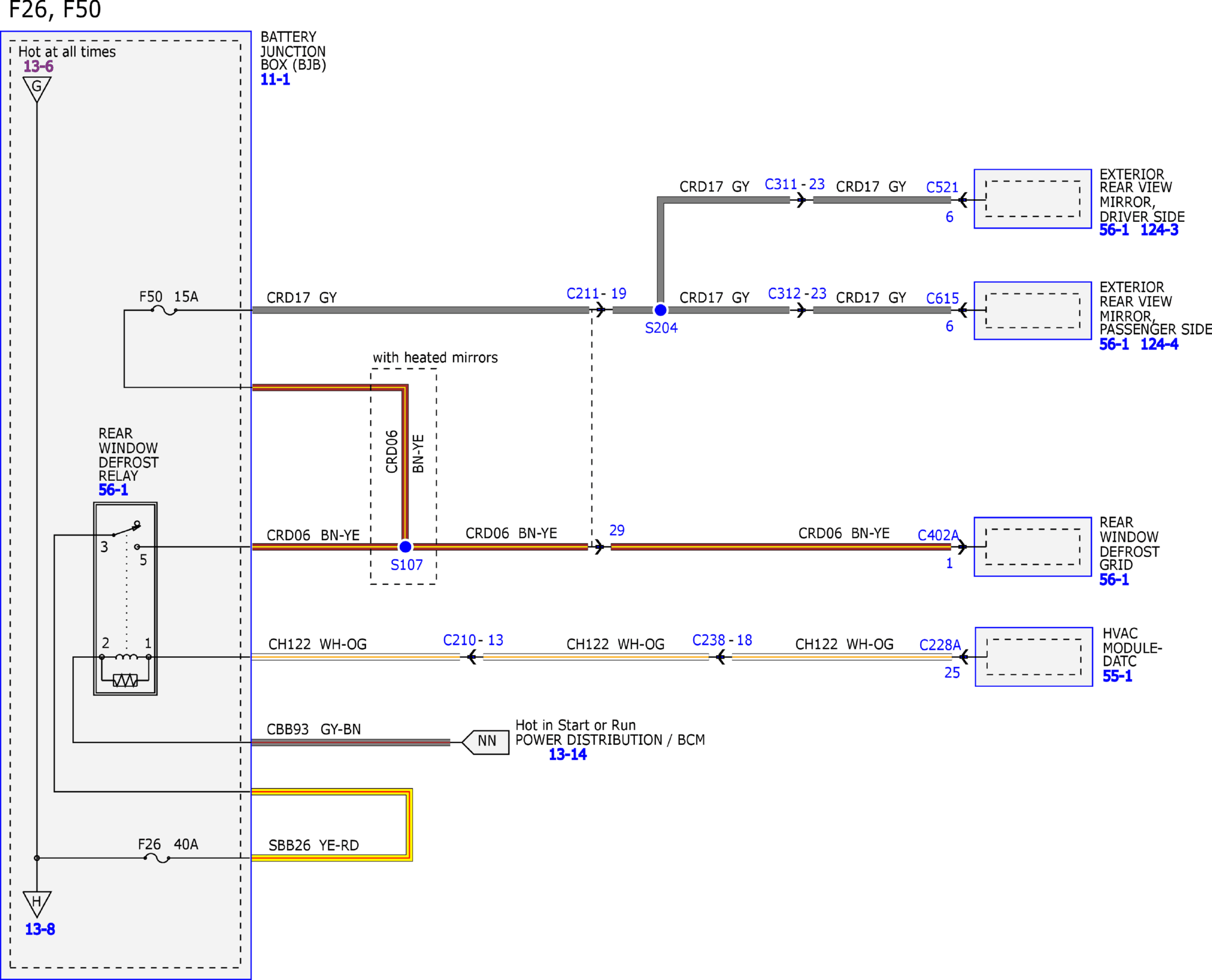

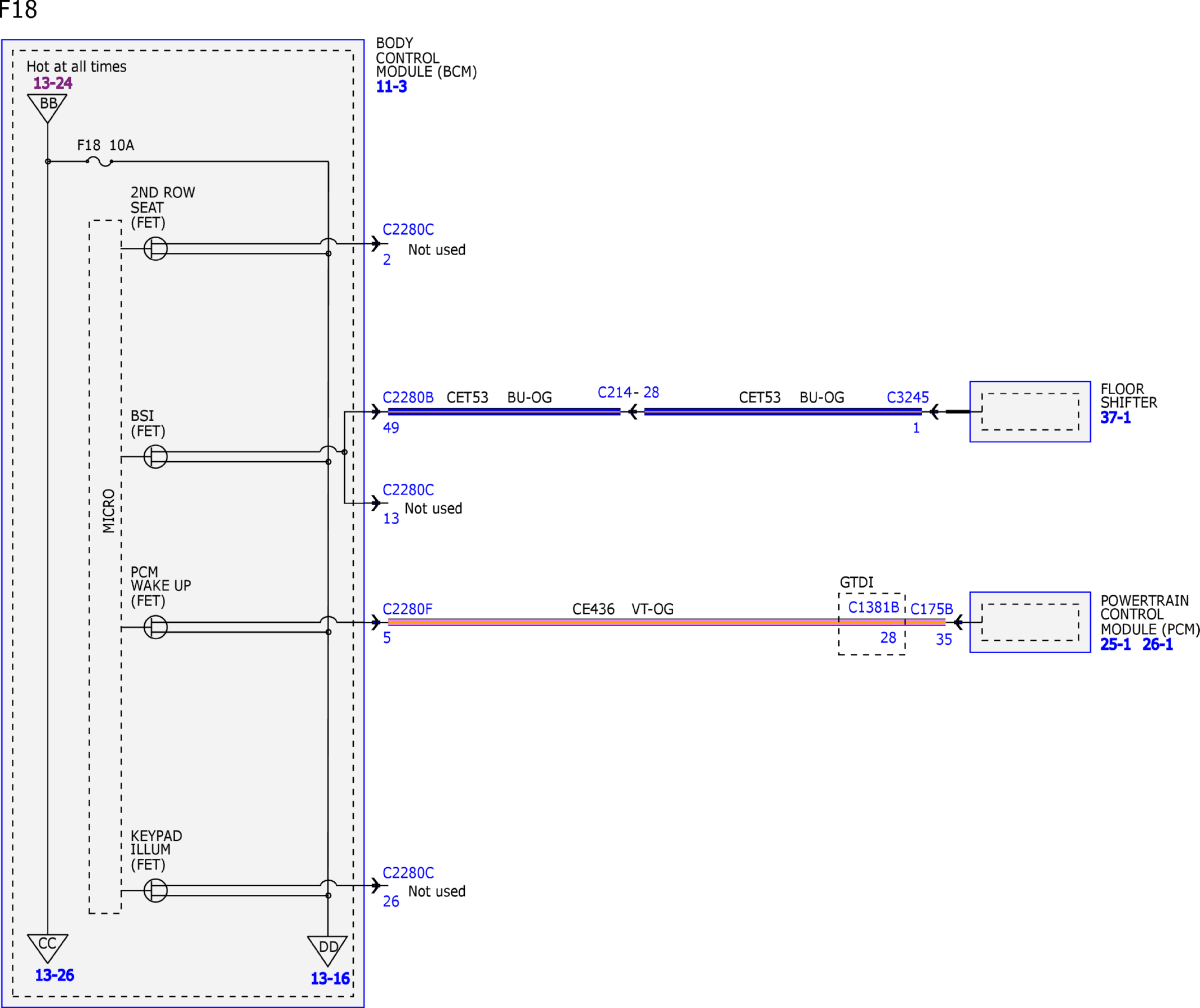

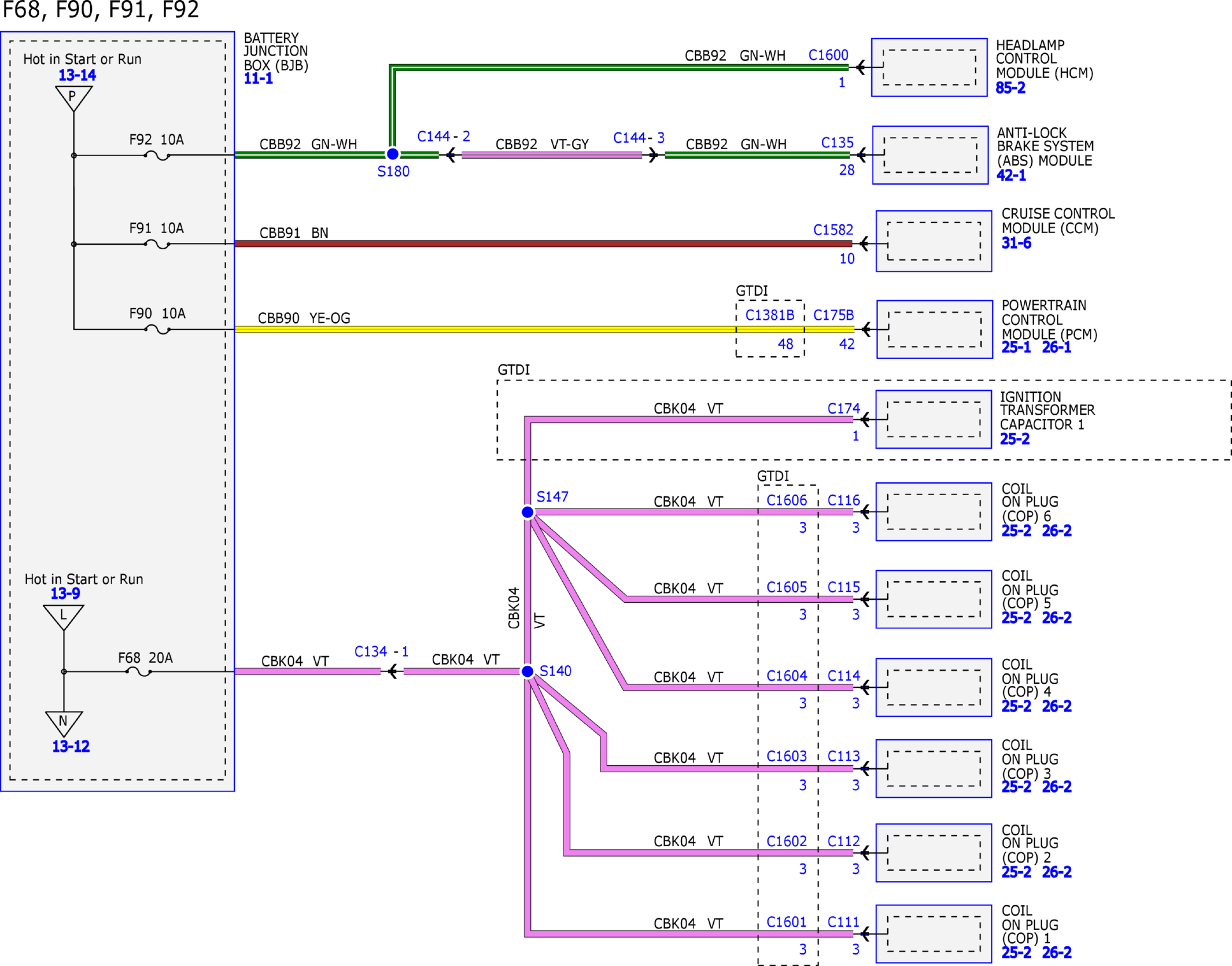

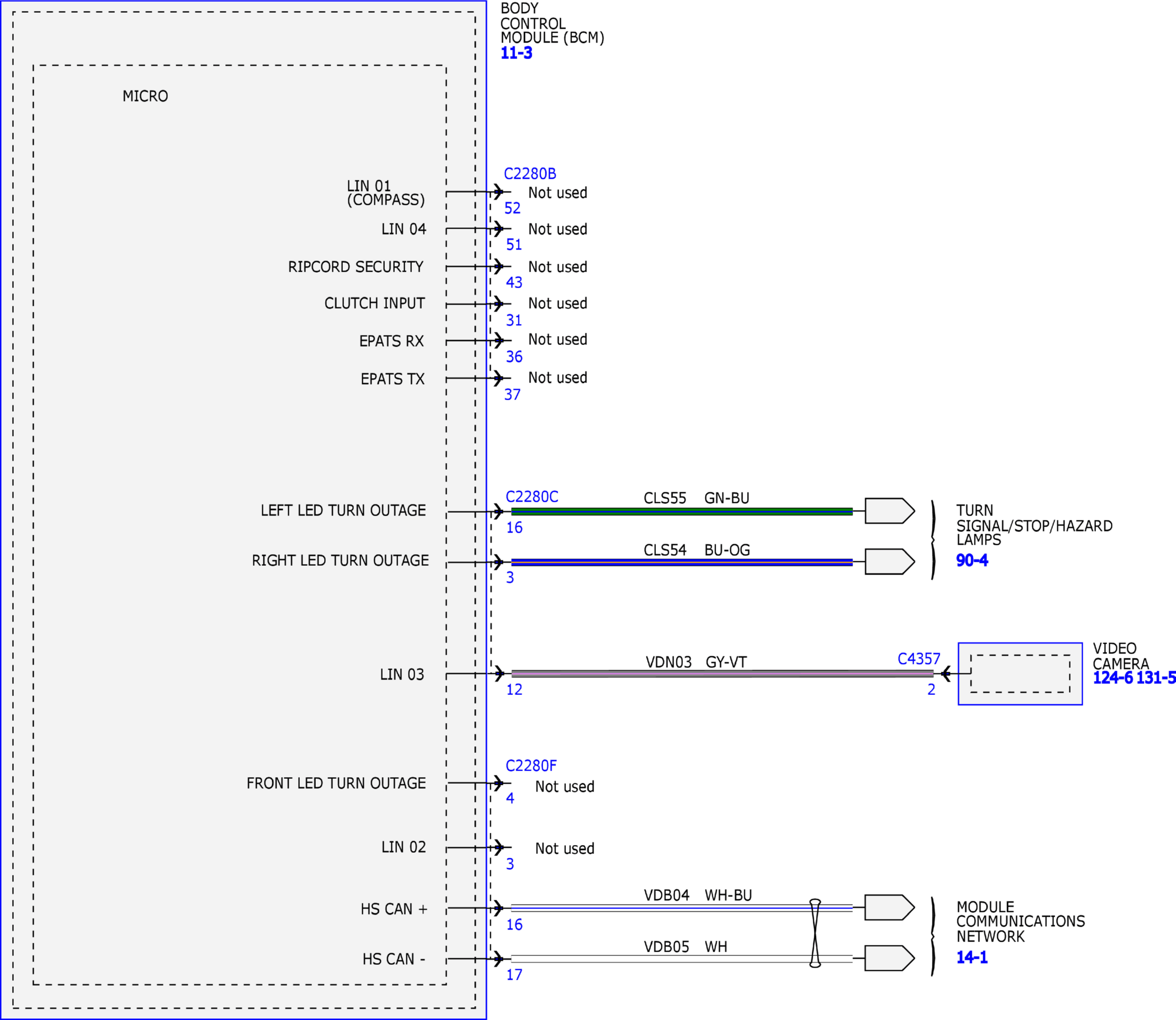

Fig 1: Power Distribution/BCM Wiring Diagram (1 of 34)
Courtesy of FORD MOTOR COMPANY

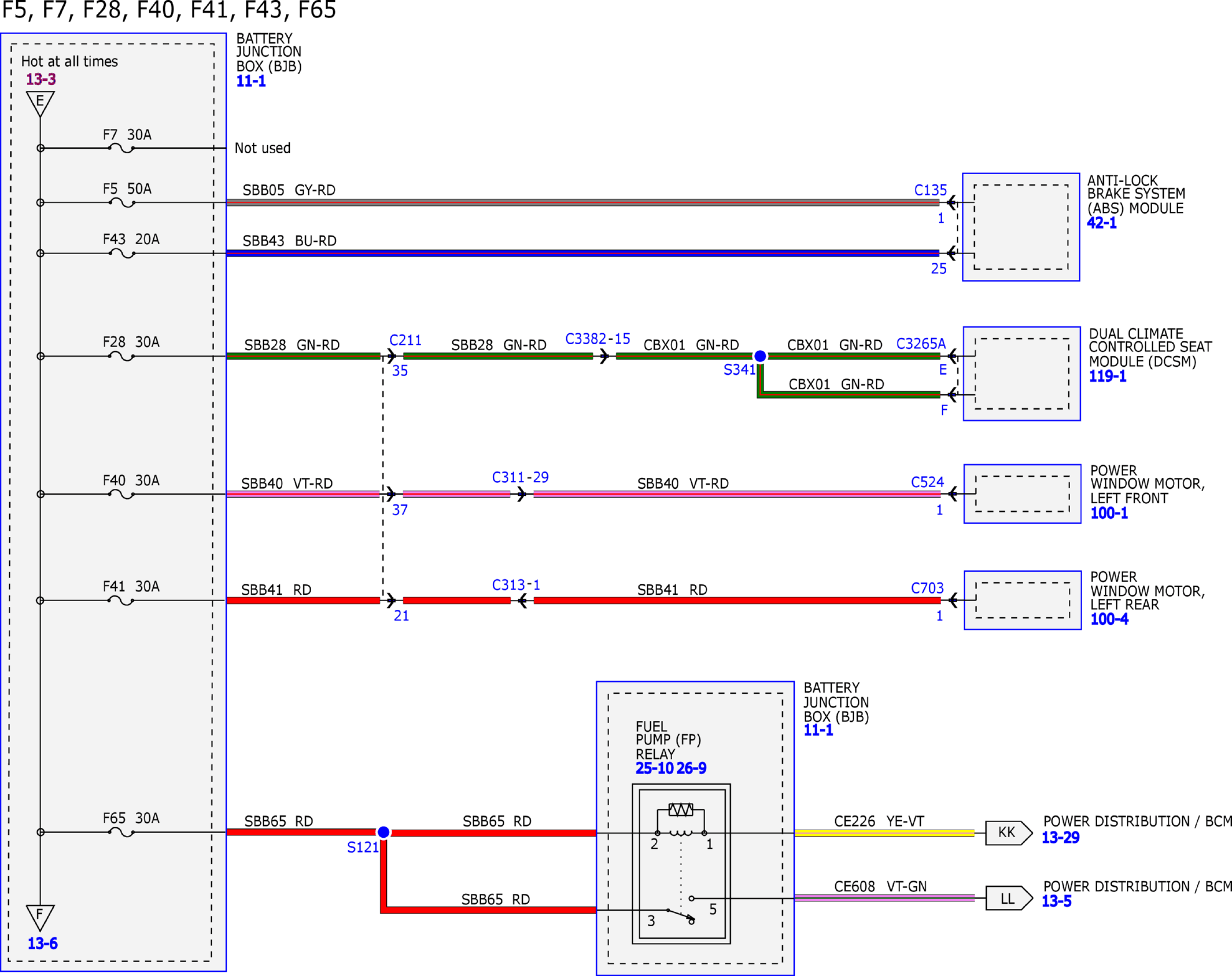

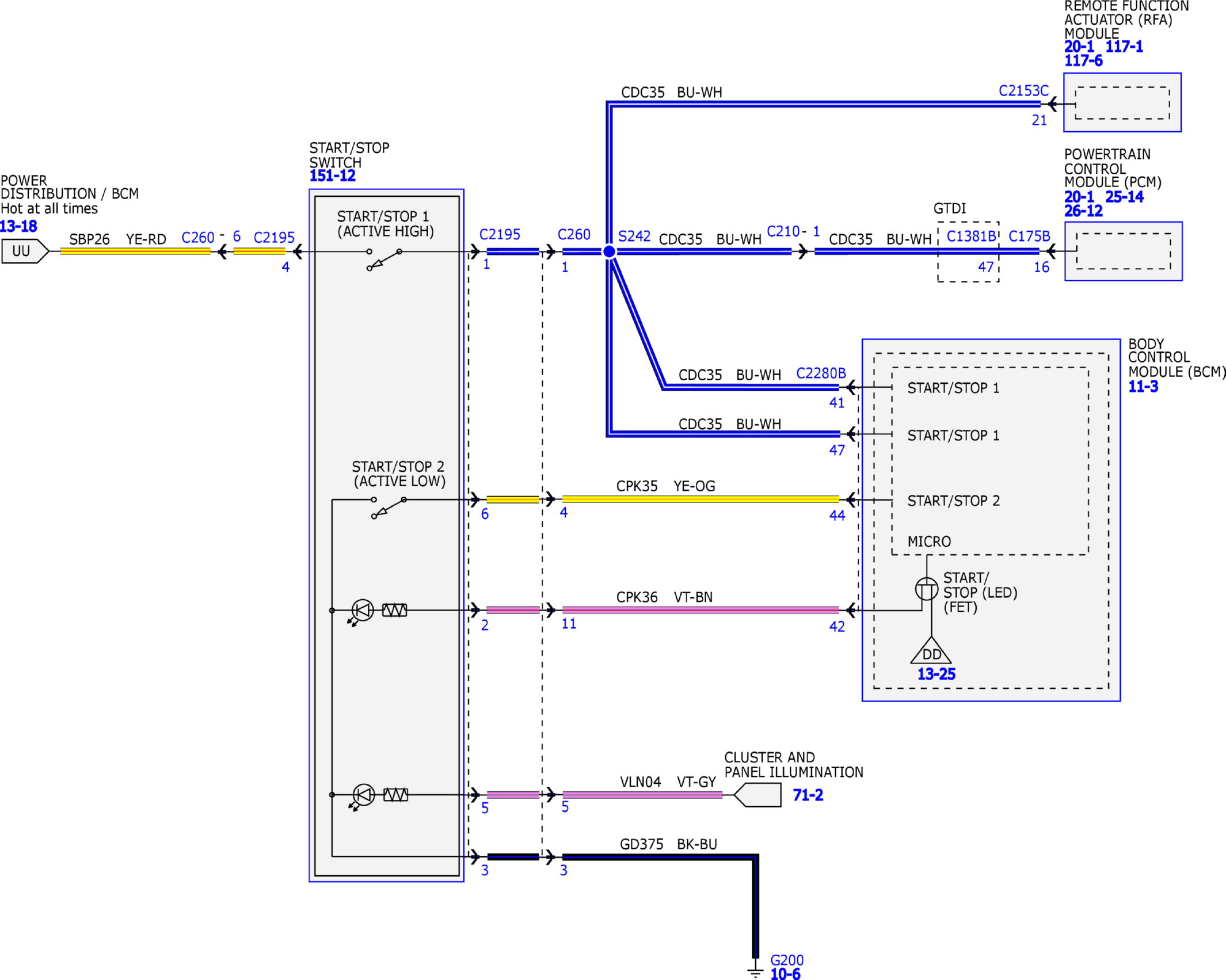

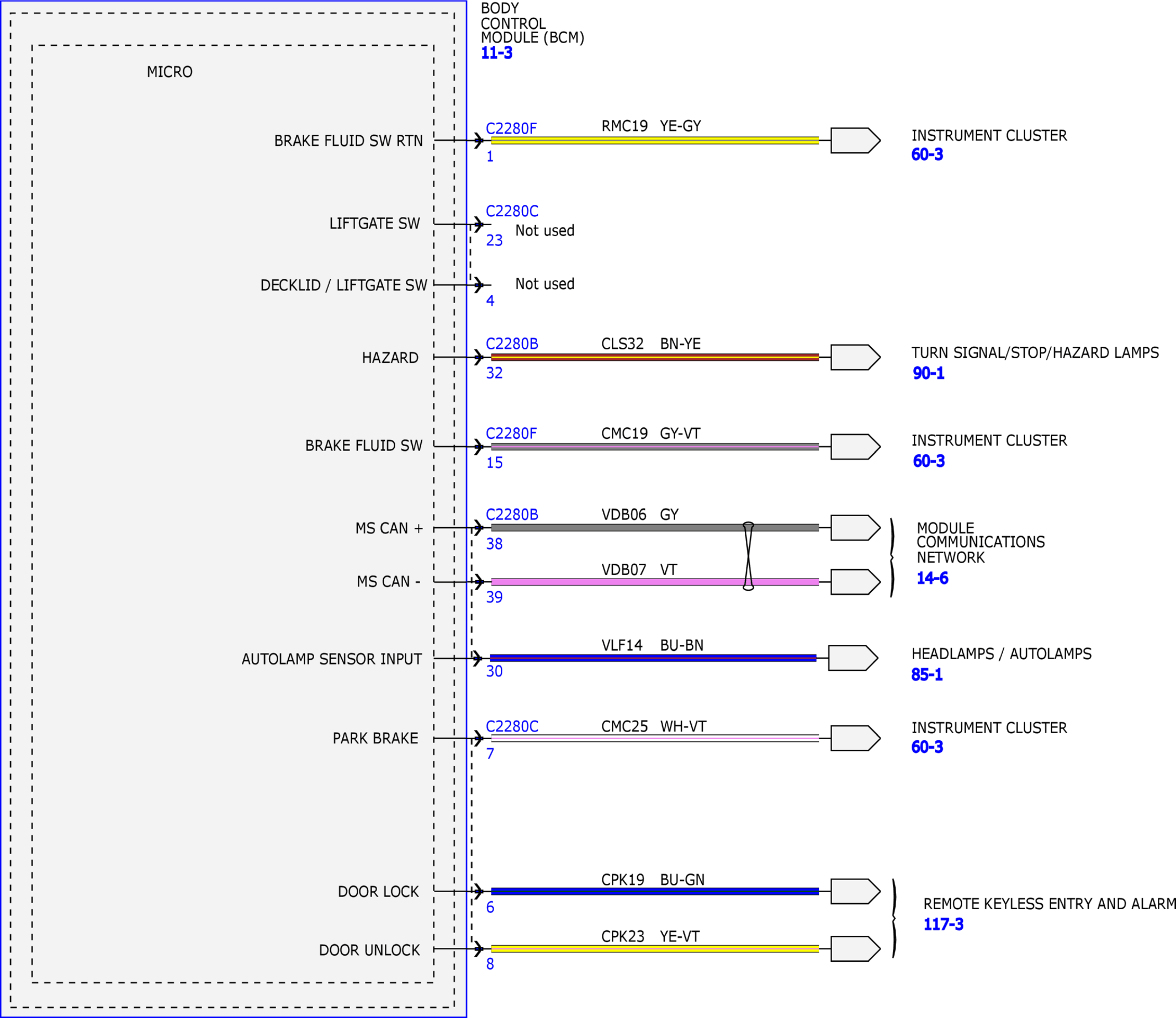

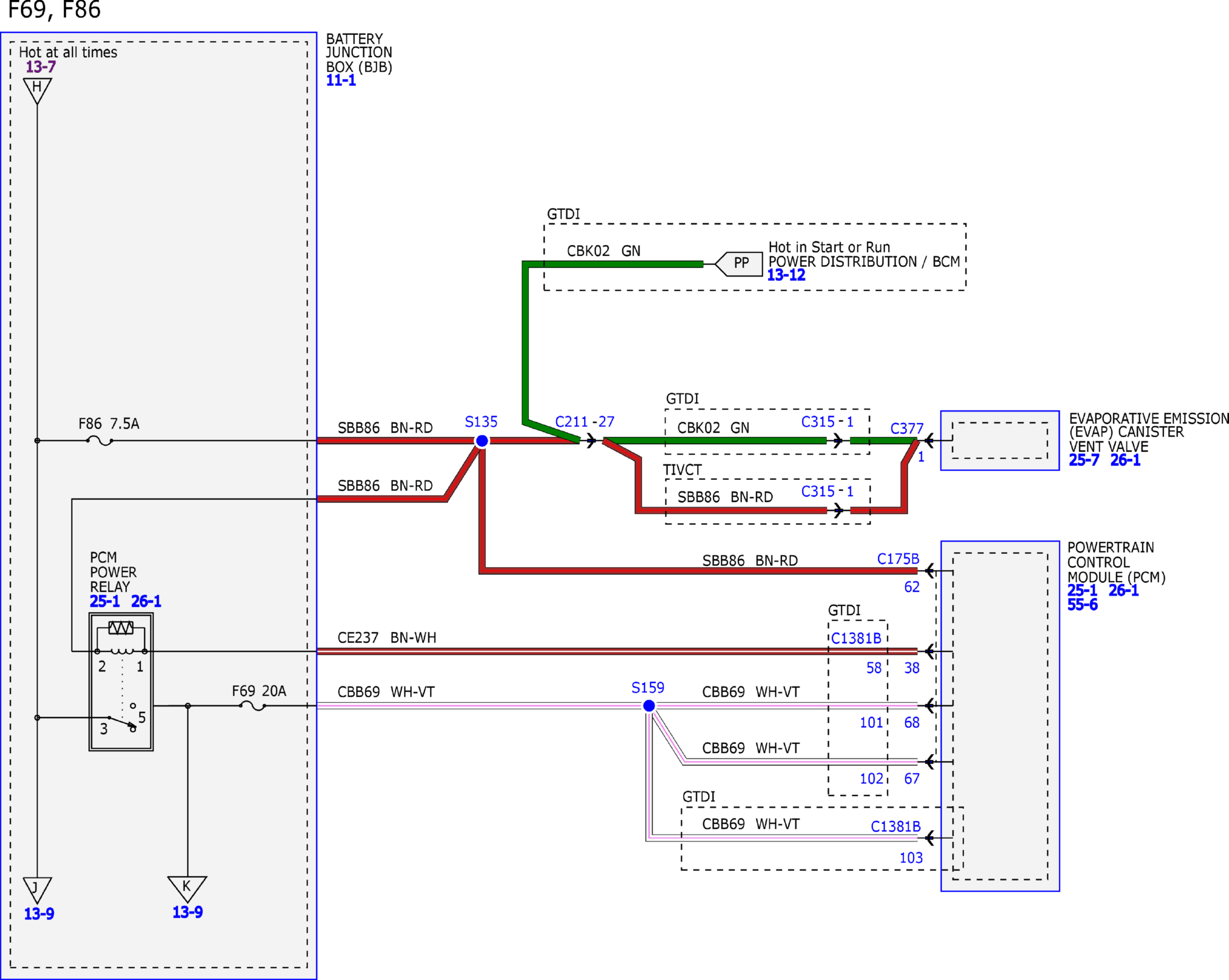

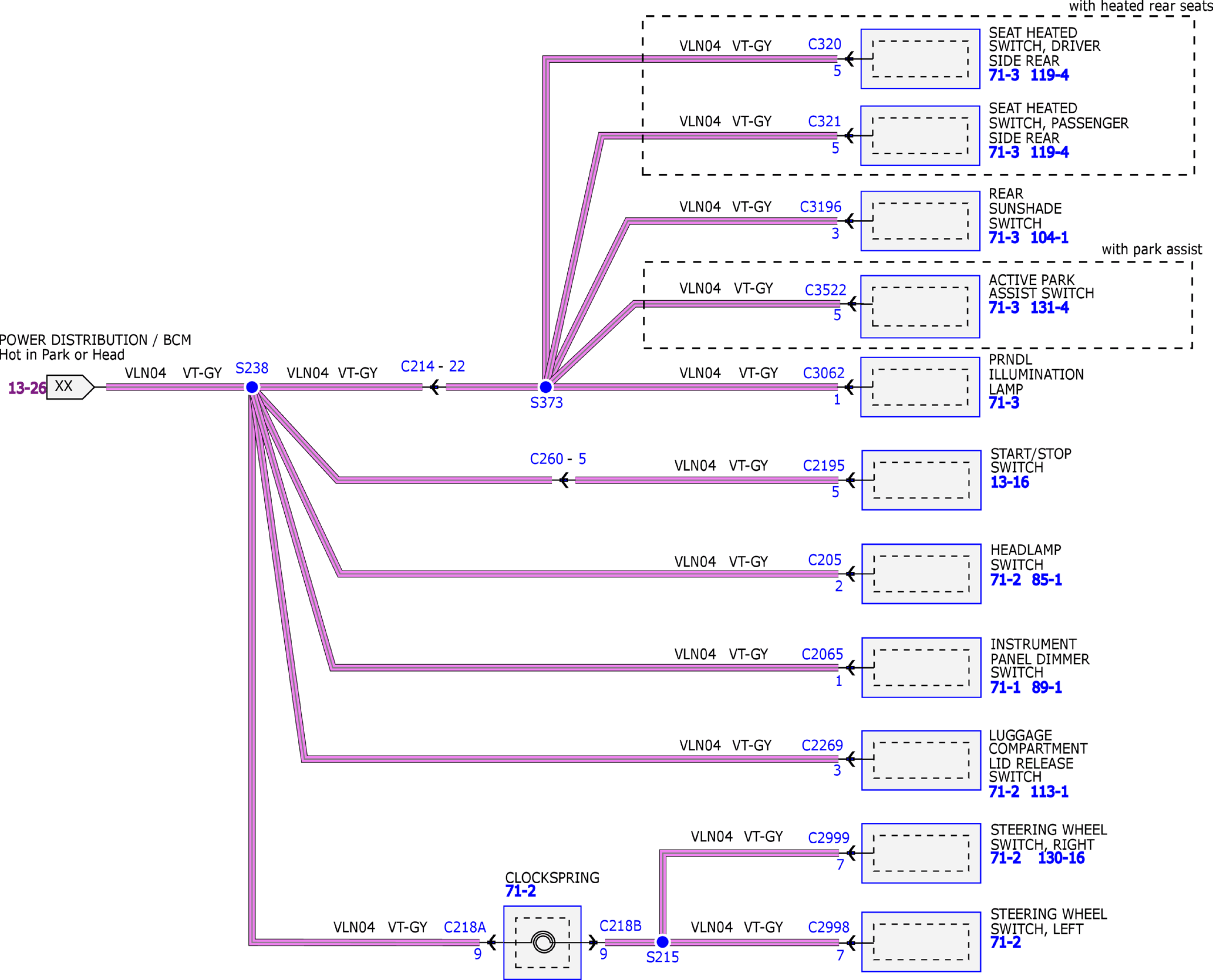

Fig 2: Power Distribution/BCM Wiring Diagram (2 of 34)
Courtesy of FORD MOTOR COMPANY

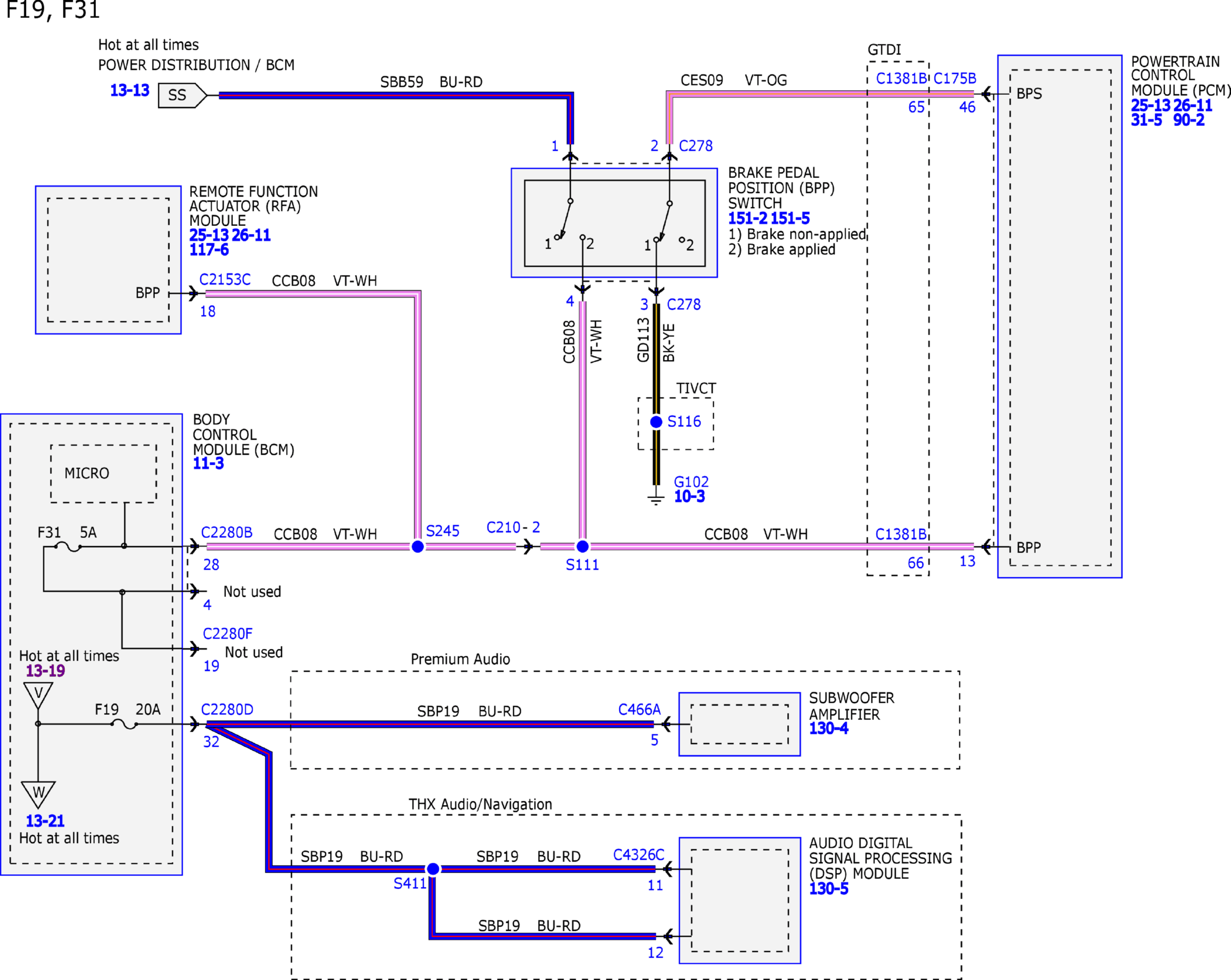

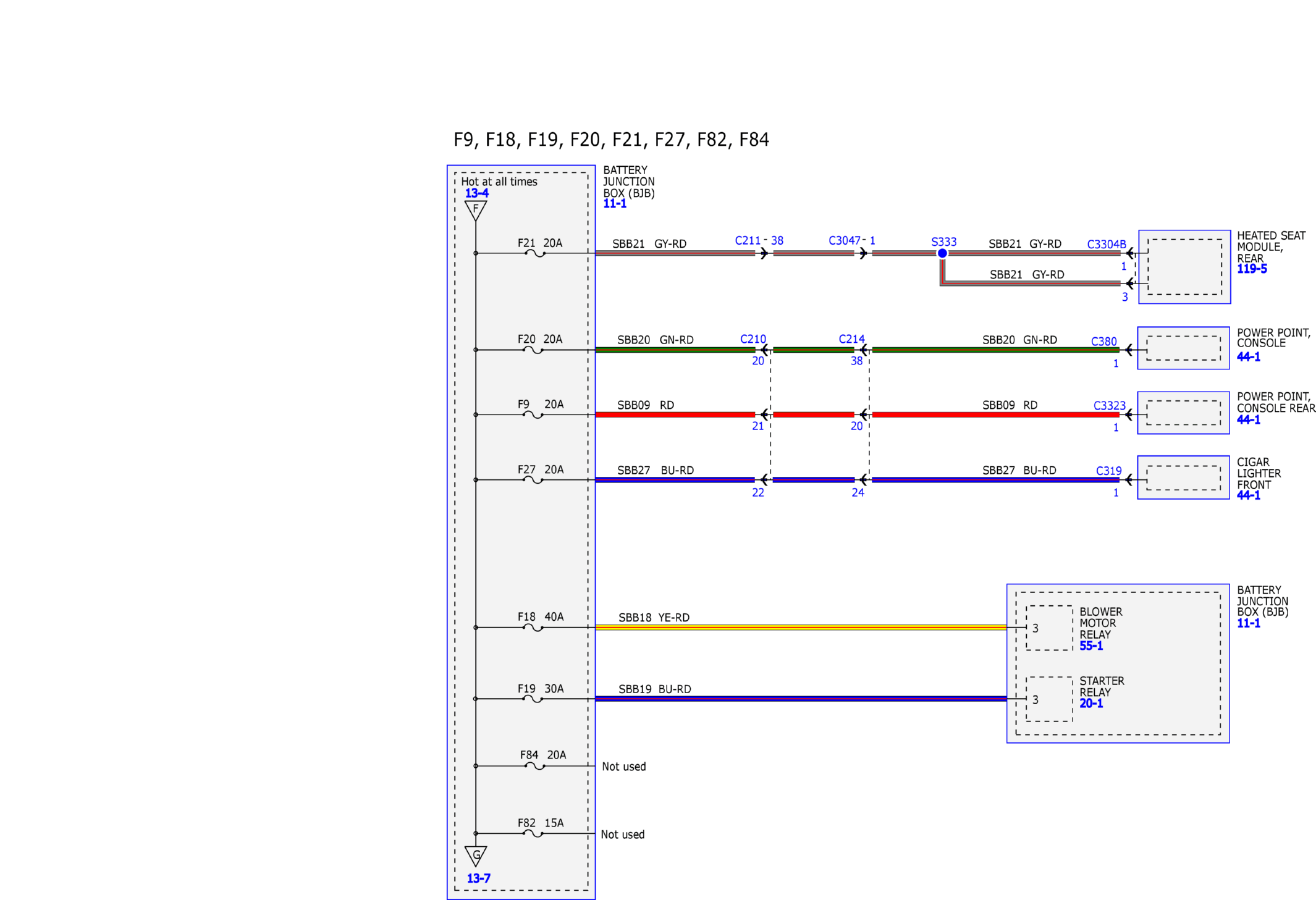

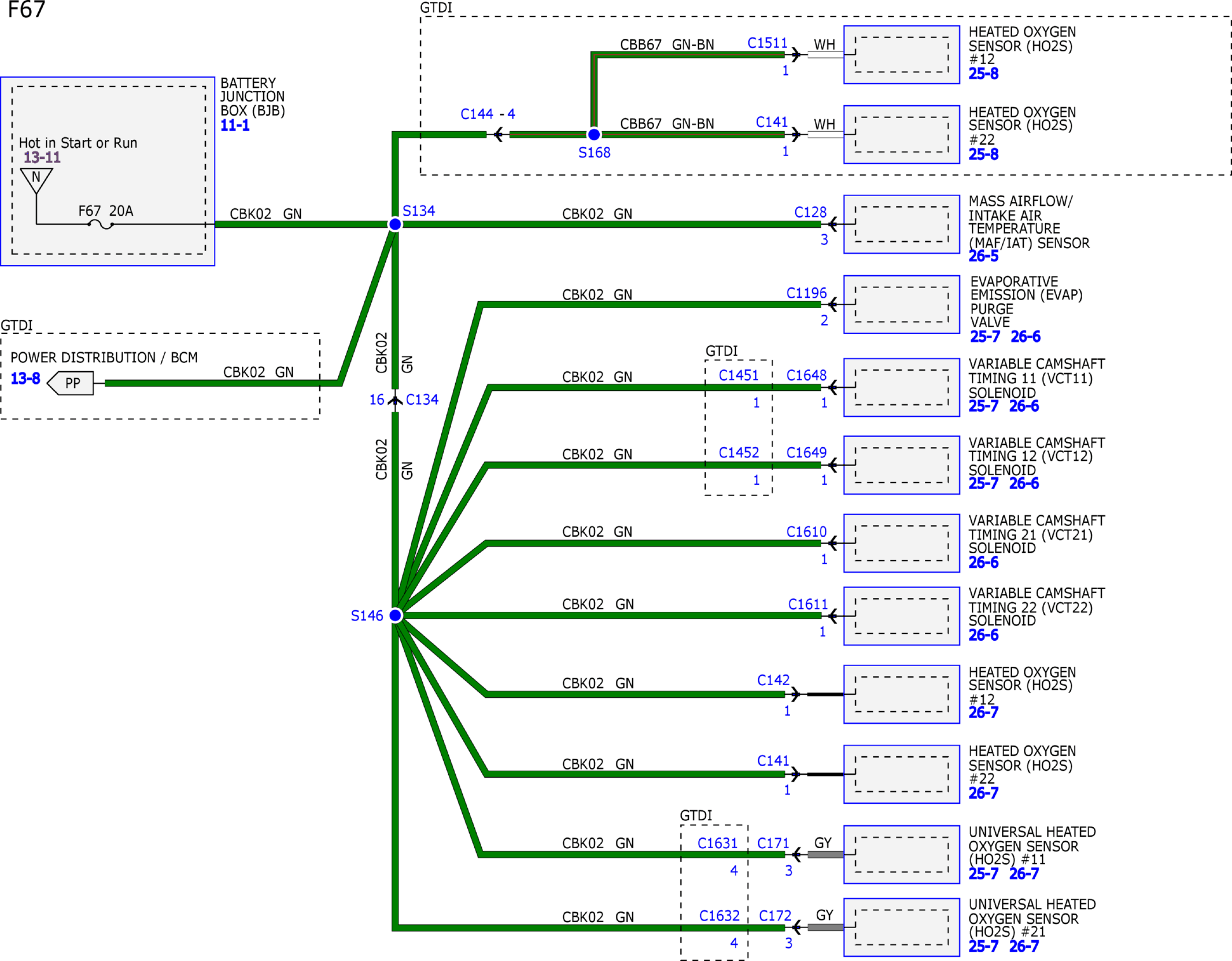

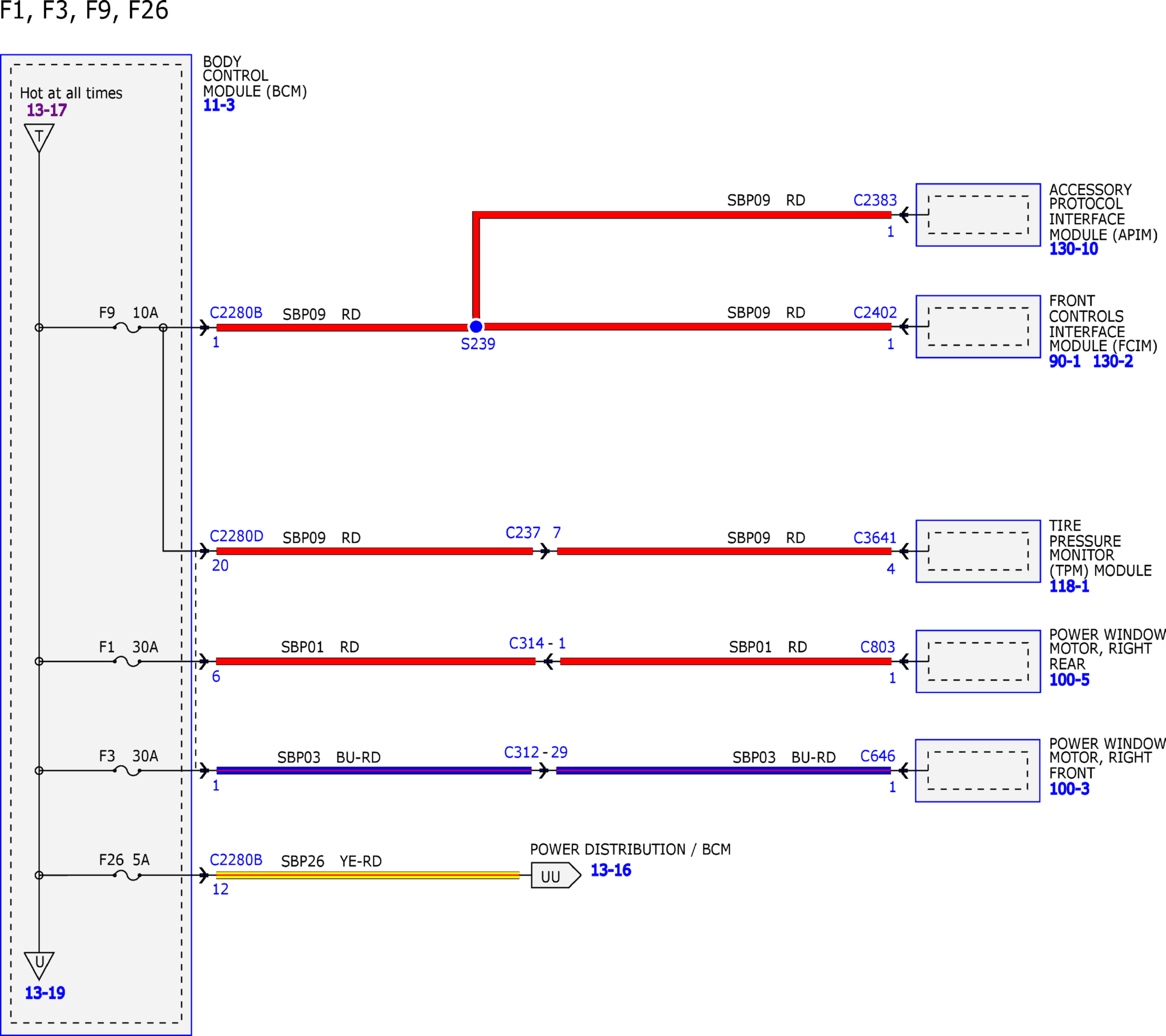

Fig 3: Power Distribution/BCM Wiring Diagram (3 of 34)
Courtesy of FORD MOTOR COMPANY

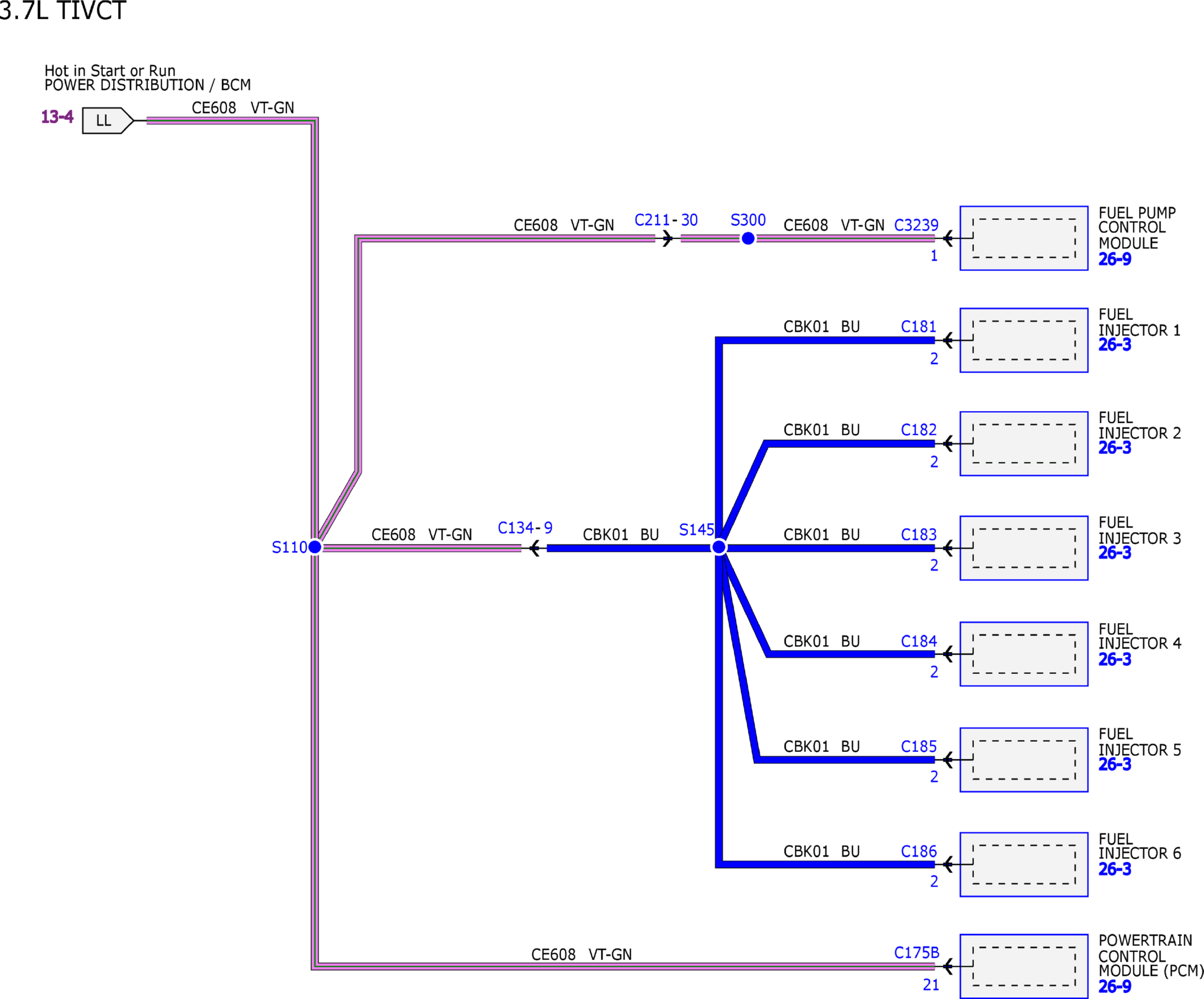

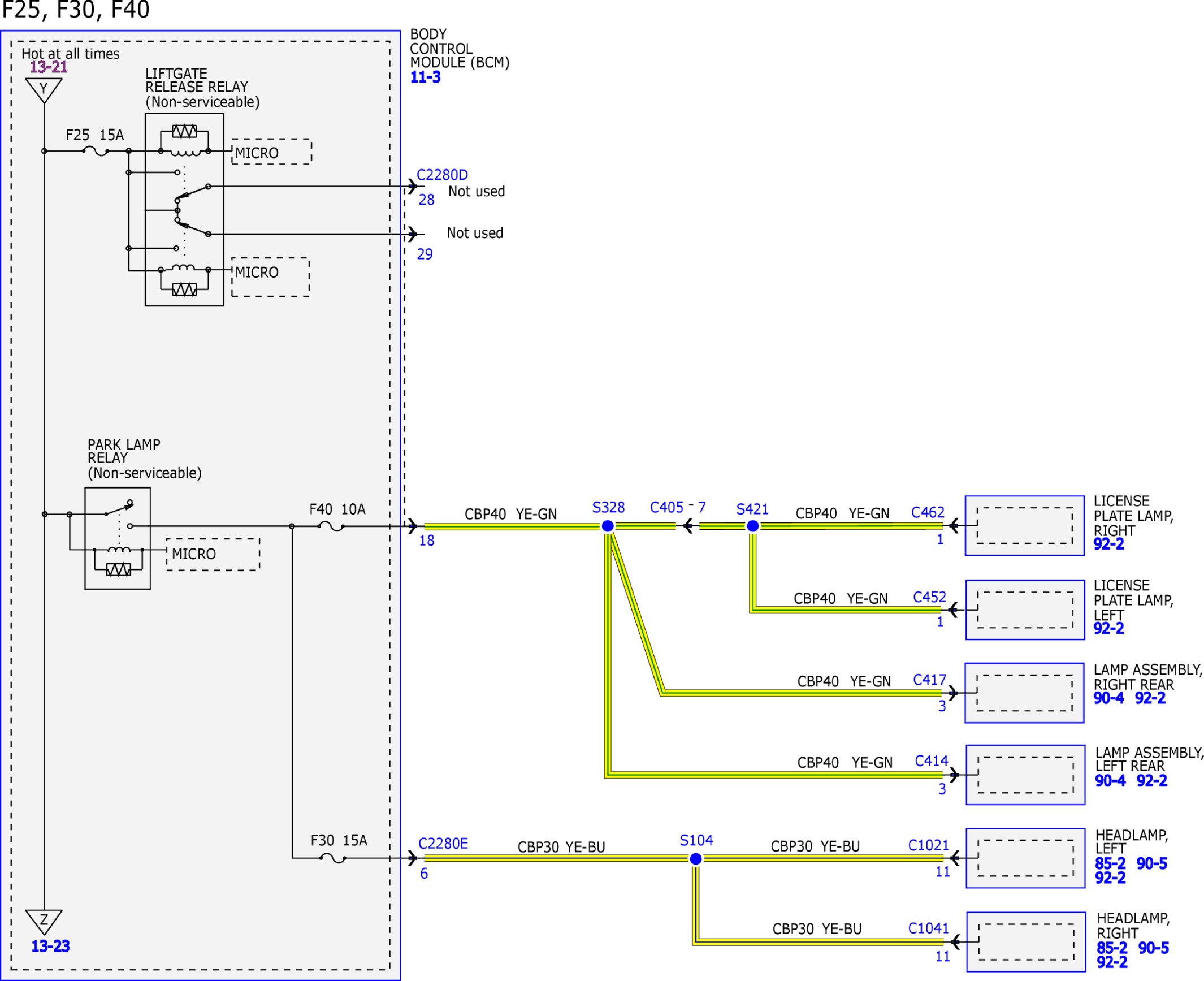

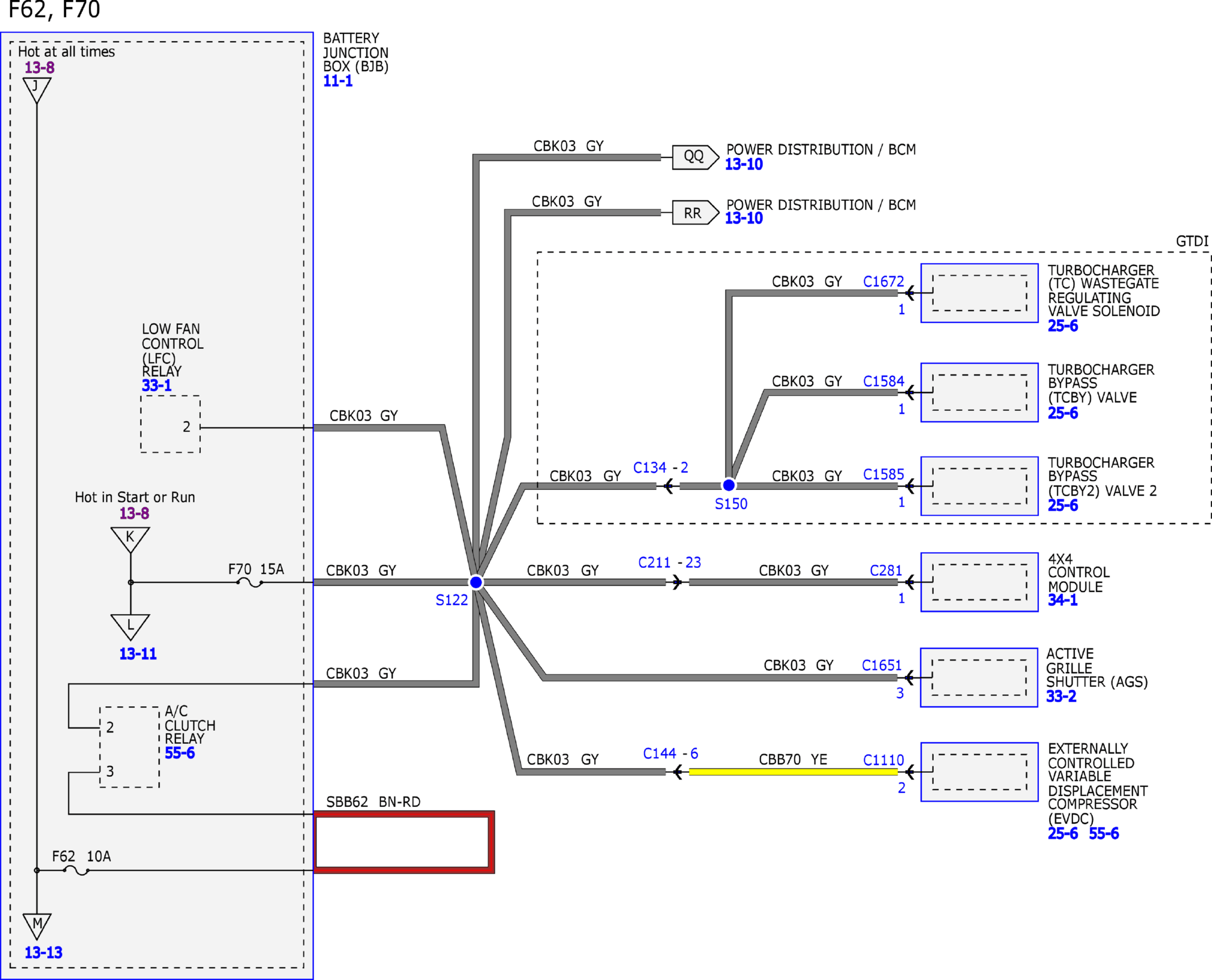

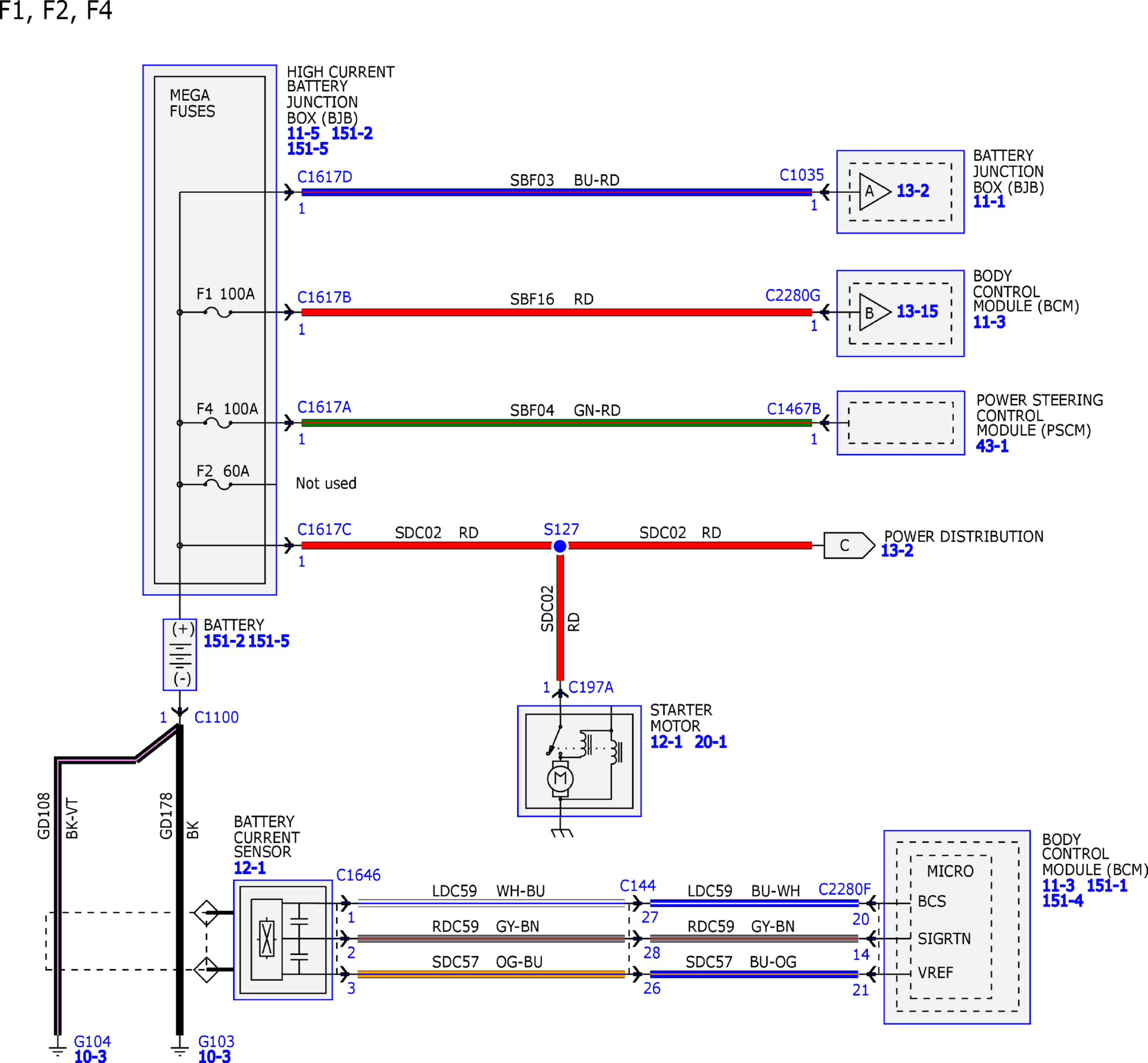

Fig 4: Power Distribution/BCM Wiring Diagram (4 of 34)
Courtesy of FORD MOTOR COMPANY

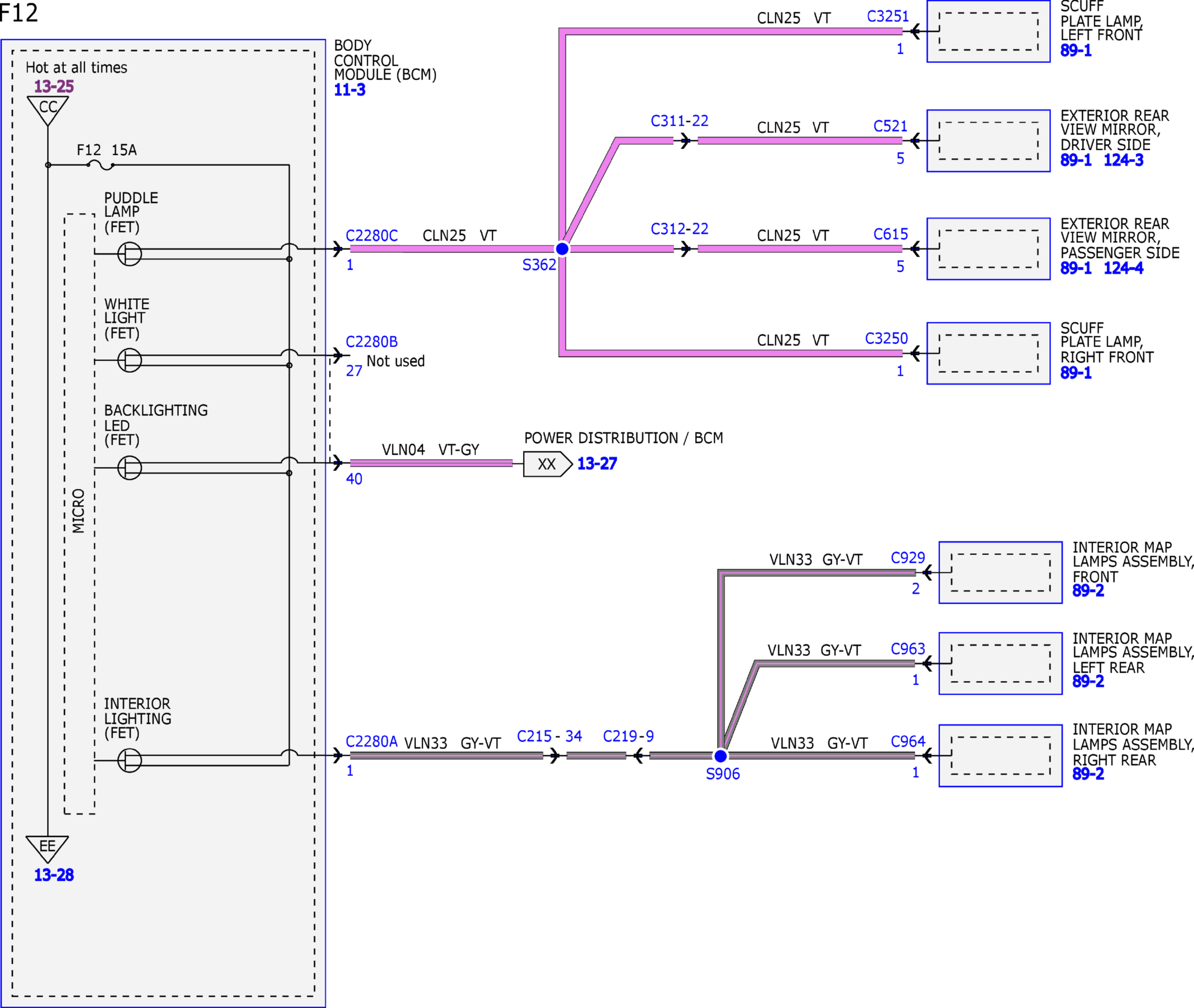

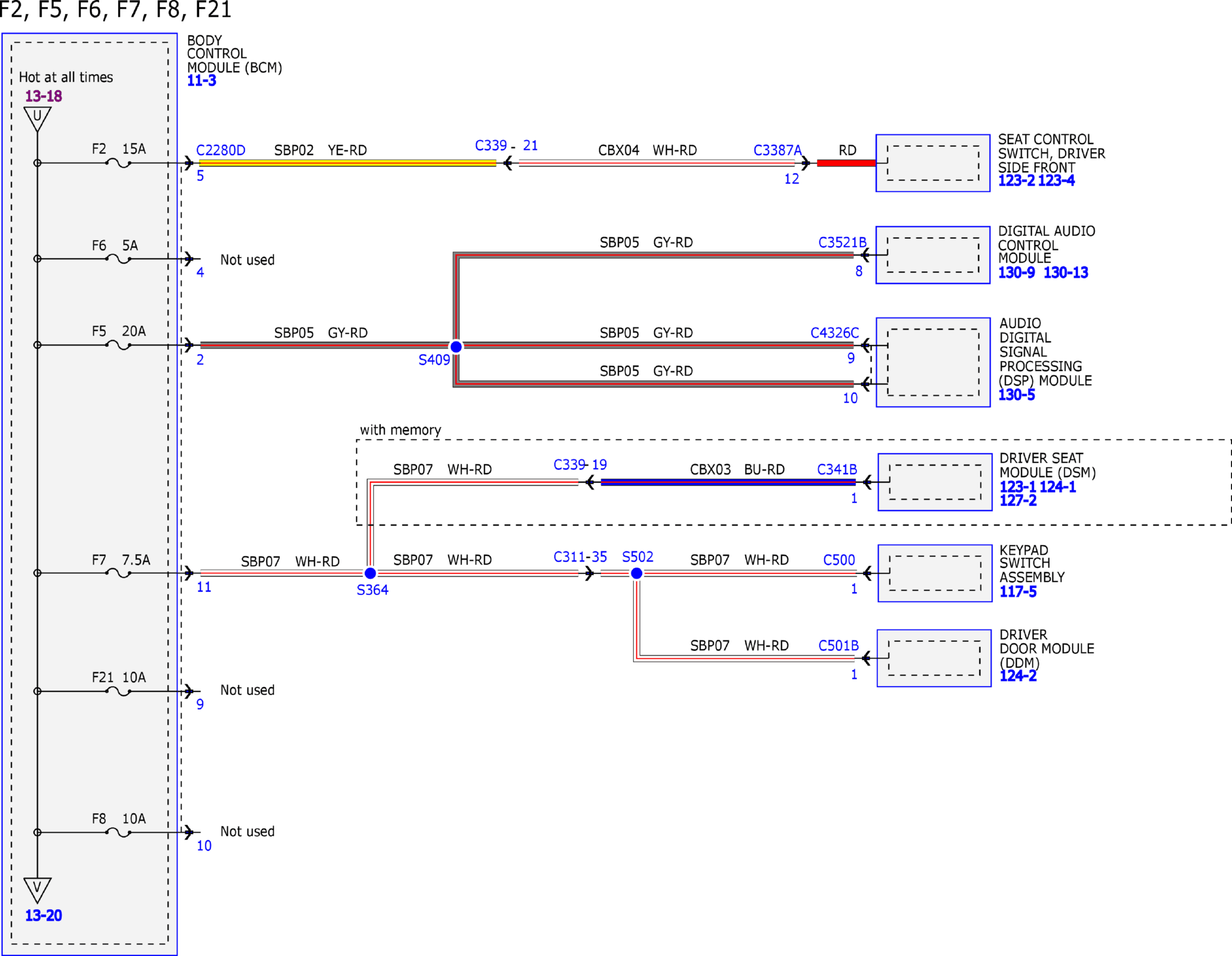

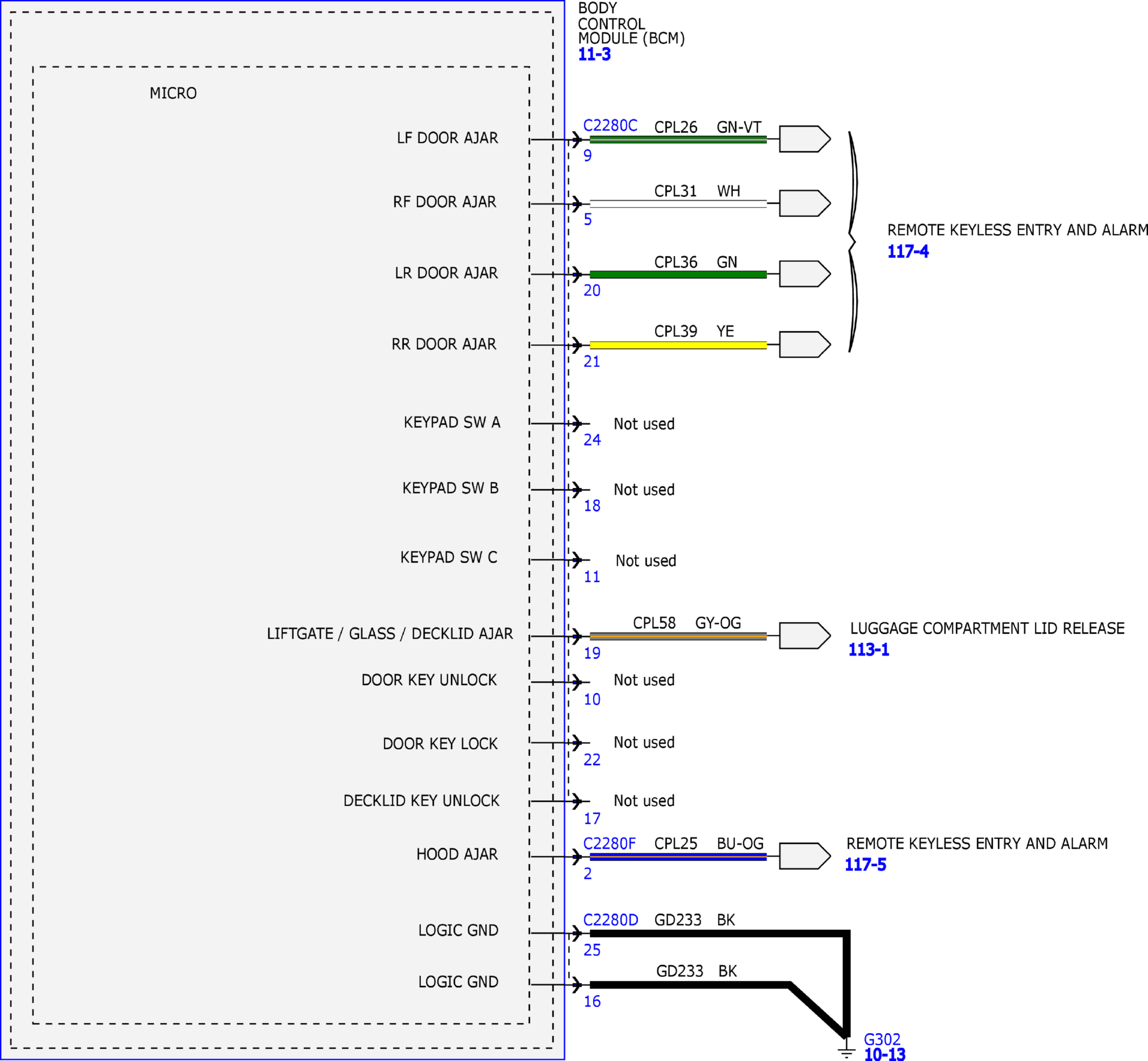

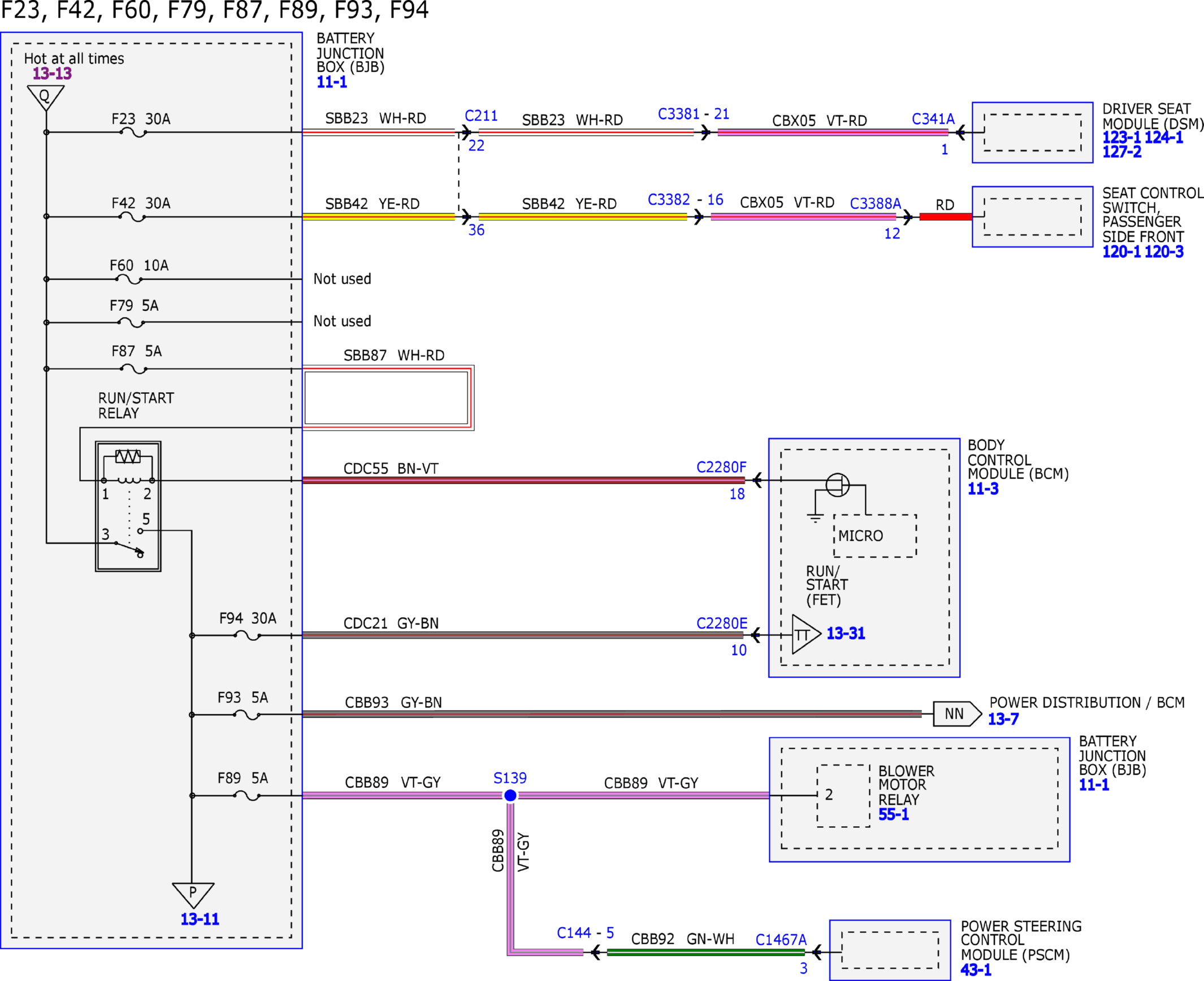

Fig 5: Power Distribution/BCM Wiring Diagram (5 of 34)
Courtesy of FORD MOTOR COMPANY

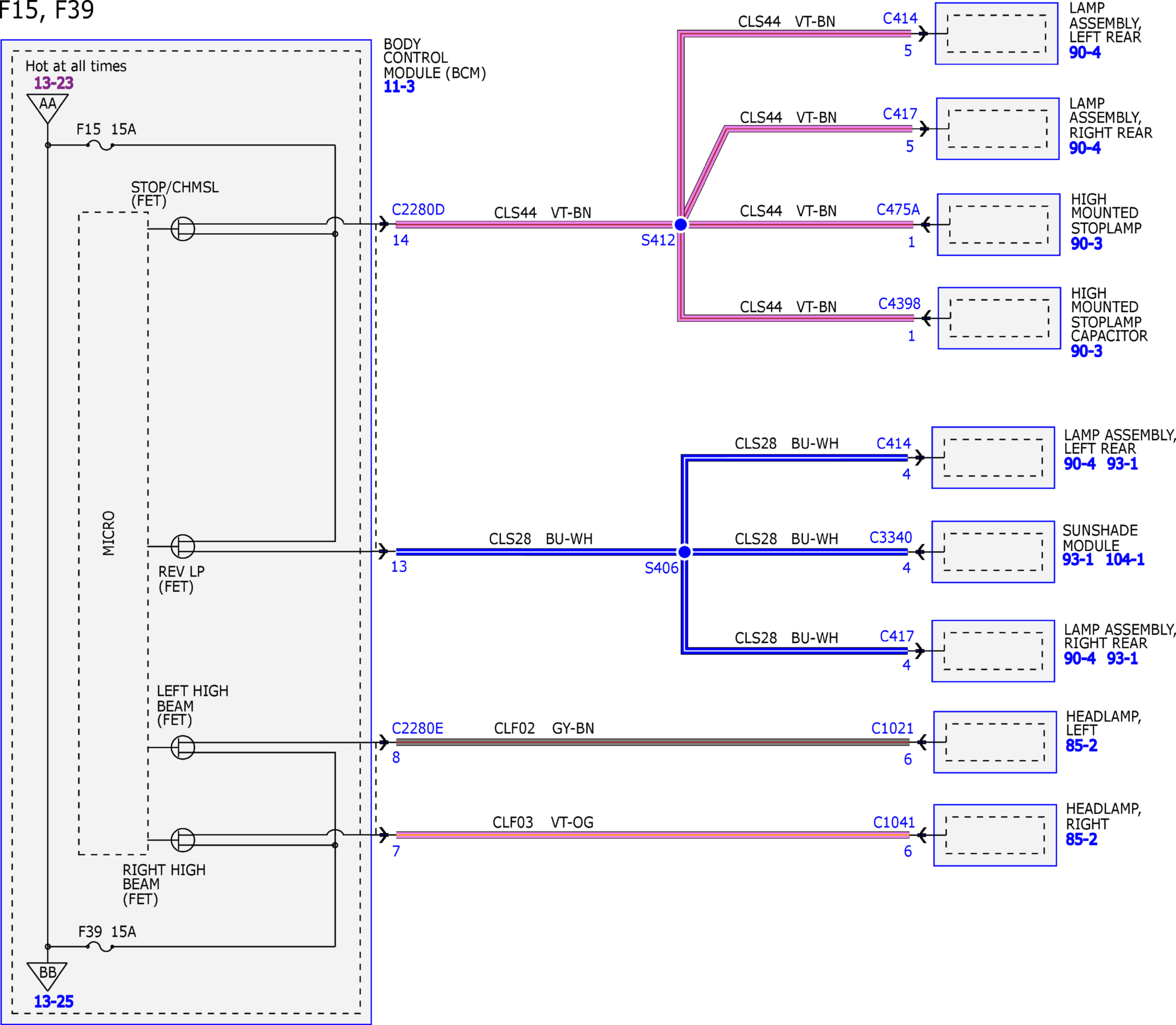

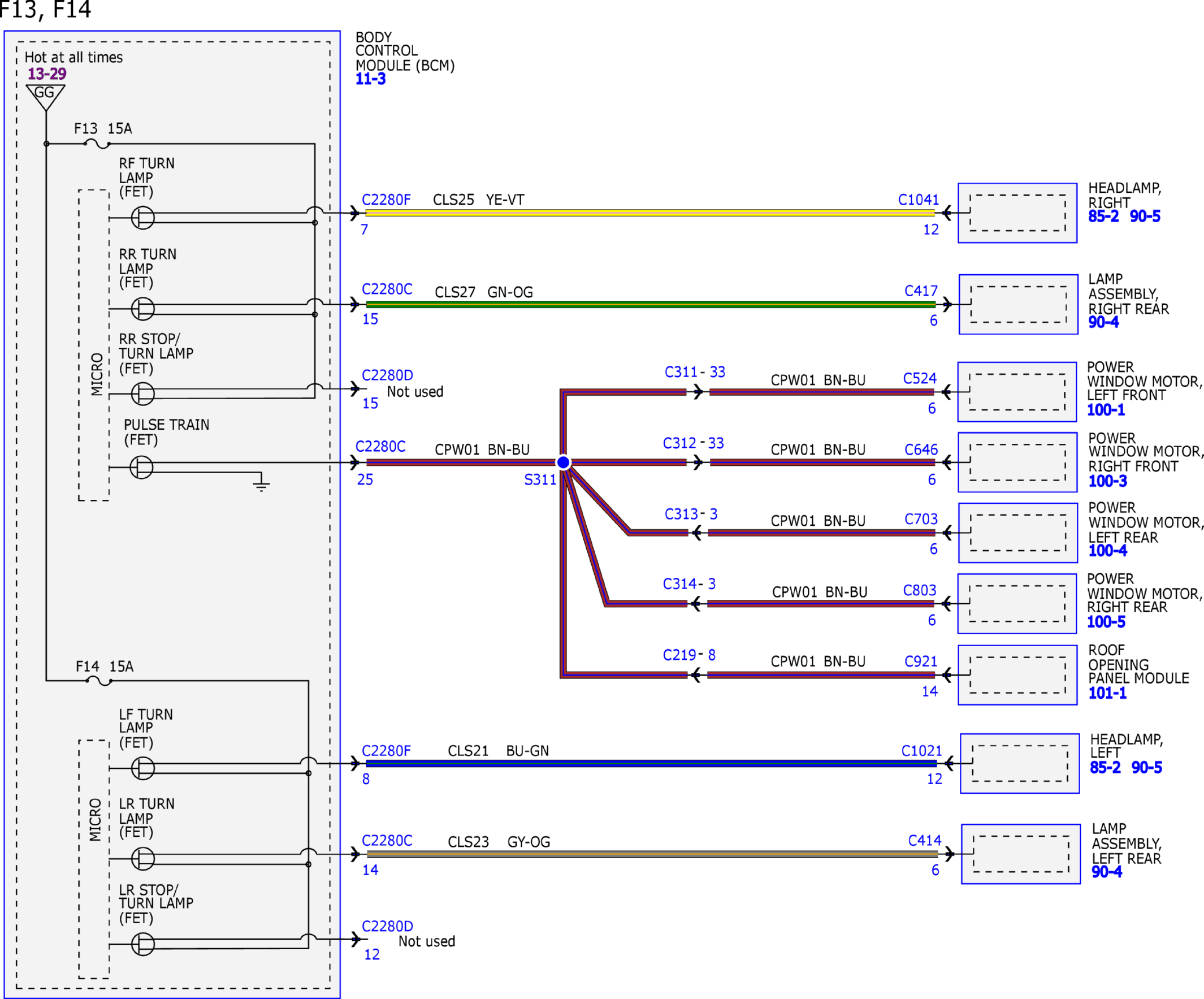

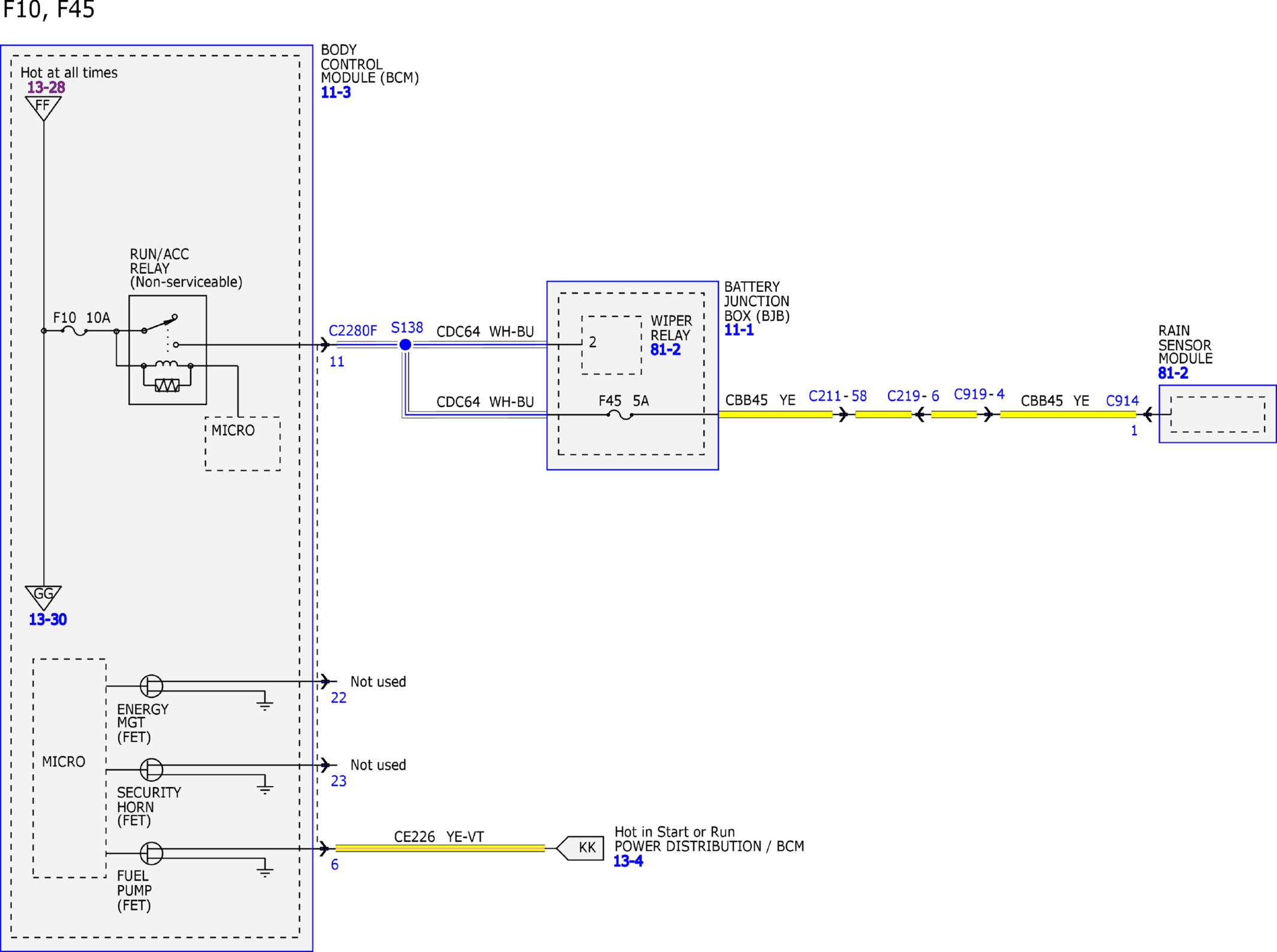

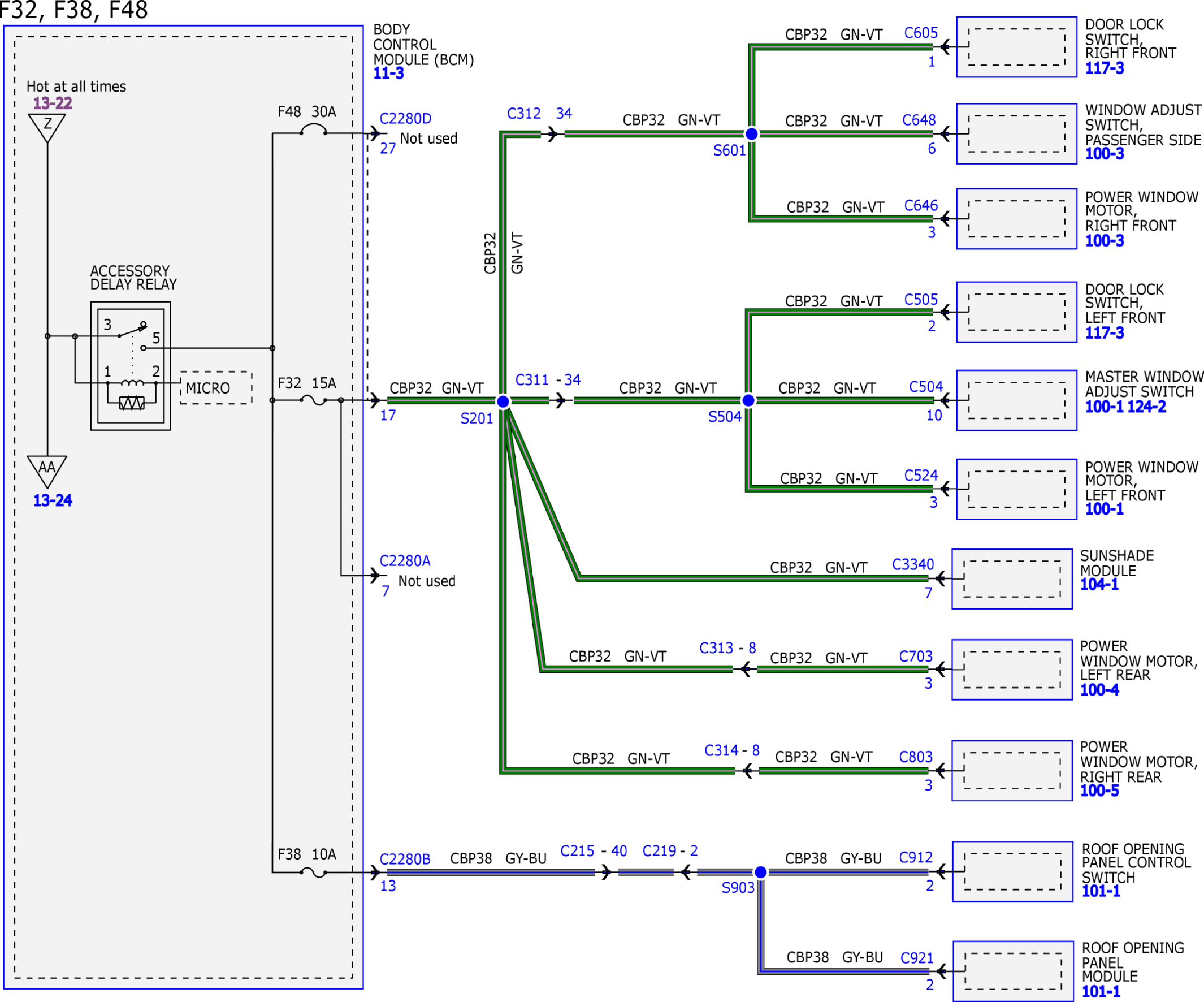

Fig 6: Power Distribution/BCM Wiring Diagram (6 of 34)
Courtesy of FORD MOTOR COMPANY

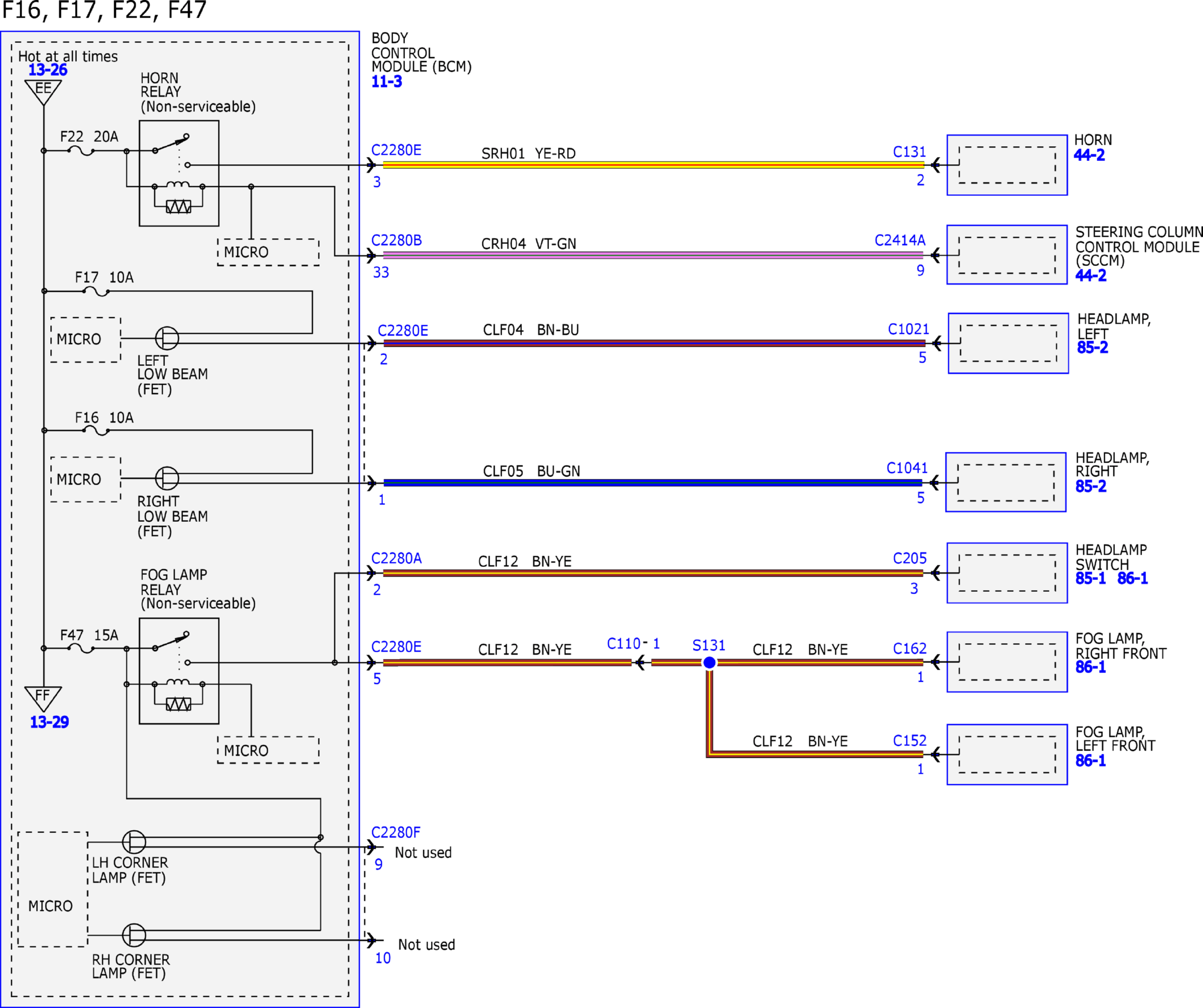

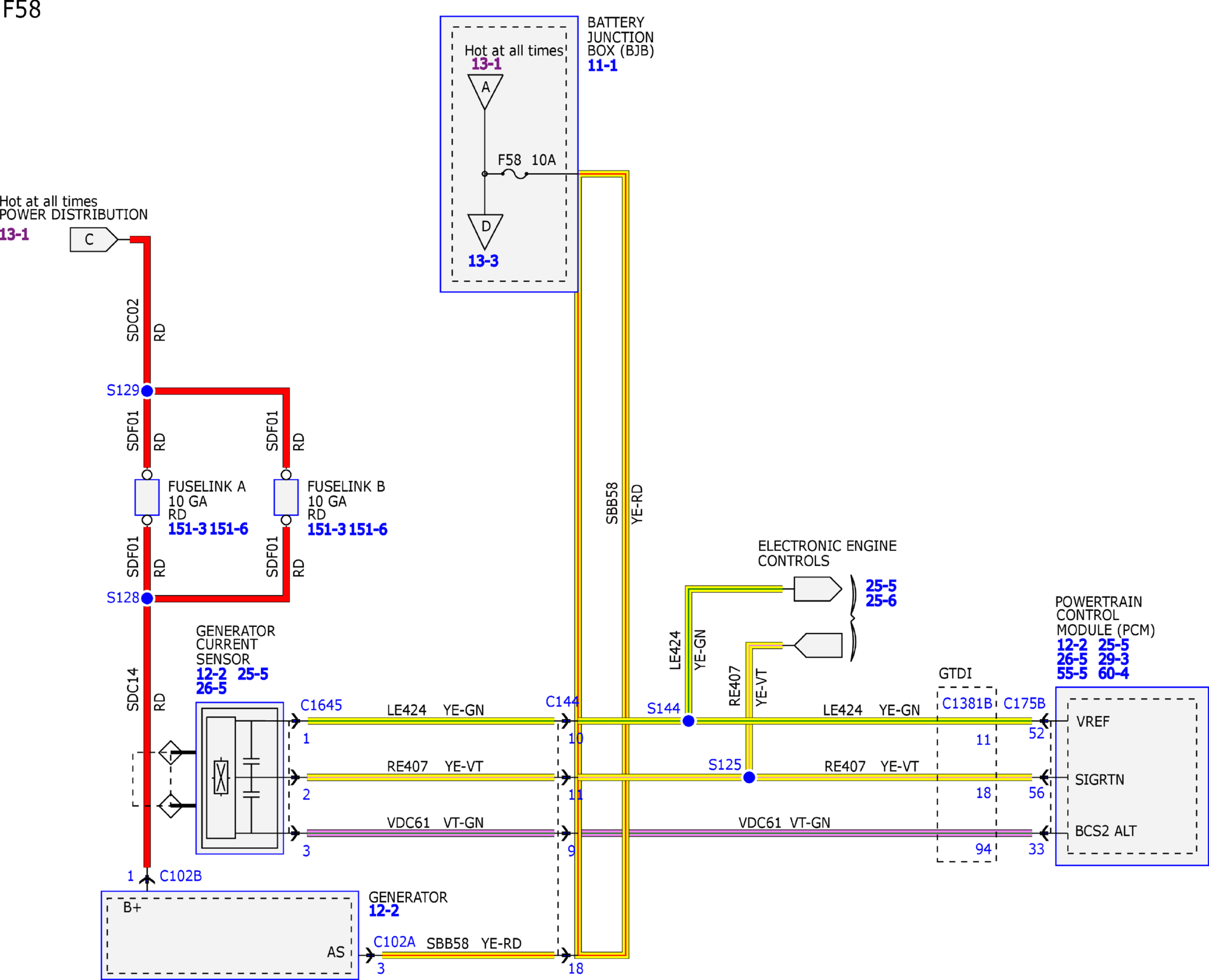

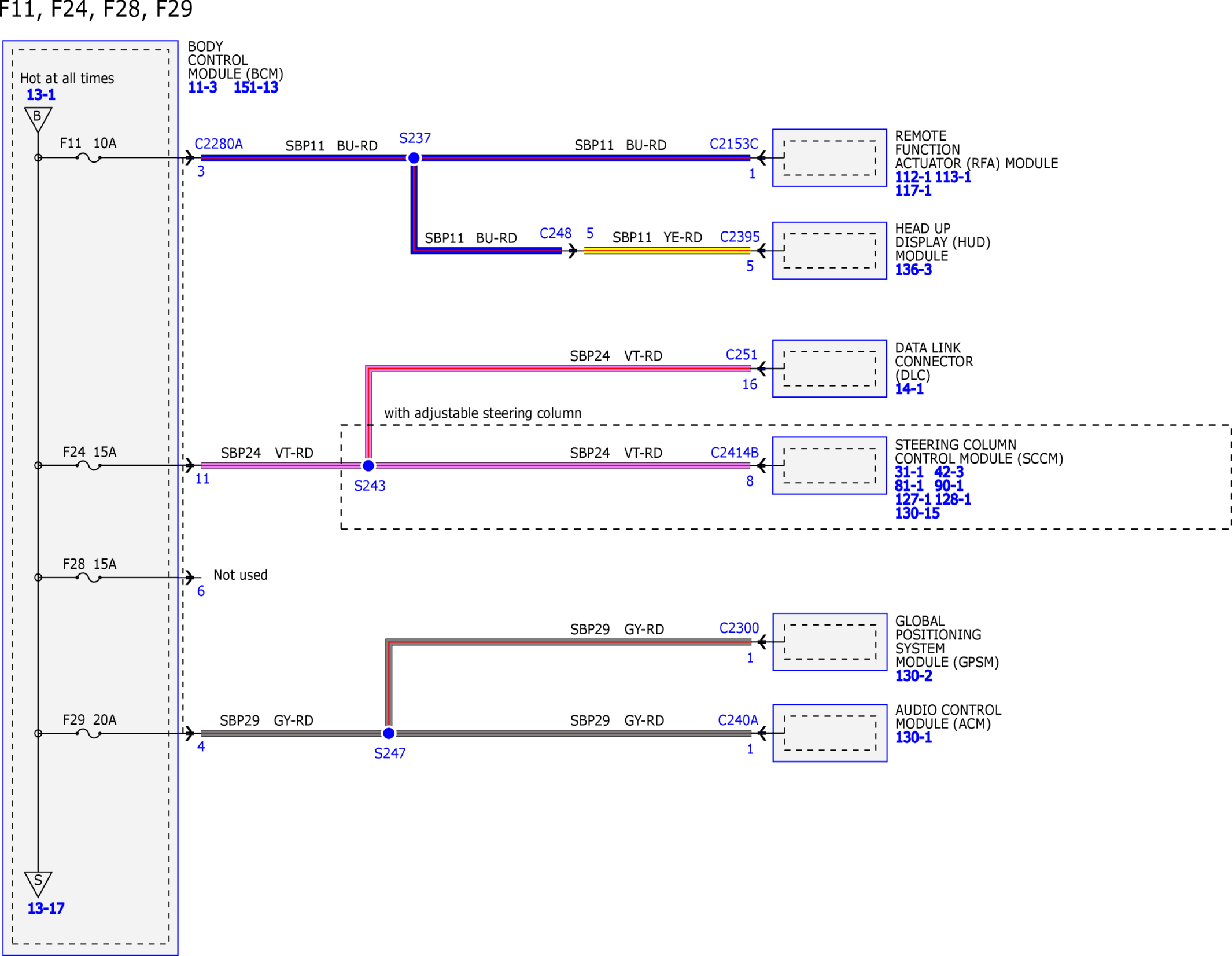

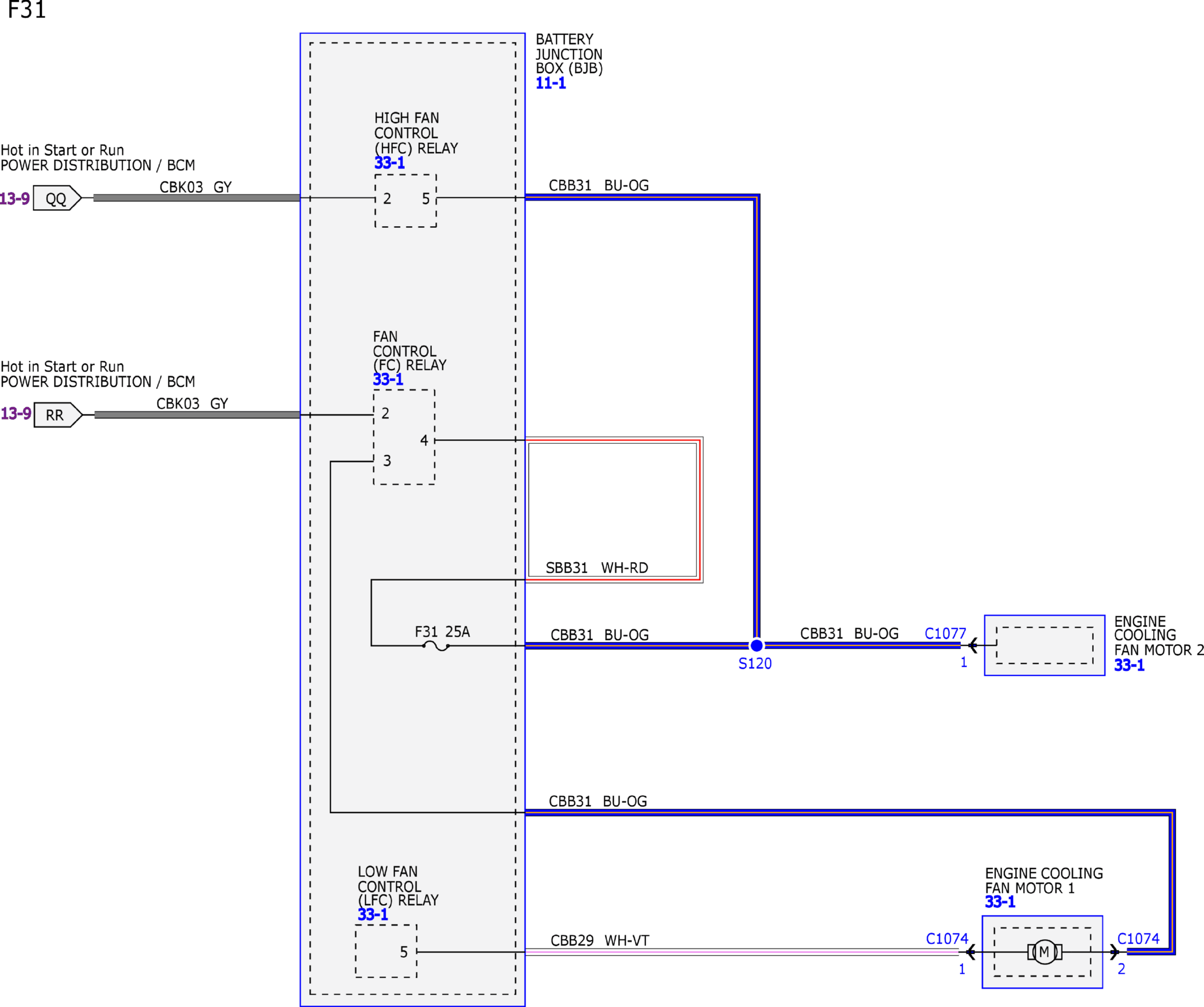

Fig 7: Power Distribution/BCM Wiring Diagram (7 of 34)
Courtesy of FORD MOTOR COMPANY

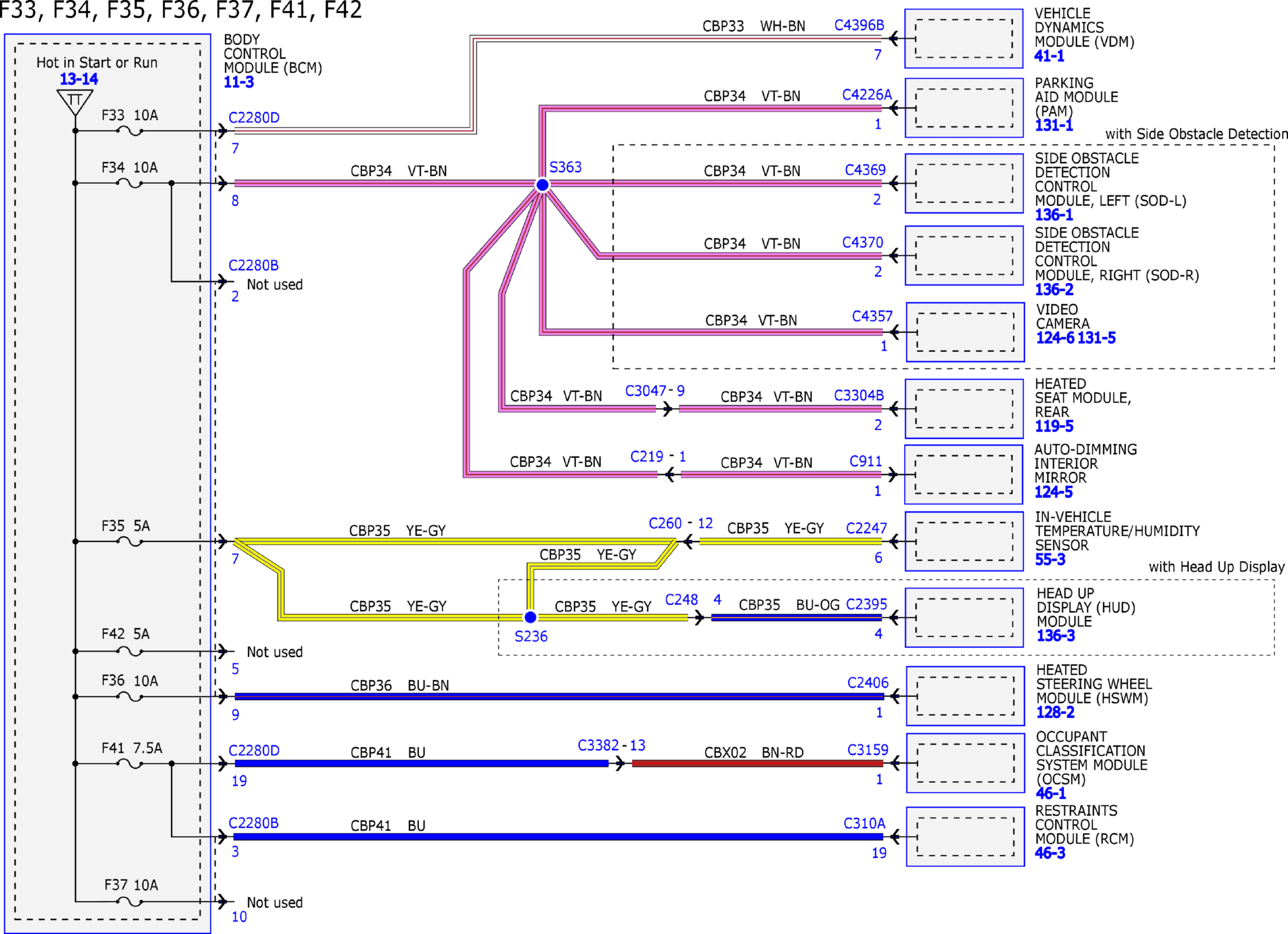

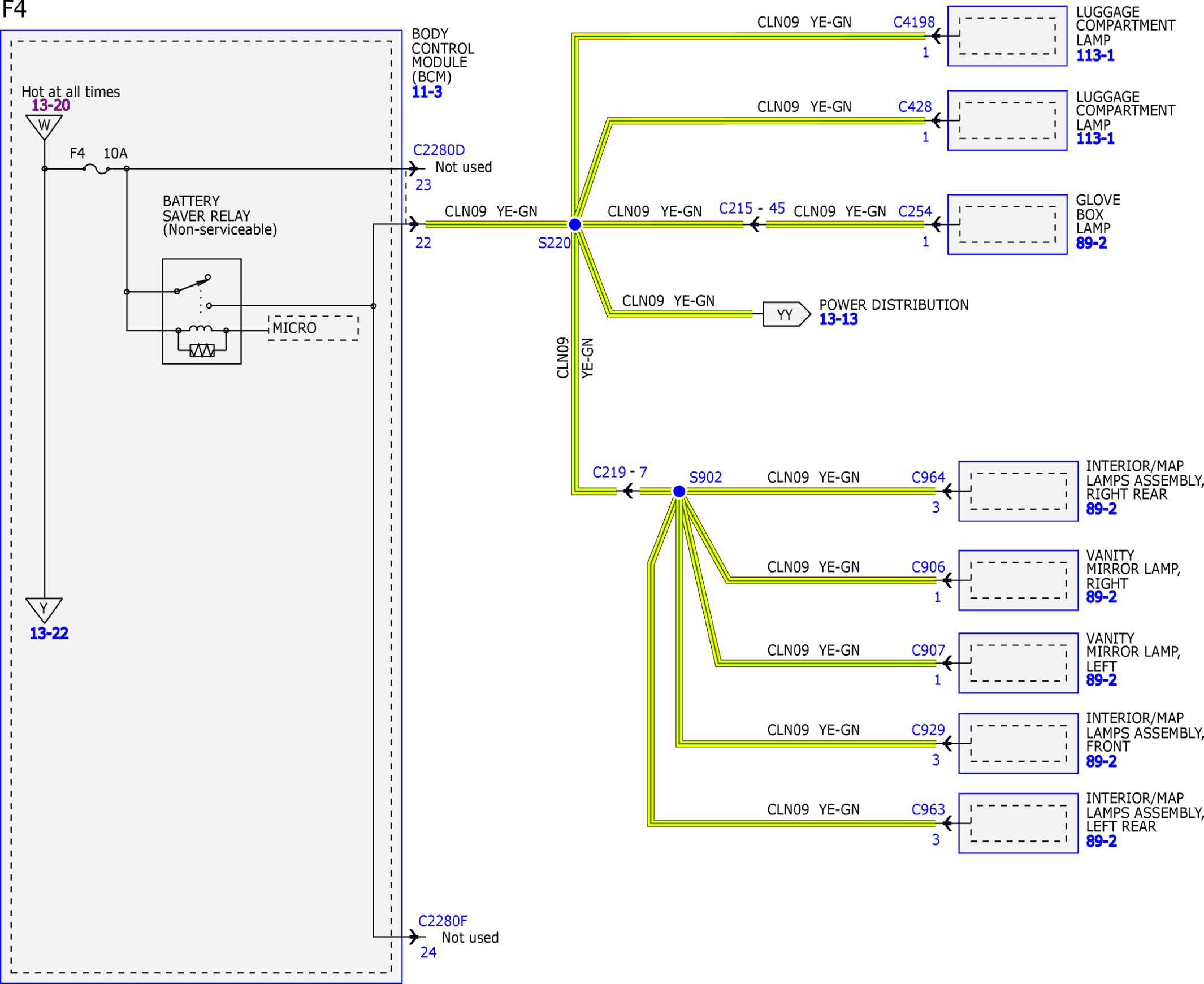

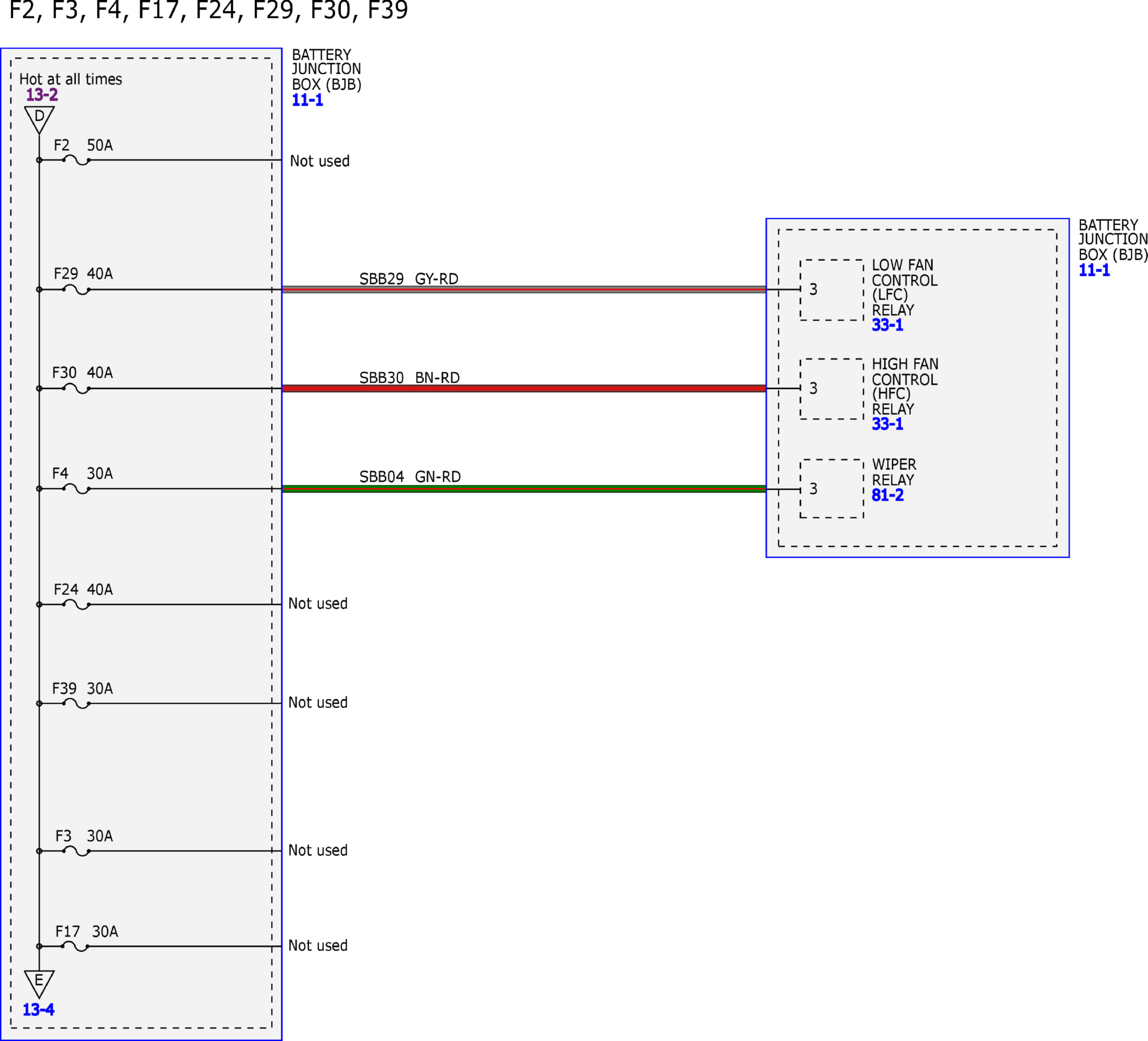

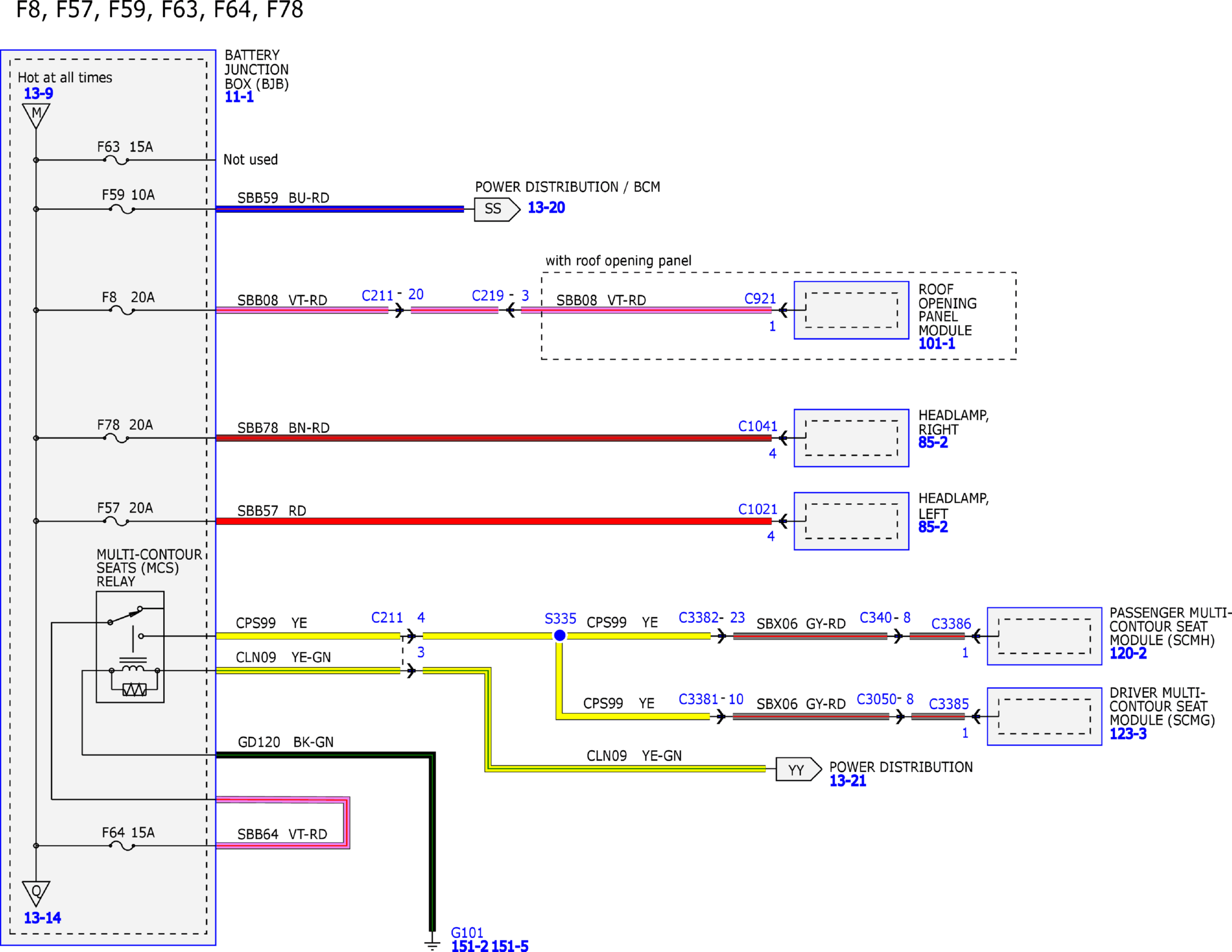

Fig 8: Power Distribution/BCM Wiring Diagram (8 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution/BCM Wiring Diagram (9 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution/BCM Wiring Diagram (10 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution/BCM Wiring Diagram (11 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution/BCM Wiring Diagram (12 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution/BCM Wiring Diagram (13 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution/BCM Wiring Diagram (14 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution/BCM Wiring Diagram (15 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution/BCM Wiring Diagram (16 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution/BCM Wiring Diagram (17 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution/BCM Wiring Diagram (18 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution/BCM Wiring Diagram (19 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution/BCM Wiring Diagram (20 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution/BCM Wiring Diagram (21 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution/BCM Wiring Diagram (22 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution/BCM Wiring Diagram (23 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution/BCM Wiring Diagram (24 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution/BCM Wiring Diagram (25 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution/BCM Wiring Diagram (26 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution/BCM Wiring Diagram (27 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution/BCM Wiring Diagram (28 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution/BCM Wiring Diagram (29 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution/BCM Wiring Diagram (30 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution/BCM Wiring Diagram (31 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution/BCM Wiring Diagram (32 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution/BCM Wiring Diagram (33 of 34)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution/BCM Wiring Diagram (34 of 34)
