Hood Alignment
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Inspection
NOTE:
Removal steps in this procedure may contain installation details.

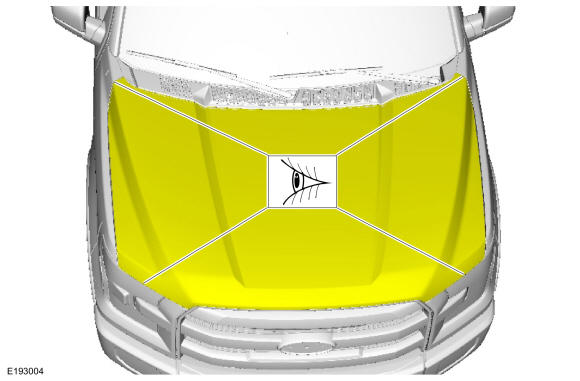

- 1.
Inspect the hood-to-body dimensions. Refer to: Body and Frame .
All alignments
- 2.
Remove the hood latch. Refer to: Hood Latch .

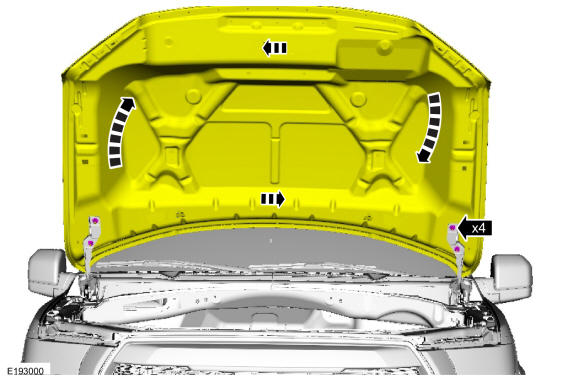

Hood fore and aft, left and right alignments

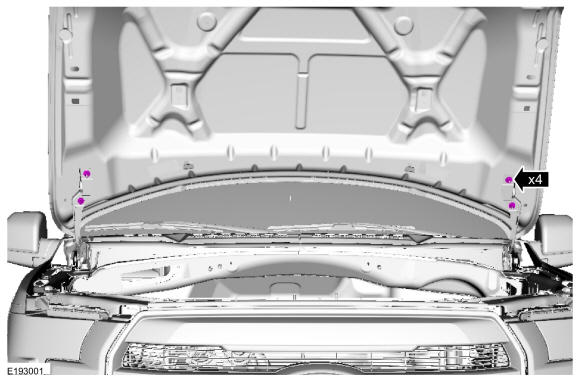

- 3.
Loosen the nuts enough to permit movement of the hood and adjust to specification. Refer to: Body and Frame .

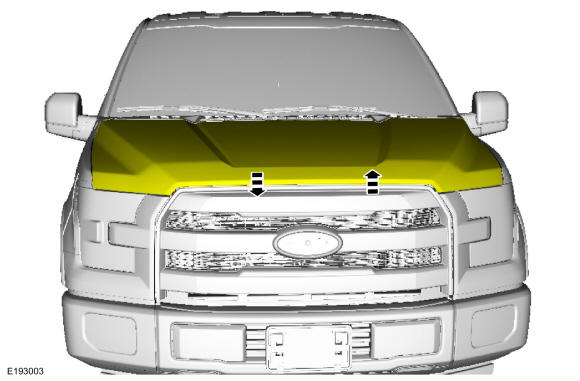

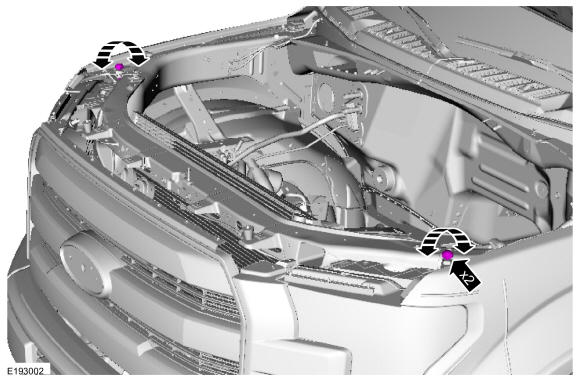

Hood front up and down alignments
- 6.
Adjust the hood to specification. Refer to: Body and Frame .
All alignments
- 7.
Inspect the body-to-hood dimensions. Refer to: Body and Frame .
