Differential Case Runout Check

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-1016 Installer, Differential Bearing TKIT-2014D-FL_ROW TKIT-2014D-ROW2
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	205-D061 (D83T-4205-C2) Step Plate
Dial Indicator
Three Leg Puller
Punch
Copper Hammer

Check

• 1.

  Remove the differential. REFER to: Differential Carrier .

• 2.

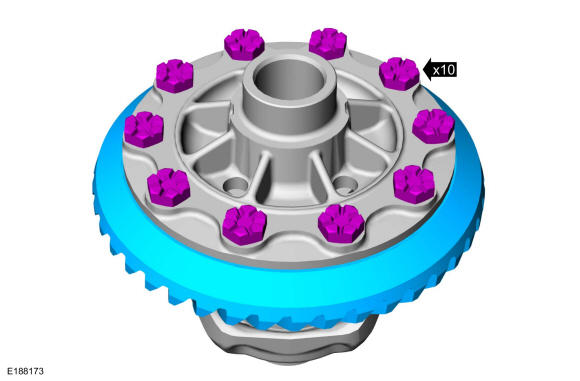

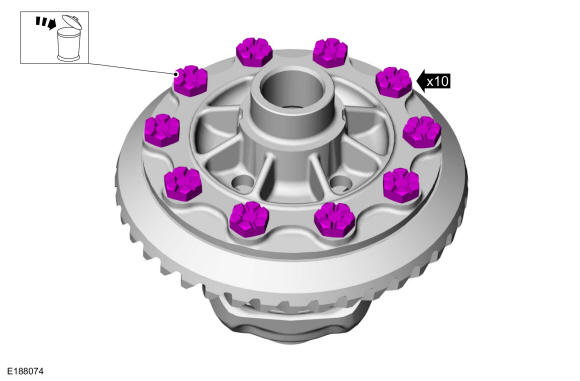

  Remove and discard the ring gear bolts.

Courtesy of FORD MOTOR COMPANY

• 3.

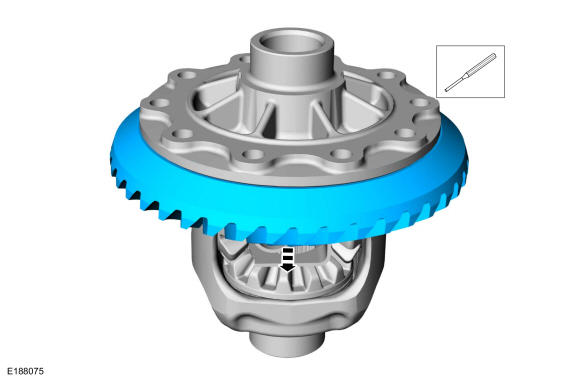

  Using the brass punch and a soft face hammer, remove the ring gear.

  Use the General Equipment: Punch

  Use the General Equipment: Copper Hammer

Courtesy of FORD MOTOR COMPANY

• 4.

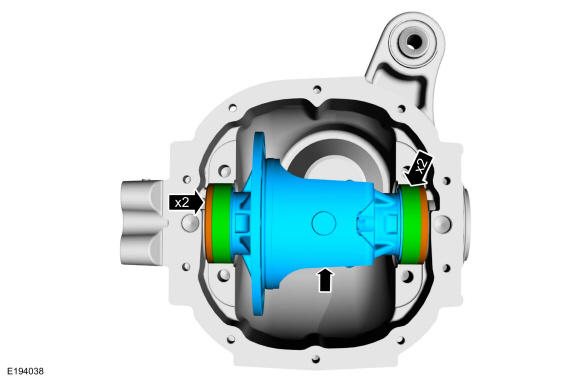

  Install the Differential carrier, differential carrier bearing cups and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY

• 5.

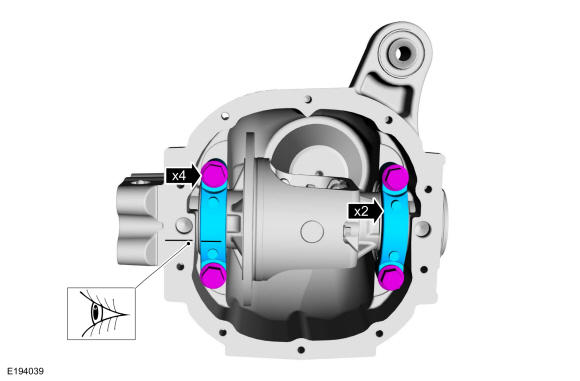

  Install the differential bearing caps and bolts. Align the differential bearing caps in there original location.

  Torque

  : 94 lb.ft (128 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

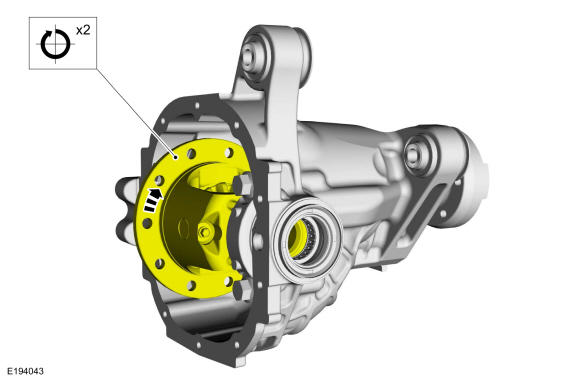

  Rotate the differential carrier to make sure the bearings have seated correctly.

Courtesy of FORD MOTOR COMPANY

• 7.

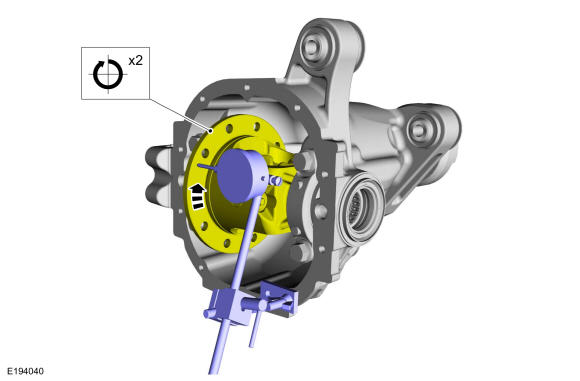

  Using the dial indicator, rotate the differential carrier and measure the differential carrier runout.
  • If the runout does not exceed the specification, install a new ring gear and pinion.

    Use the General Equipment: Dial Indicator

  • If runout exceeds the specification, the ring gear is true and the condition is due to differential carrier/differential bearing damage.
  • Inspect the differential bearings and the differential carrier. Always install new differential bearings when installing a new differential carrier, or if a bearing condition is questionable.

Courtesy of FORD MOTOR COMPANY

• 8.

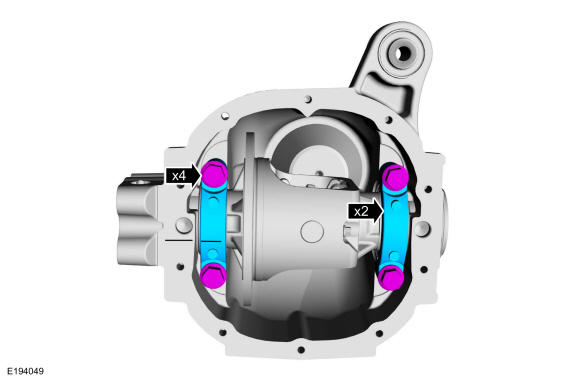

  Remove the differential bearing caps and bolts.

Courtesy of FORD MOTOR COMPANY

• 9.

  Remove the differential carrier, differential bearing cups, and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY

• 10.


  NOTE: If necessary.

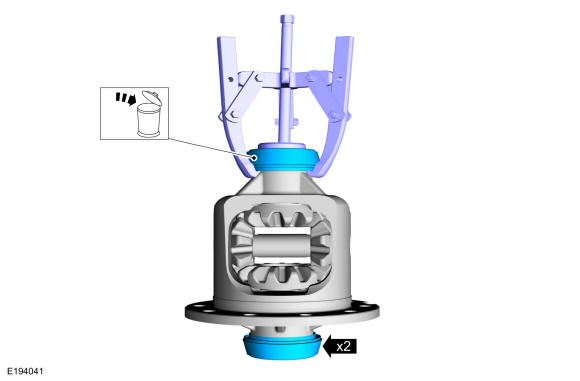

  Using the special tool and a 3 Jaw Puller, remove and discard the differential bearings.

  Use Special Service Tool: 205-D061 (D83T-4205-C2) Step Plate.

  Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

• 11.

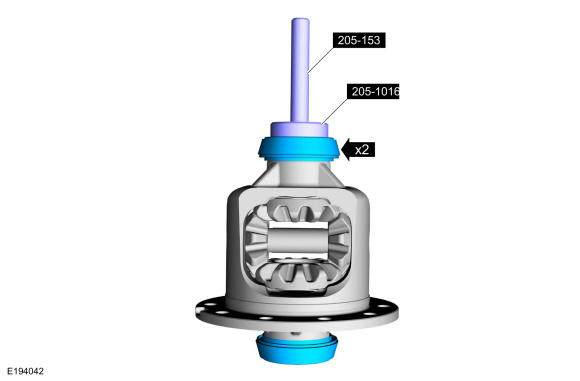

  Using the special tools, install the new differential bearings.

  Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-1016 Installer, Differential Bearing.

Courtesy of FORD MOTOR COMPANY

• 12.

  Install the Differential carrier, differential carrier bearing cups and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY

• 13.

  Install the differential bearing caps and bolts. Align the differential bearing caps in there original location.

Courtesy of FORD MOTOR COMPANY

• 14.

  Rotate the differential carrier to make sure the bearings have seated correctly.

Courtesy of FORD MOTOR COMPANY

• 15.


  NOTE: If the runout is still excessive, install a new differential case.

  Using the dial indicator, rotate the differential carrier and measure the differential carrier runout.

  Use the General Equipment: Dial Indicator

Courtesy of FORD MOTOR COMPANY

• 16.

  Remove the differential bearing caps and bolts.

Courtesy of FORD MOTOR COMPANY

• 17.

  Remove the differential carrier, differential bearing cups, and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY

• 18.


  NOTE: Tighten the ring gear bolts in a cross pattern.

  Install the ring gear and the new ring gear bolts.

  Torque

  : 94 lb.ft (128 Nm)

Courtesy of FORD MOTOR COMPANY

• 19.

  Install the differential carrier. REFER to: Differential Carrier .
