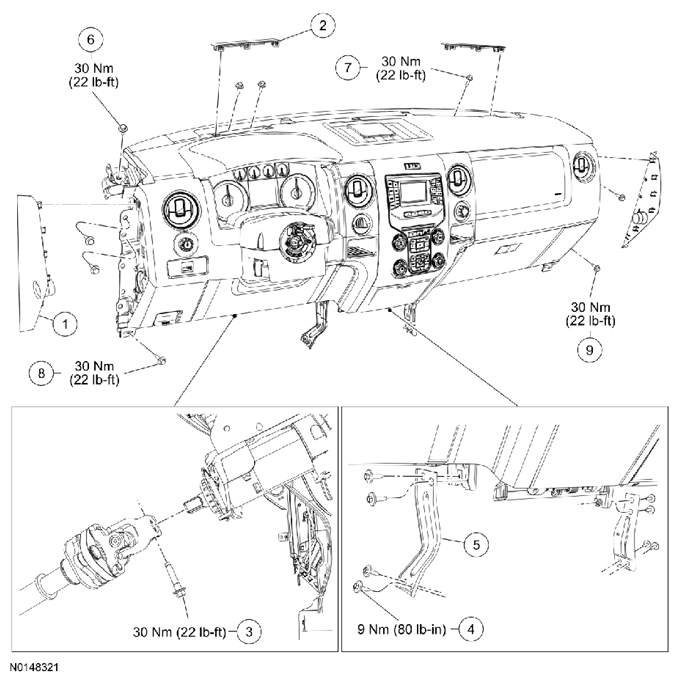

Instrument Panel Fasteners
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 04480 RH/04481 LH | Instrument panel side finish panel |
| 2 | 043C54 | Instrument panel upper cowl trim panel |
| 3 | N808684 | Steering column shaft-to-steering column bolt |
| 4 | N807316 | Center instrument panel support bracket bolt (4 required per side) |
| 5 | 045F38 LH/045B00 RH | Center instrument panel support bracket (2 required) |
| 6 | W706426 | LH instrument panel upper bolt (3 required) |
| 7 | W706426 | RH instrument panel upper bolt |
| 8 | W706426 | LH instrument panel side bolt (3 required) |
| 9 | W706426 | RH instrument panel side bolt (2 required) |
