Differential Case: Assembly

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

General Equipment: Hydraulic Press

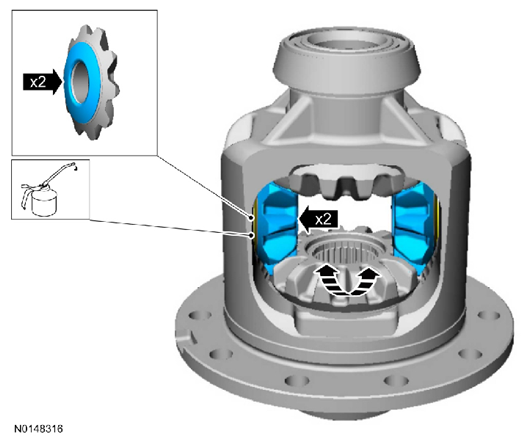

Fig 1: Locating Front Differential Housing Bushing
Courtesy of FORD MOTOR CO.

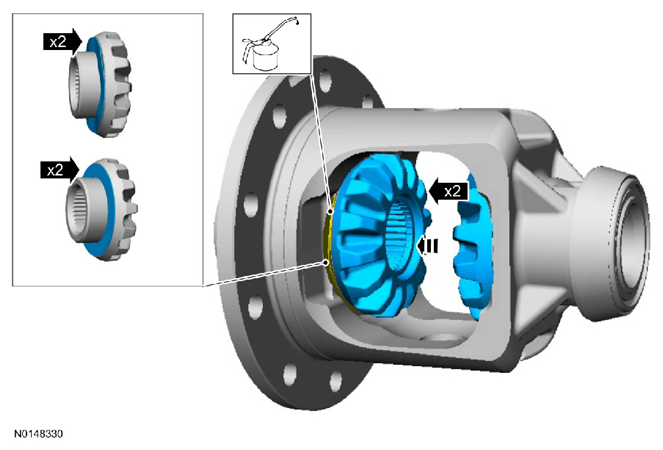

Fig 2: Locating Differential Ring Gear
Courtesy of FORD MOTOR CO.
Fig 3: Removing Differential Ring Gear
Courtesy of FORD MOTOR CO.
Fig 4: Installing Pinion Shaft
Courtesy of FORD MOTOR CO.
NOTE: If a new pinion shaft bolt is unavailable, coat the threads with sealer.
- Tighten to 30 Nm (22 lb-ft).

  Fig 5: Locating Pinion Shaft Bolt
  Courtesy of FORD MOTOR CO.
NOTE: Loosely install 3 bolts to align the ring gear and carrier bolt holes.

General Equipment: Hydraulic press

Fig 6: Locating Ring Gear Bolts
Courtesy of FORD MOTOR CO.
- Tighten to 128 Nm (95 lb-ft).

  Fig 7: Locating Differential Carrier Bolts
  Courtesy of FORD MOTOR CO.
Install the differential carrier. Refer to DIFFERENTIAL CARRIER .
