Generator - 6.2L
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

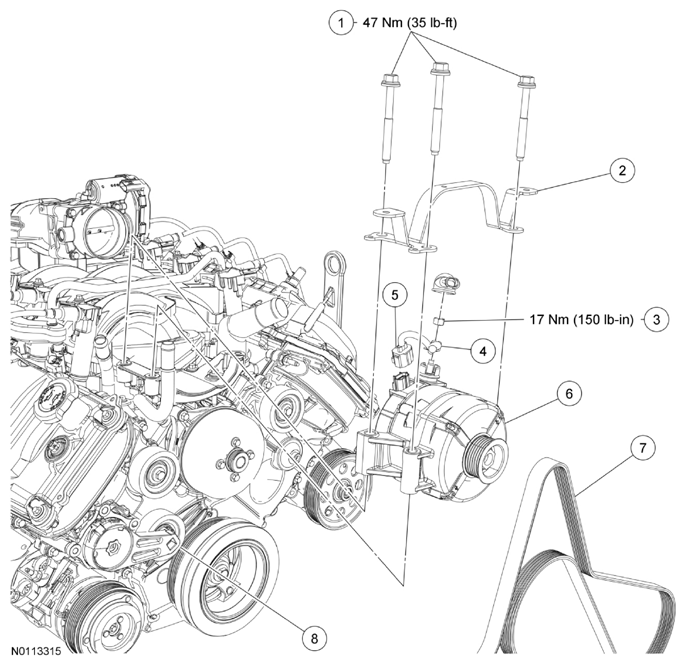

| Item | Part Number | Description |
|---|---|---|
| 1 | W715092 | Generator bolt (3 required) |
| 2 | 10153 | Generator bracket |
| 3 | W711953 | Generator B+ terminal nut |
| 4 | - | Generator B+ terminal (part of 14305) |
| 5 | - | Generator electrical connector (part of 14305) |
| 6 | 10300 | Generator |
| 7 | 8620 | Accessory drive belt |
| 8 | 6B209 | Accessory drive belt tensioner |
- Disconnect the battery. For additional information, refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
- Loosen the Air Cleaner (ACL) outlet pipe clamp at the ACL upper tray and remove the ACL outlet pipe and resonator assembly. For additional information, refer to Intake Air System Components - Exploded View in INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
- Rotate the accessory drive belt tensioner clockwise and position the accessory drive belt aside.
- Disconnect the generator electrical connector.
- Position the generator B+ protective boot aside, remove the generator B+ terminal nut and position the generator B+ terminal aside.
- To install, tighten to 17 Nm (150 lb-in).
- Remove the 3 bolts, generator bracket and the generator.
- To install, tighten to 47 Nm (35 lb-ft).
- To install, reverse the removal procedure.
