Rear Disc Brake Shield: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

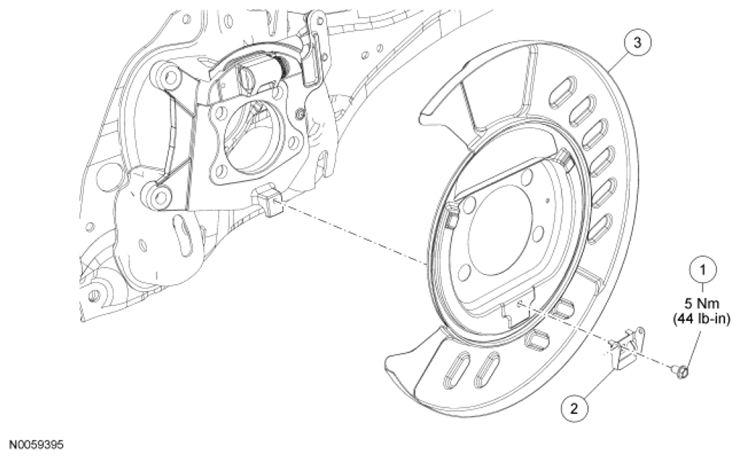

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W302607 |
Parking brake shoe return spring bracket bolt |
| 2 |
2068 |
Parking brake shoe return spring bracket |
| 3 |
- |
Brake disc shield (part of 2C220) |
