Front Brake Caliper: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

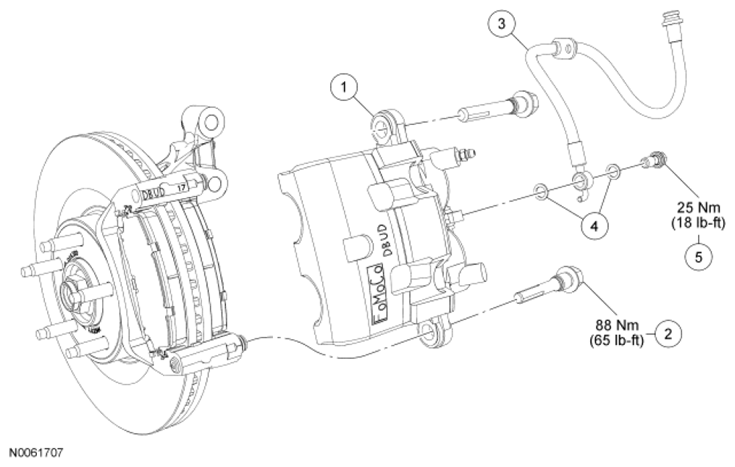

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2B120 RH/2B121 LH | Brake caliper |
| 2 | 2C150 | Brake caliper guide bolt (2 required) |
| 3 | 2078 RH/2B557 LH | Front brake hose |
| 4 | W711784 | Copper washers (2 required) |
| 5 | 2L122 | Brake caliper flow bolt |
