Ignition Switch: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

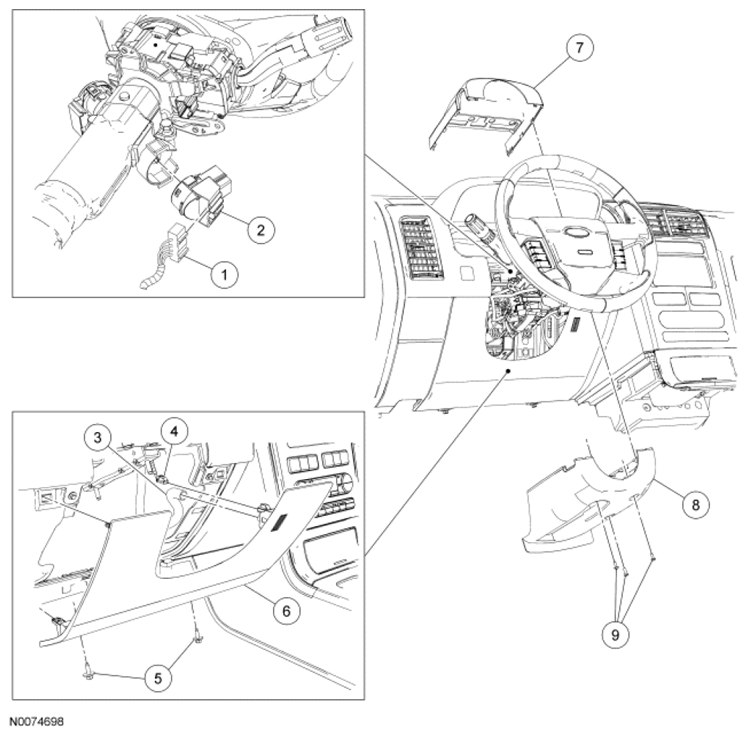

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition switch electrical connector (part of 14401) |
| 2 | 11572 | Ignition switch |
| 3 | - | In-vehicle temperature sensor hose (part of 19C734) |
| 4 | - | In-vehicle temperature sensor electrical connector (part of 14401) |
| 5 | W505002 | Steering column opening cover bolts (2 required) |
| 6 | 04459 | Steering column opening cover |
| 7 | 3530 | Upper steering column shroud |
| 8 | 3K512 | Lower steering column shroud |
| 9 | W707658 | Lower steering column shroud screws (3 required) |
