Reverse Idler Gear: Notes
WARNING: This page is about a different car, the 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

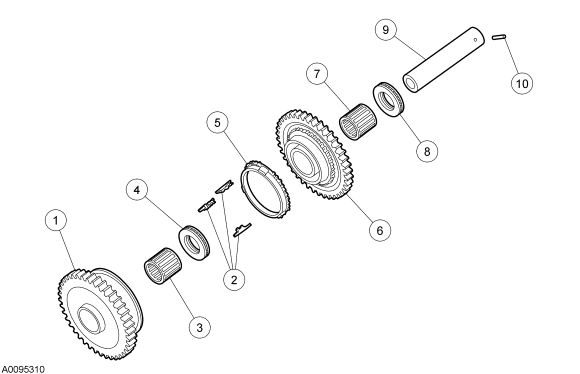

| Item | Part Number | Description |
|---|---|---|
| 1 | 7141 | Reverse idler rear gear and reverse coupling sleeve |
| 2 | 7C397 | Insert springs (3 required) |
| 3 | 7143 | Reverse idler gear needle bearing |
| 4 | 7C432 | Reverse idler gear thrust bearing |
| 5 | 7107 | Reverse gear synchronizer ring |
| 6 | 7142 | Reverse idler front gear |
| 7 | 7143 | Reverse idler gear needle bearing |
| 8 | 7C432 | Reverse idler thrust bearing |
| 9 | 7140 | Reverse idler shaft |
| 10 | 7K218 | Roll pin |
