Driver Air Bag Module: Removal

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

WARNING: Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

WARNING: To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

NOTE: The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.

NOTE: The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .

NOTE: Repeat this step for both locking pins.

Using a 3-mm Allen wrench or a suitable tool through the access hole on the backside of the steering wheel, position the tool against the spring clip and push in, disengaging the clip from the locking pin. With the spring clip disengaged from the locking pin, gently pull back on that side of the driver air bag module to release it from the steering wheel.

Fig 1: Locating Allen Wrench

Courtesy of FORD MOTOR CO.

CAUTION: Do not pull the driver air bag module electrical connectors out by the locking buttons. Damage to the locking buttons can occur.

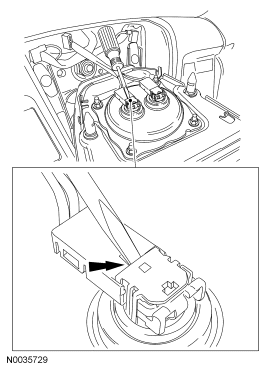

Using a small screwdriver as shown, lift up and release the locking buttons on the driver air bag module electrical connectors. With the locking buttons released, remove the electrical connectors and the driver air bag module.

Fig 2: Releasing Locking Buttons On Driver Air Bag Module Electrical Connectors

Courtesy of FORD MOTOR CO.
