Subwoofer Speaker: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

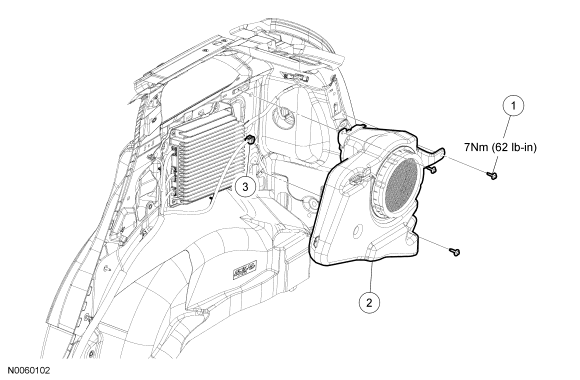

Fig 1: Exploded View Of Subwoofer Speaker With Torque Specification - Edge

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505425-S	Subwoofer speaker bolts (3 required)
2	18C804	Subwoofer speaker
3	-	Subwoofer speaker electrical connector (part of 14A005)

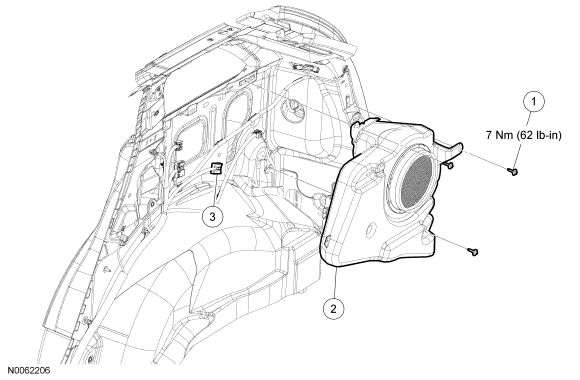

Fig 2: Exploded View Of Subwoofer Speaker With Torque Specification - MKX

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505425-S	Subwoofer speaker bolts (3 required)
2	18808	Subwoofer speaker
3	-	Subwoofer speaker electrical connector (part of 14A005)
