Power Liftgate Motor: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

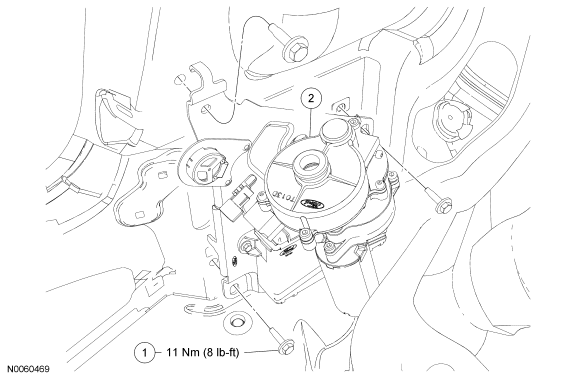

Fig 1: Exploded View Of Power Liftgate Motor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505424	Power liftgate motor retaining bolt (3 required)
2	404C85	Power liftgate motor assembly
