UEGO MONIOTOR
UEGO MONIOTOR

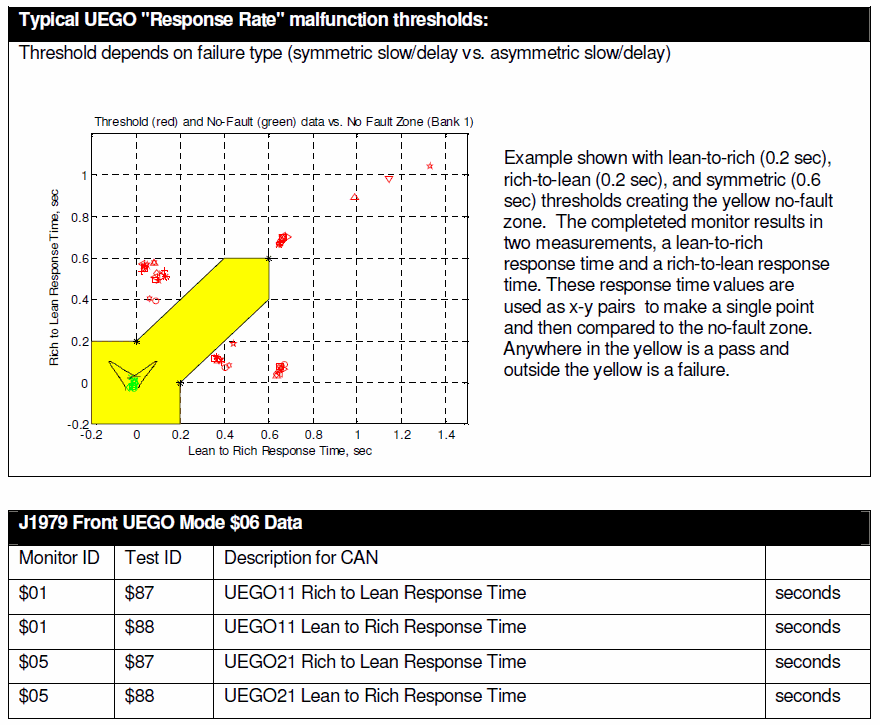

Fig 1: Mode $06 Data For UEGO Response Rate Monitor
Courtesy of FORD MOTOR CO.
Fig 2: Mode $06 Data For UEGO Response Time Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
