Front Ho2S Heater Monitor

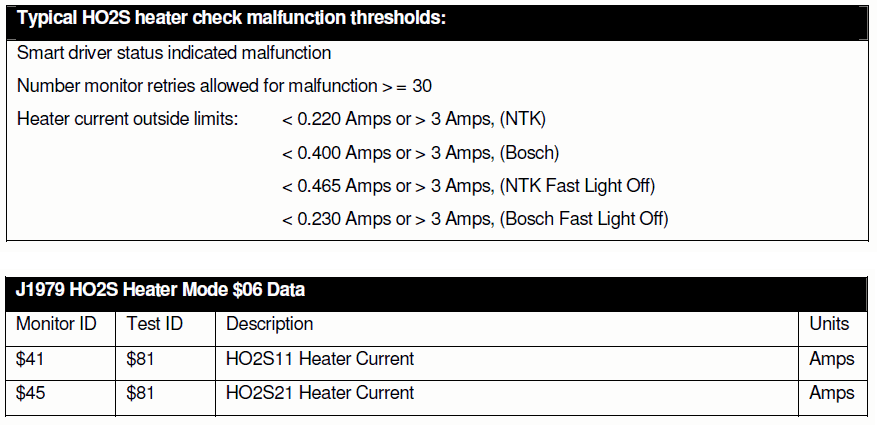

Fig 1: Mode $06 Data For Front HO2S Heater Monitor

G00502260

Courtesy of FORD MOTOR CO.
