Removal and Installation

10-way power seat

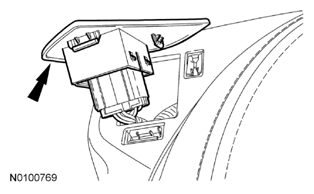

1. Pry the bezel up from the cushion side shield, disconnect the electrical connector, release the tabs and remove the memory SET switch.
   Fig 1: Locating Tabs Of Electrical Connector

   Courtesy of FORD MOTOR CO.

   14-way power seat

2. Slide up and remove the cushion side shield cover.
   Fig 2: Locating Cushion Side Shield Cover

   Courtesy of FORD MOTOR CO.
3. Remove the bolt and separate the safety belt anchor.
   • Tighten to 48 Nm (35 lb-ft).
4. At the rear of the seat, detach the carpet flap toe-kick retainers from under the seat.
   Fig 3: Locating Carpet Flap Toe-Kick Retainers

   Courtesy of FORD MOTOR CO.
5. From the front of the seat, detach the wire harness retainer and disconnect the seat control switch electrical connectors.
   Fig 4: Locating Seat Control Switch Electrical Connectors And Wire Harness Retainer

   Courtesy of FORD MOTOR CO.
6. Remove the cushion side shield.
   1. Remove the screw at the back.
   2. Remove the scrivet at the back.
   3. Remove the screw at the front.
   4. Pull out and release 3 retaining clips.
   5. Slide down and separate the hook.
   6. Disconnect the memory SET switch electrical connector.
      Fig 5: Identifying Cushion Side Shield Mounting Bolts

      Courtesy of FORD MOTOR CO.
7. Disengage the clips and remove the memory SET switch.

   All seats

8. To install, reverse the removal procedure.
