Transaxle Support Insulator - Anti-Roll, 3.5L: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the 2 Y-pipe nuts and disconnect the exhaust hanger.
- Discard the Y-pipe nuts and the exhaust seal.

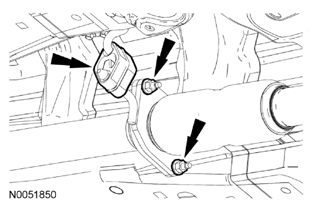

  Fig 1: Locating Exhaust Hanger And Y-Pipe Nuts
  Courtesy of FORD MOTOR CO.
Remove the Y-pipe assembly.
- Discard the 4 Y-pipe nuts and the exhaust seals.

  Fig 2: Locating Exhaust Y-Pipe Assembly And Nuts
  Courtesy of FORD MOTOR CO.
Remove the 2 through bolts and remove the roll restrictor.

Fig 3: Locating Roll Restrictor Mounting Bolts
Courtesy of FORD MOTOR CO.
