Transmission Fluid Level Indicator

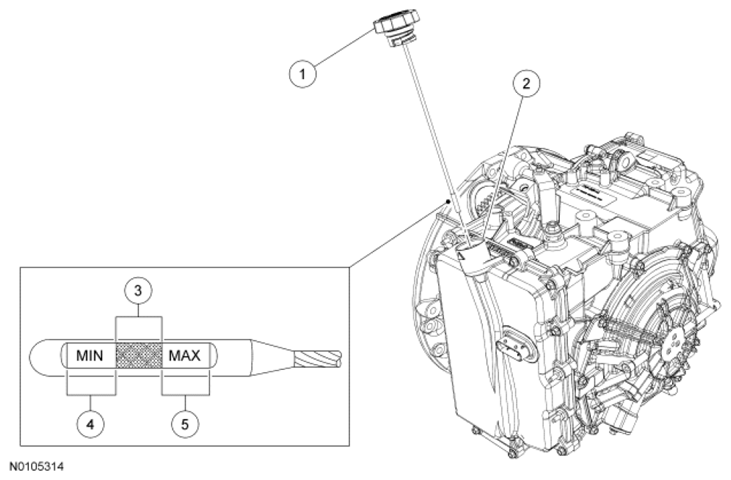

Fig 1: Identifying Transmission Fluid Level Indicator And Control Cover Assembly
G06502218Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7A020 Transmission fluid level indicator
2 7G004 Main control cover assembly
3 - Correct transmission fluid level at normal operating temperature 82°C-93°C (180°F-200°F)
4 - Low transmission fluid level
5 - High transmission fluid level
