Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Drain the cooling system. For additional information, refer to ENGINE COOLING .
    2. NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

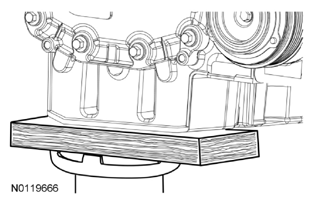

    Fig 1: Identifying Position Of Floor Jack Under Oil Pan
    G07998841Courtesy of FORD MOTOR CO.
  2. Position a floor jack with a block of wood under the front of the oil pan.
  3. Remove the noise generator. For additional information, refer to REMOVAL AND INSTALLATION Intake Air System Components - Exploded View .
  4. Remove the engine coolant degas bottle. For additional information, refer to ENGINE COOLING .
  5. Disconnect the upper radiator hose from the intake manifold.
  6. Remove the A/C tube bracket bolt from the upper RH shock tower.
    • To install, tighten to 15 Nm (133 lb-in).
  7. Remove the A/C tube retaining clamp bolt from the lower RH shock tower.
    • To install, tighten to 9 Nm (80 lb-in).
  8. Remove the 4 engine mount nuts.
    • To install, tighten to 63 Nm (46 lb-ft).
  9. Remove the 3 bolts and the engine mount.
    • To install, tighten to 90 Nm (66 lb-ft).
  10. To install, reverse the removal procedure.
  11. Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
