Fuel Pump Driver Module (FPDM): Removal
WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The fuel pump driver module is located on top of a rear frame crossmember.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

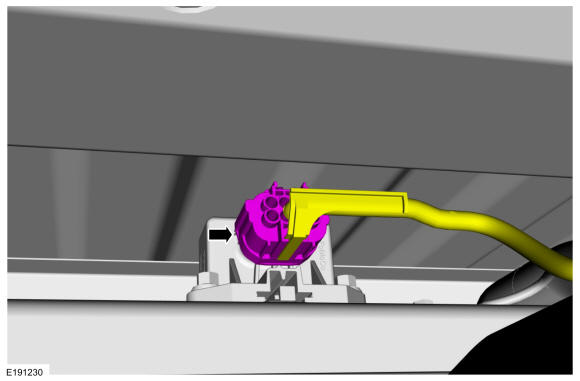

- Disconnect the fuel pump driver module electrical connector.

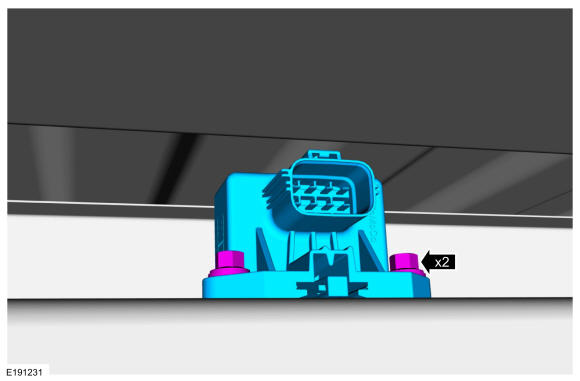

- Remove the fuel pump driver module bolts and then remove the fuel pump driver module.
