Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The RH and LH pistons are similar in appearance but differ in design specifications. The pistons must be installed in the correct cylinder bank or serious damage to the engine will occur.

1.

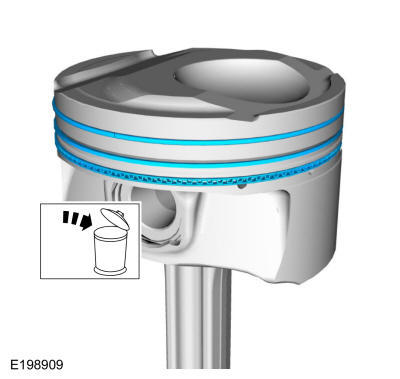

Remove and discard the piston rings.

Courtesy of FORD MOTOR COMPANY

2.

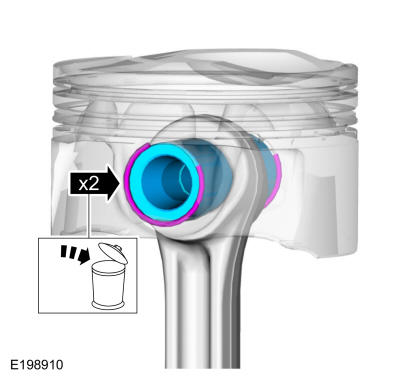

Remove and discard the piston pin retainers.
- Remove the piston pin.

Courtesy of FORD MOTOR COMPANY

3.

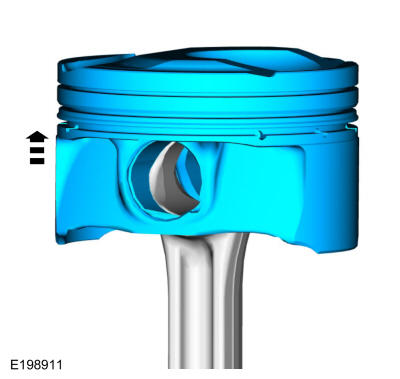

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

Separate the piston from the connecting rod.

Courtesy of FORD MOTOR COMPANY

4.

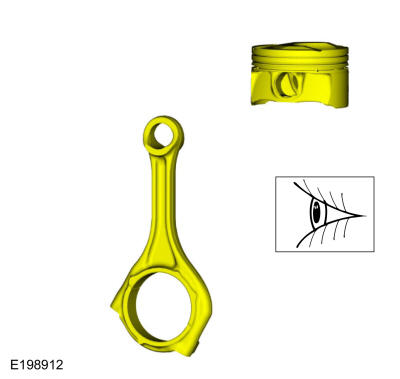

Clean and inspect the piston and connecting rod. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
