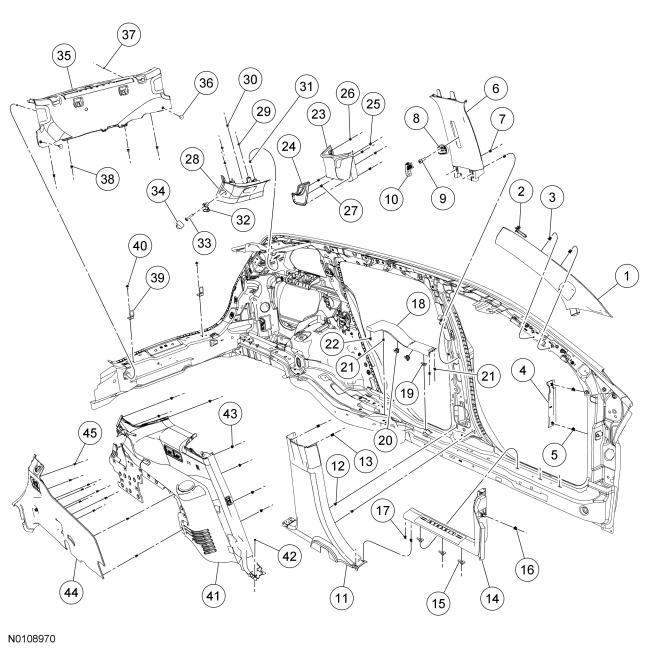

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7403599 LH/ 7403598 RH LH/ 7403598 RH | A-pillar trim panel |
| 2 | 30619-B-B | A-pillar trim panel tether |
| 3 | W710338 | A-pillar trim panel retainer clip (2 required) |
| 4 | 74044C61 LH/ 74044C60 RH LH/ 74044C60 RH | Lower A-pillar trim panel |
| 5 | W705306 | Lower A-pillar trim panel retainer clip (2 required) |
| 6 | 7424357 LH/ 7424356 RH LH/ 7424356 RH | Upper B-pillar trim panel |
| 7 | W710338 | Upper B-pillar trim panel retainer clip (2 required) |
| 8 | - | Safety belt D-ring (part of 74611B09 LH/ 74611B08 RH safety belt) |
| 9 | - | Safety belt anchor bolt (part of 74611B09 LH/ 74611B08 RH safety belt) |
| 10 | 7460262 | Safety belt D-ring cover |
| 11 | 7424347 LH/ 7424346 RH LH/ 7424346 RH | Lower B-pillar trim panel |
| 12 | W710338 | Lower B-pillar trim panel retainer clip (2 required) |
| 13 | 30628 | Lower B-pillar trim panel retainer clip (2 required) |
| 14 | 7413209 LH/ 7413208 RH LH/ 7413208 RH | Front scuff plate trim panel |
| 15 | 5413228 | Front scuff plate trim panel retainer clip (3 required) |
| 16 | W710338 | Front scuff plate trim panel retainer clip |
| 17 | W705306 | Front scuff plate trim panel retainer clip (2 required) |
| 18 | 7413229 LH/ 7413228 RH LH/ 7413228 RH | Rear scuff plate trim panel |
| 19 | 5413288 | Rear scuff plate trim panel retainer clip |
| 20 | W711341 | Rear scuff plate trim panel-to-weatherstrip retainer (2 required) |
| 21 | W710338 | Rear scuff plate trim panel retainer clip (3 required) |
| 22 | W705306 | Rear scuff plate trim panel retainer clip |
| 23 | 7431005 LH/ 7431004 RH LH/ 7431004 RH | C-pillar trim panel |
| 24 | 74611B91 LH/ 74611B90 RH LH/ 74611B90 RH | C-pillar trim panel safety belt cover |
| 25 | W710338 | C-pillar trim panel retainer clip (4 required) |
| 26 | 30253 | C-pillar trim panel retainer clip (LH side only) |
| 27 | 20013679 | C-pillar trim panel safety belt cover retainer clip (2 required) |
| 28 | 7831011 LH/ 7831010 RH LH/ 7831010 RH | D-pillar trim panel |
| 29 | M18085010 | D-pillar trim panel pushpin (2 required) |
| 30 | M18085017 | D-pillar trim panel pushpin |
| 31 | W710338 | D-pillar trim panel retainer clip (2 required) |
| 32 | - | Safety belt D-ring (part of 74611B69 LH/ 74611B68 RH safety belt) |
| 33 | W713744 | Safety belt anchor bolt |
| 34 | 7460262 | Safety belt D-ring cover |
| 35 | 7411318 | Liftgate opening scuff plate trim panel |
| 36 | W706635 | Liftgate opening scuff plate trim panel pushpin (2 required) |
| 37 | W712365 | Liftgate opening scuff plate trim panel retainer clip (2 required) |
| 38 | W710338 | Liftgate opening scuff plate trim panel retainer clip (4 required) |
| 39 | 78550A74 | Retaining plate (2 required) |
| 40 | W705132 | Retaining plate bolt (2 required) |
