Seat Track Motor Front: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.
NOTE:
Typical driver seat shown, others similar.
- 1.
Remove the front seat. Refer to Seat - Front .

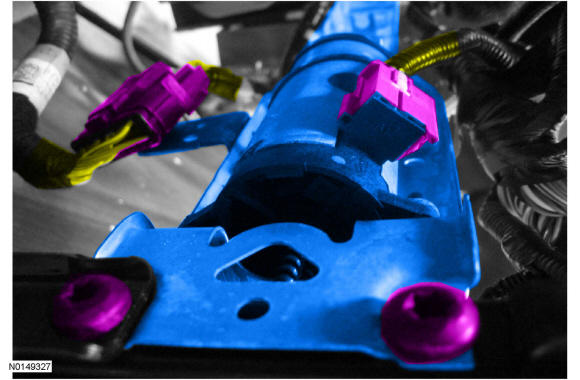

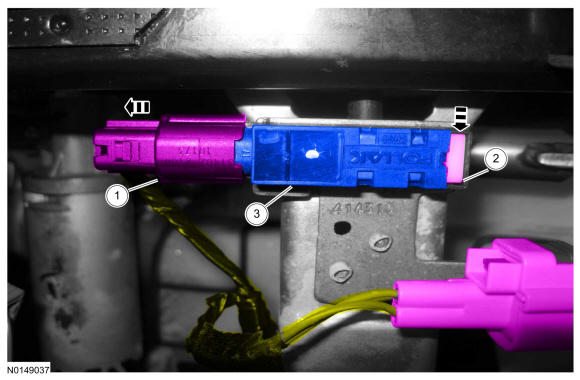

- 6.NOTE: Seat cushion wire harness take-outs will vary with seat option content. Note the wire harness routing, attachment points and connections to the horizontal seat motor and bracket for installation.
