8" Display

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

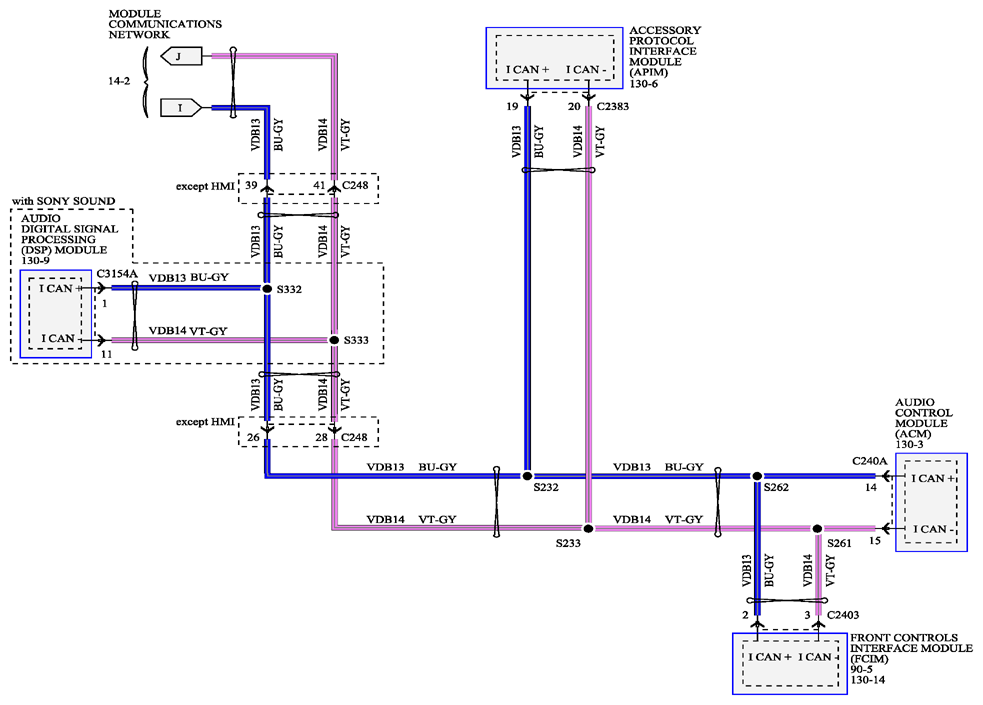

Fig 1: Module Communications Network - Wiring Diagram (8" Display)
G09257486Courtesy of FORD MOTOR CO.
