Power Windows: Convertible

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

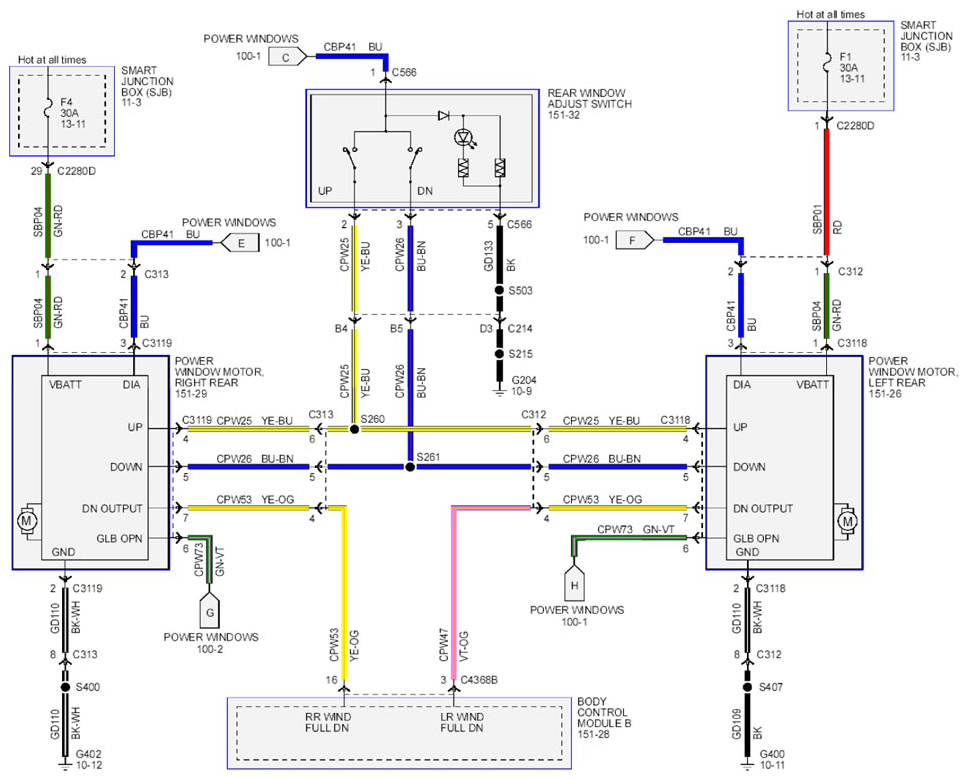

Fig 1: Power Windows Circuit Diagram - Convertible
G07925460Courtesy of FORD MOTOR CO.
