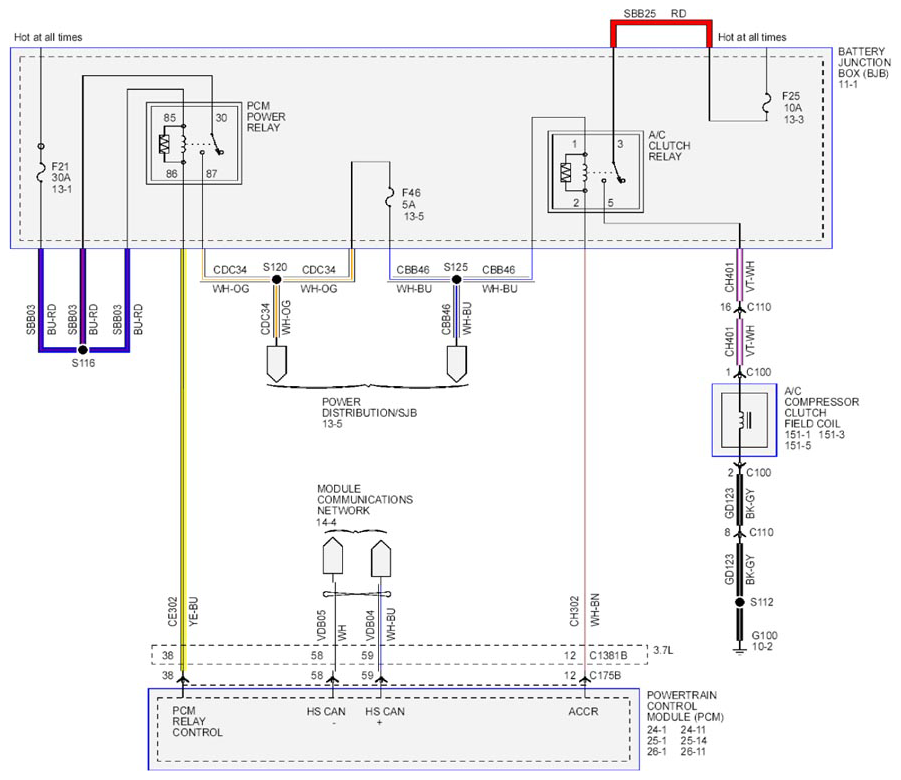

Fig 1: Manual Climate Control System Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

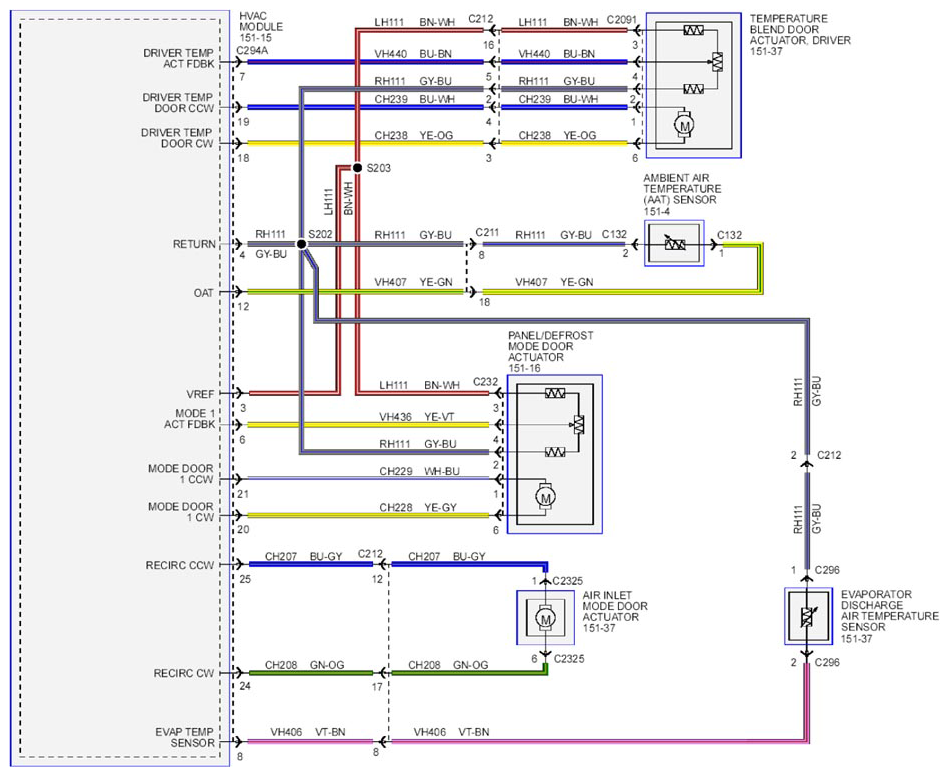

Fig 2: Manual Climate Control System Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

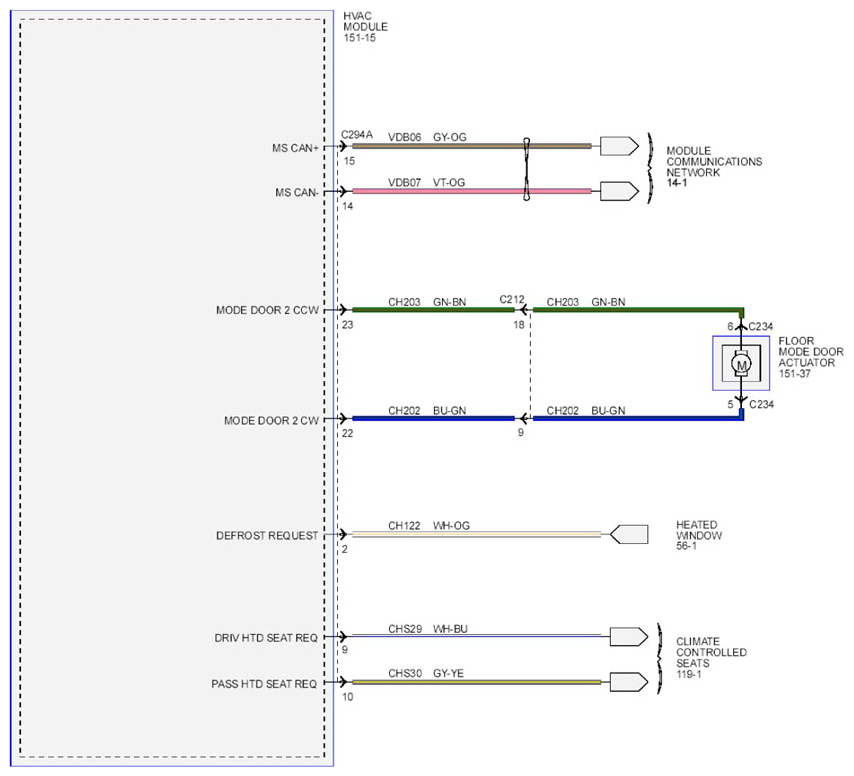

Fig 3: Manual Climate Control System Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

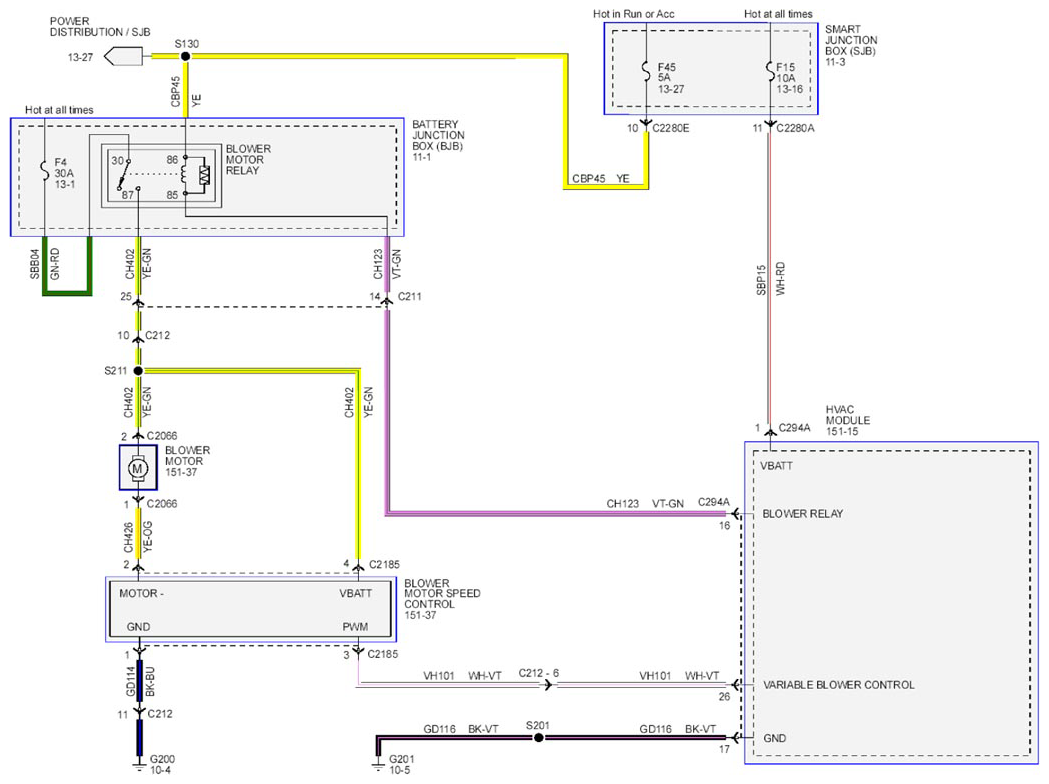

Fig 4: Manual Climate Control System Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

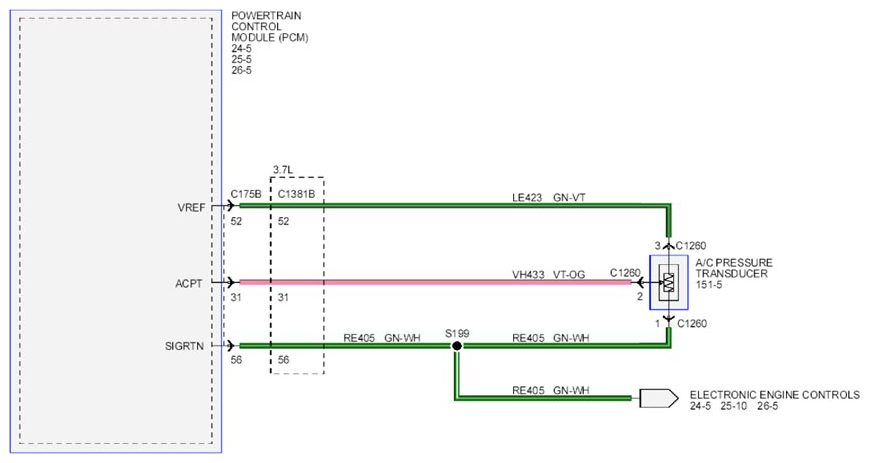

Fig 5: Manual Climate Control System Circuit Diagram (5 Of 5)
