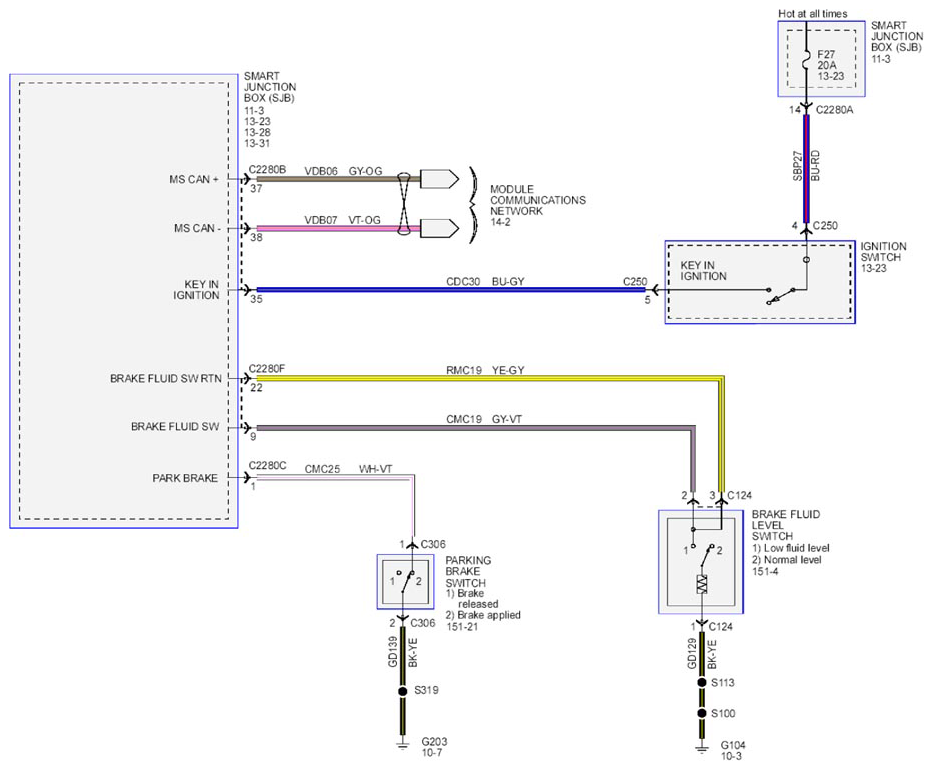

Fig 1: Instrument Cluster Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

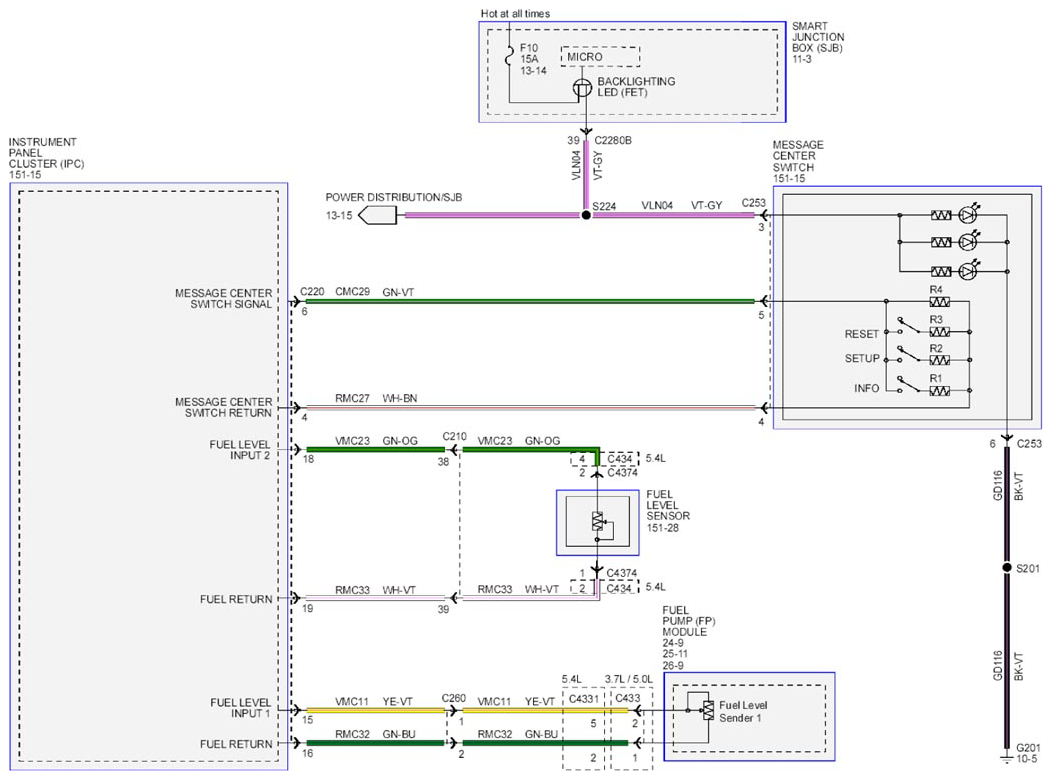

Fig 2: Instrument Cluster Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

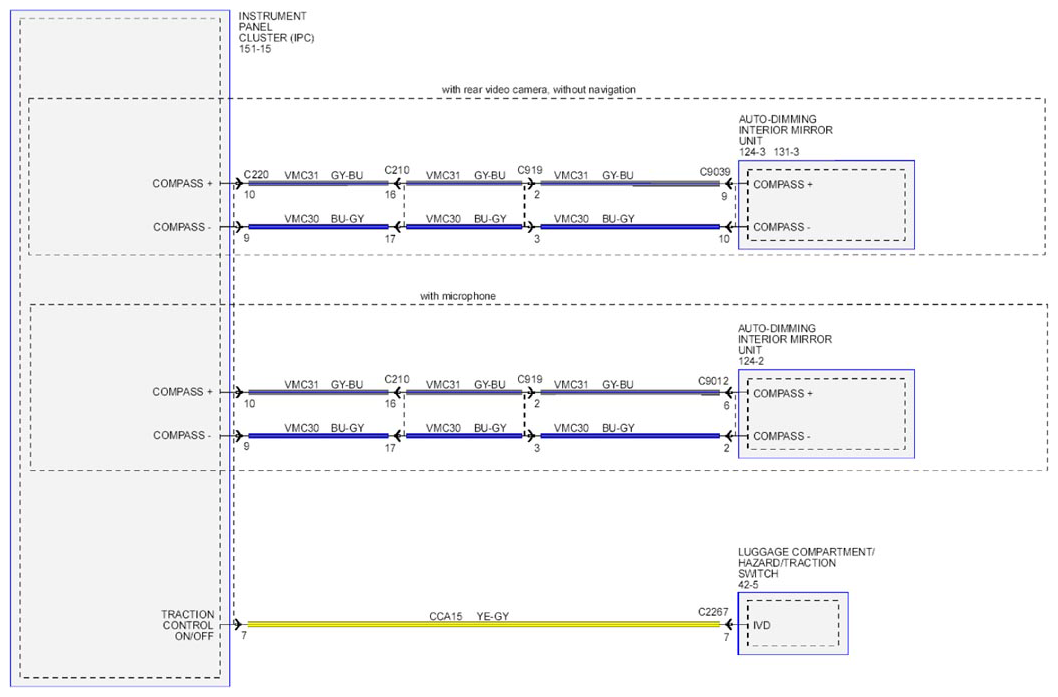

Fig 3: Instrument Cluster Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

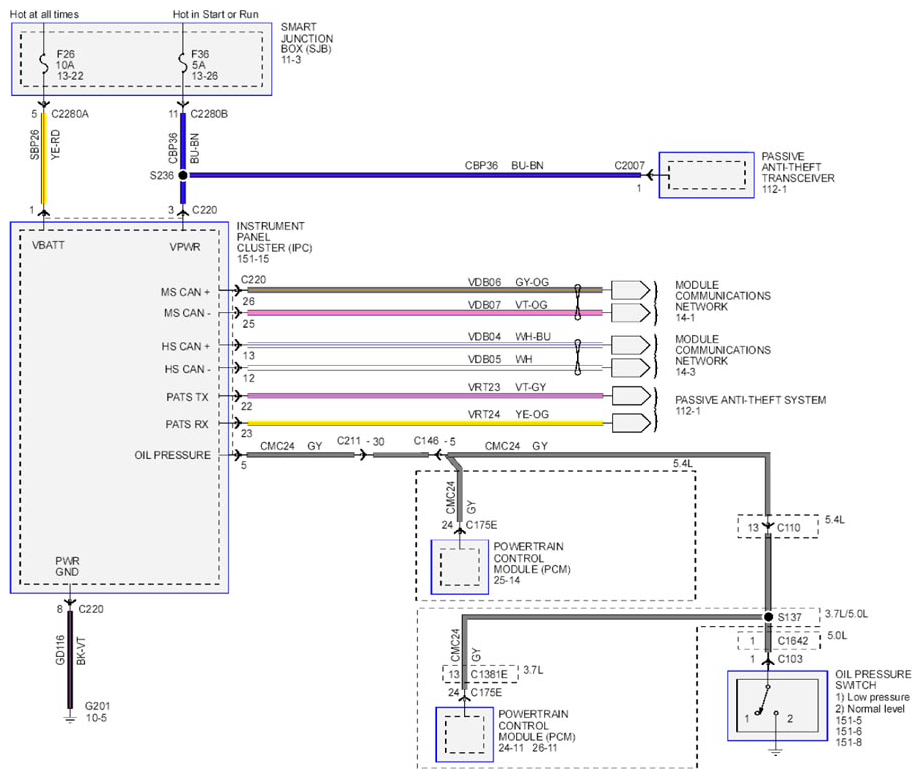

Fig 4: Instrument Cluster Circuit Diagram (4 Of 4)
