Electronic Engine Controls-5.4L

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

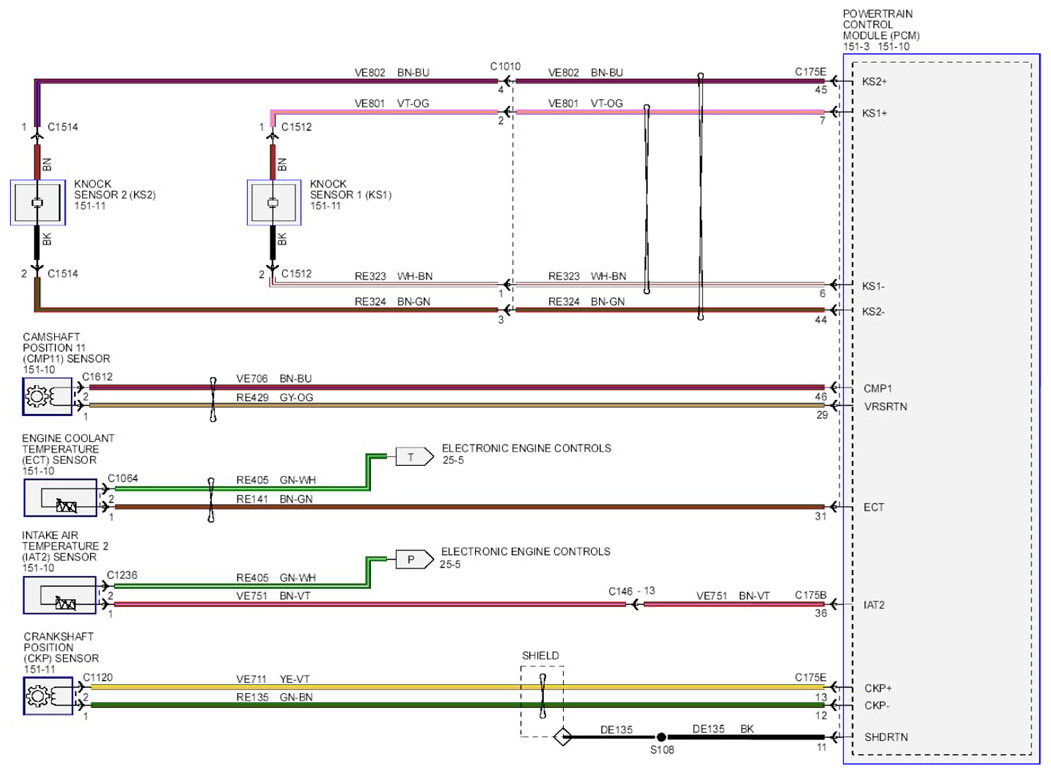

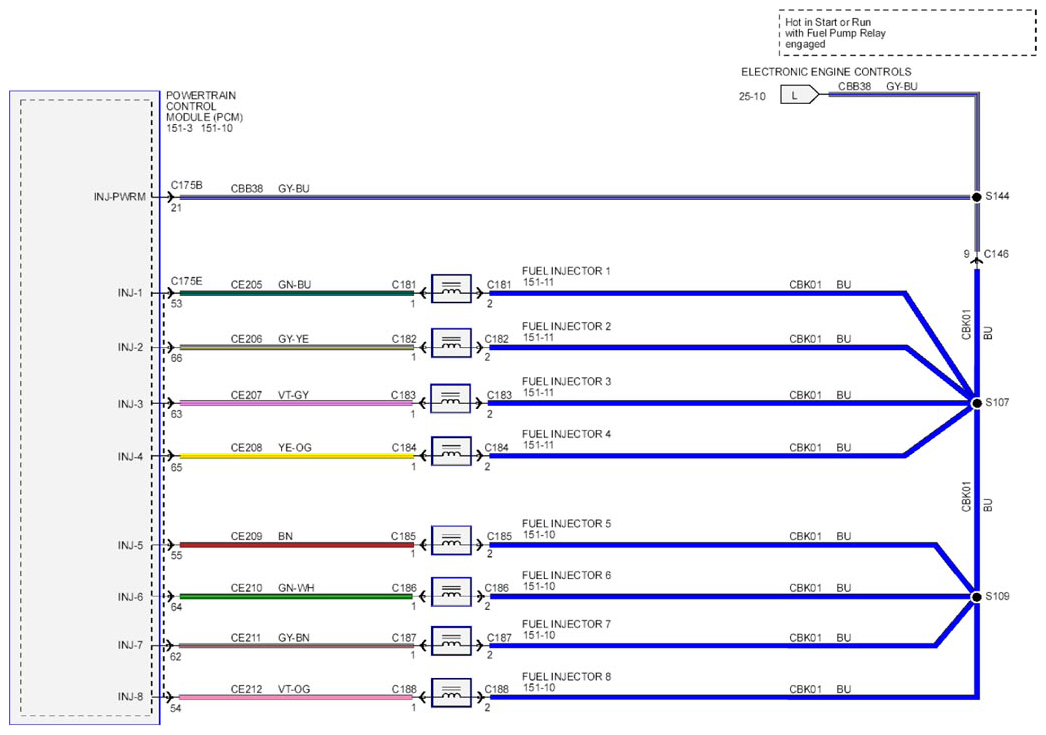

Fig 1: Electronic Engine Controls Circuit Diagram - 5.4L (1 Of 14)

Courtesy of FORD MOTOR CO.

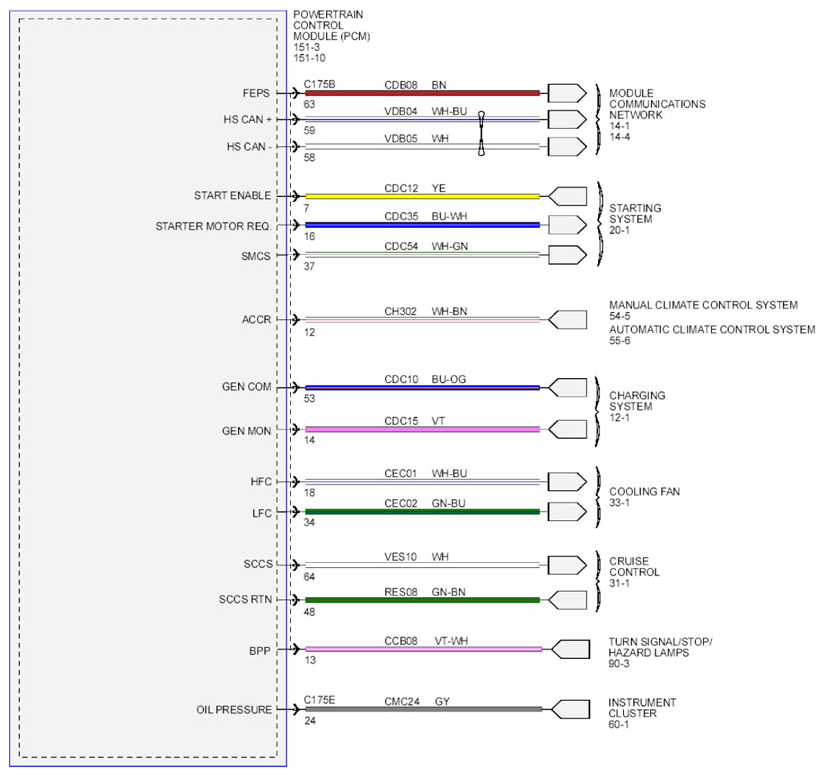

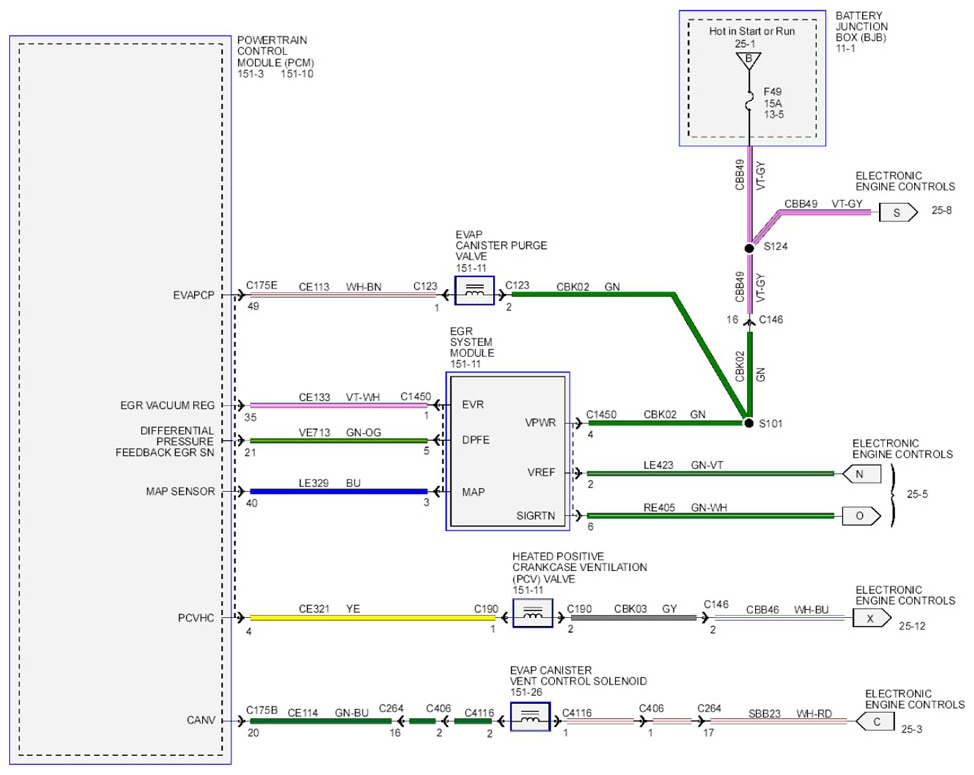

Fig 2: Electronic Engine Controls Circuit Diagram - 5.4L (2 Of 14)

Courtesy of FORD MOTOR CO.

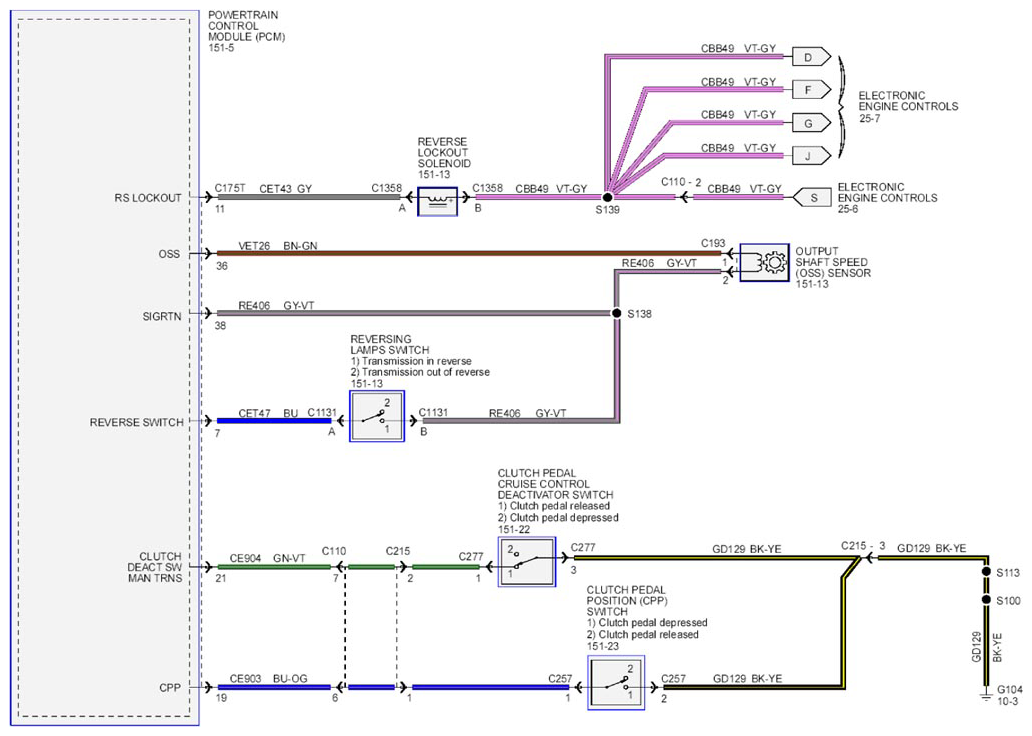

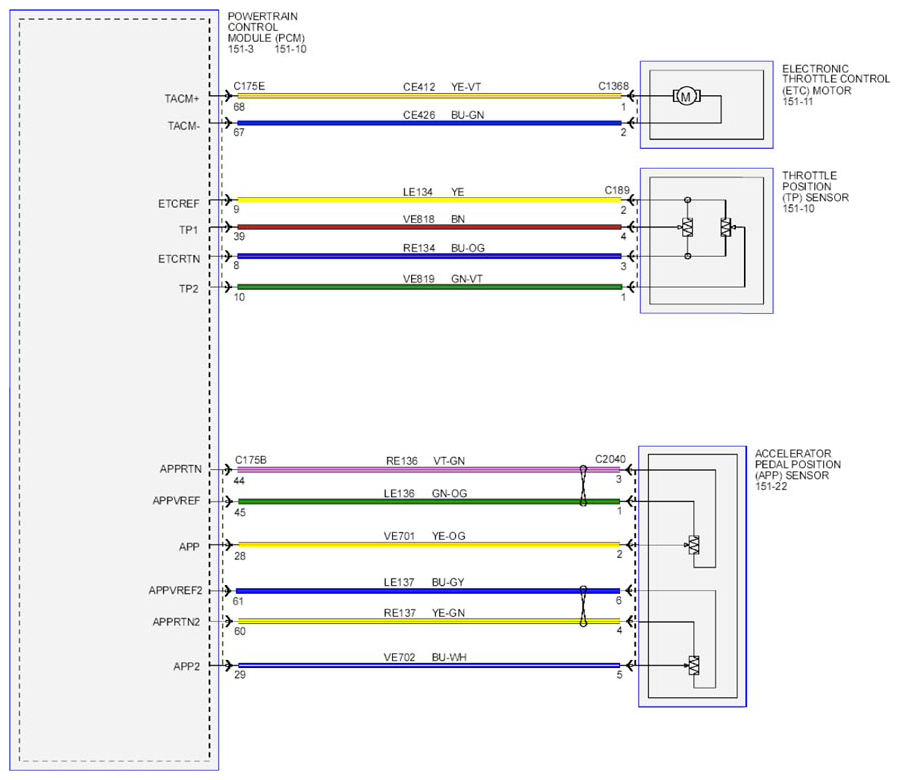

Fig 3: Electronic Engine Controls Circuit Diagram - 5.4L (3 Of 14)

Courtesy of FORD MOTOR CO.

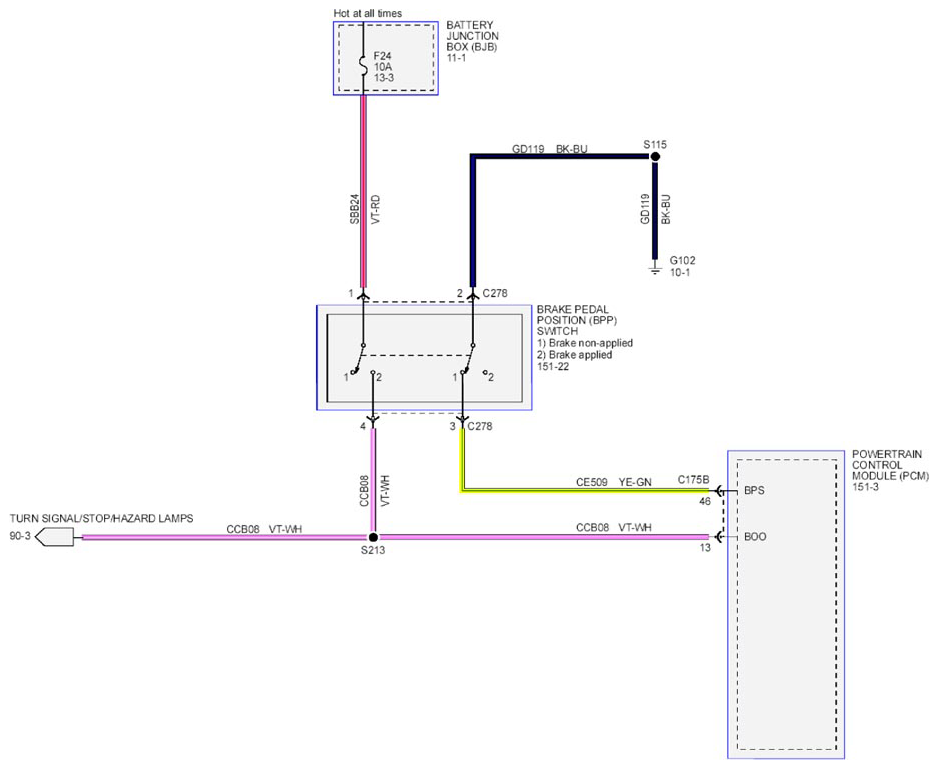

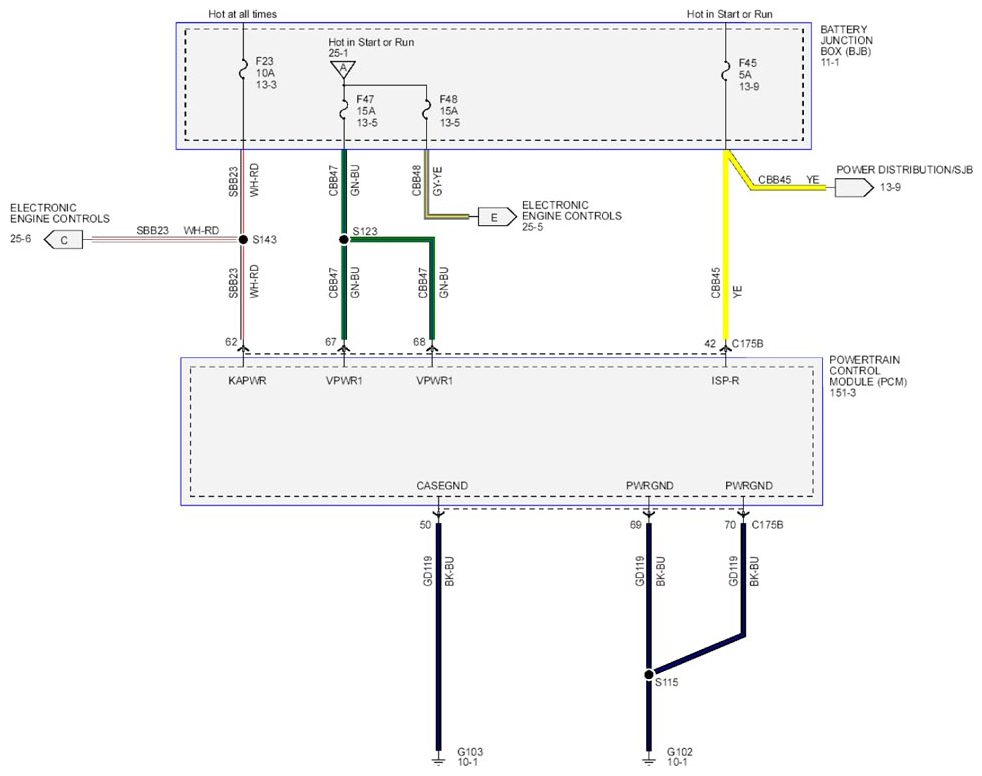

Fig 4: Electronic Engine Controls Circuit Diagram - 5.4L (4 Of 14)

Courtesy of FORD MOTOR CO.

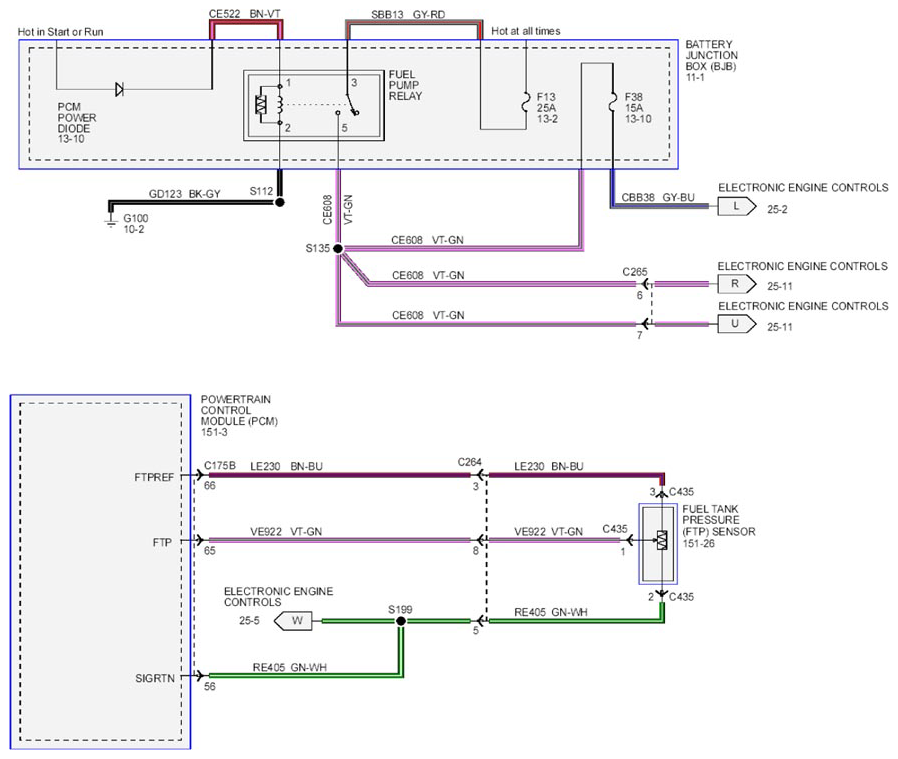

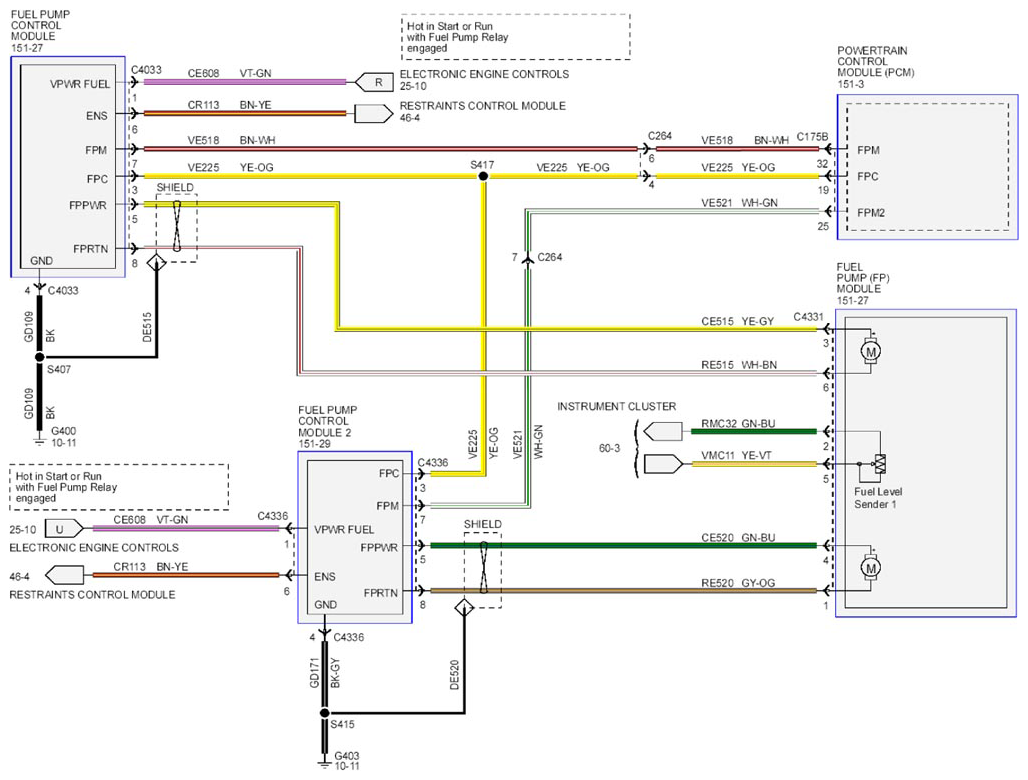

Fig 5: Electronic Engine Controls Circuit Diagram - 5.4L (5 Of 14)

Courtesy of FORD MOTOR CO.

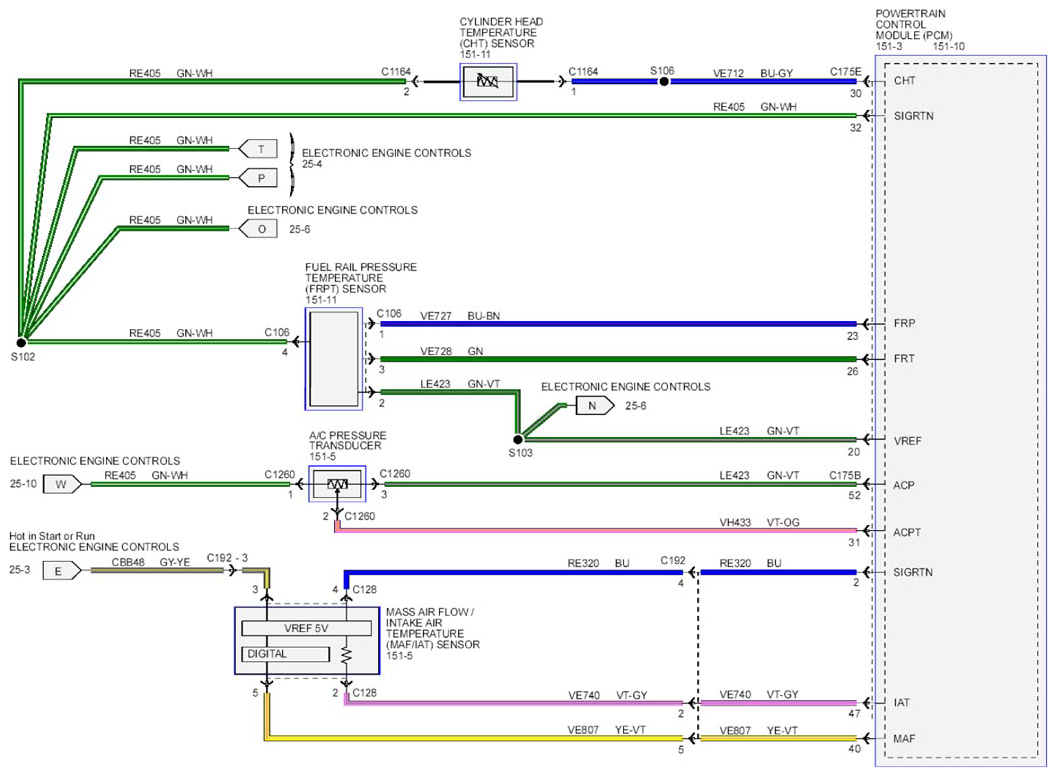

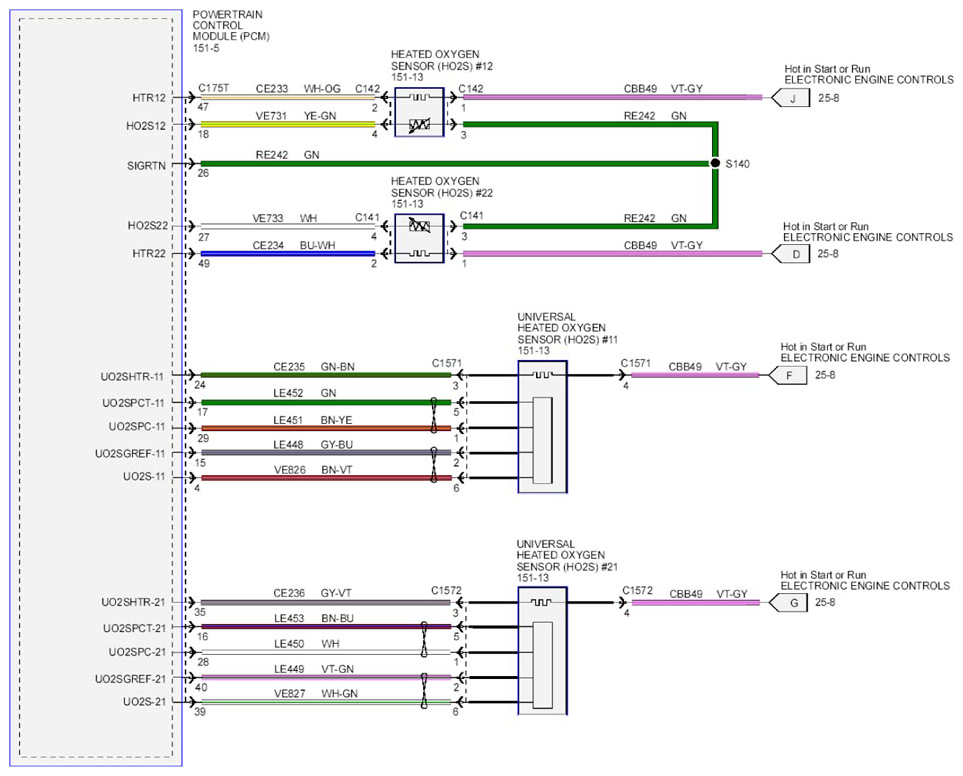

Fig 6: Electronic Engine Controls Circuit Diagram - 5.4L (6 Of 14)

Courtesy of FORD MOTOR CO.

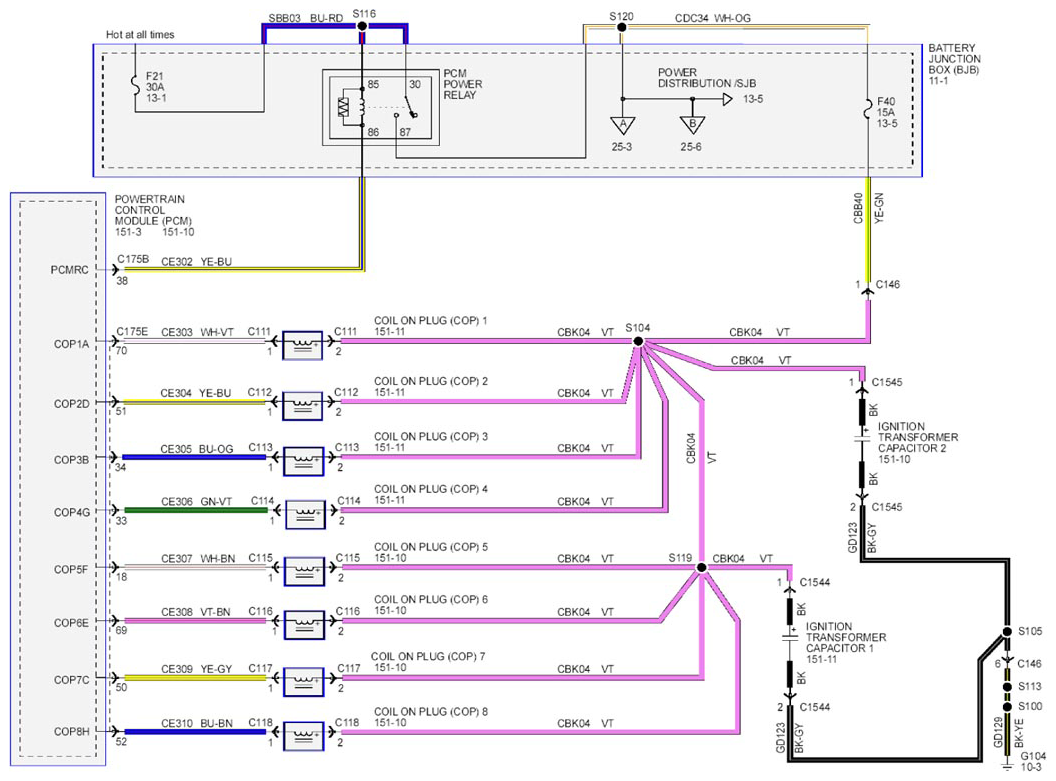

Fig 7: Electronic Engine Controls Circuit Diagram - 5.4L (7 Of 14)

Courtesy of FORD MOTOR CO.

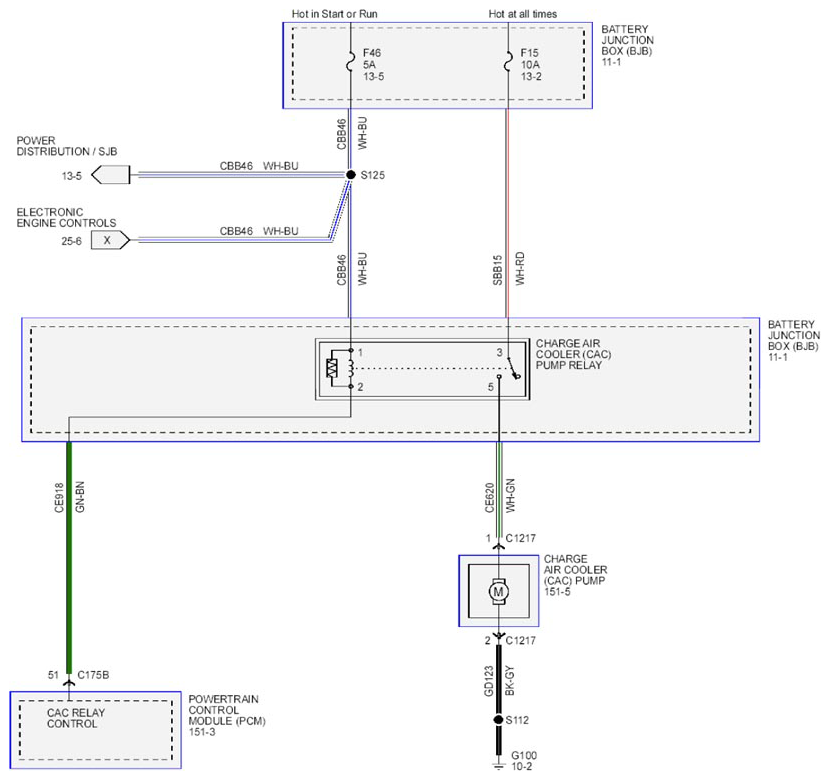

Fig 8: Electronic Engine Controls Circuit Diagram - 5.4L (8 Of 14)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls Circuit Diagram - 5.4L (9 Of 14)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls Circuit Diagram - 5.4L (10 Of 14)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls Circuit Diagram - 5.4L (11 Of 14)

Courtesy of FORD MOTOR CO.

Fig 12: Electronic Engine Controls Circuit Diagram - 5.4L (12 Of 14)

Courtesy of FORD MOTOR CO.

Fig 13: Electronic Engine Controls Circuit Diagram - 5.4L (13 Of 14)

Courtesy of FORD MOTOR CO.

Fig 14: Electronic Engine Controls Circuit Diagram - 5.4L (14 Of 14)

Courtesy of FORD MOTOR CO.
