Navigation/Shaker 500

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

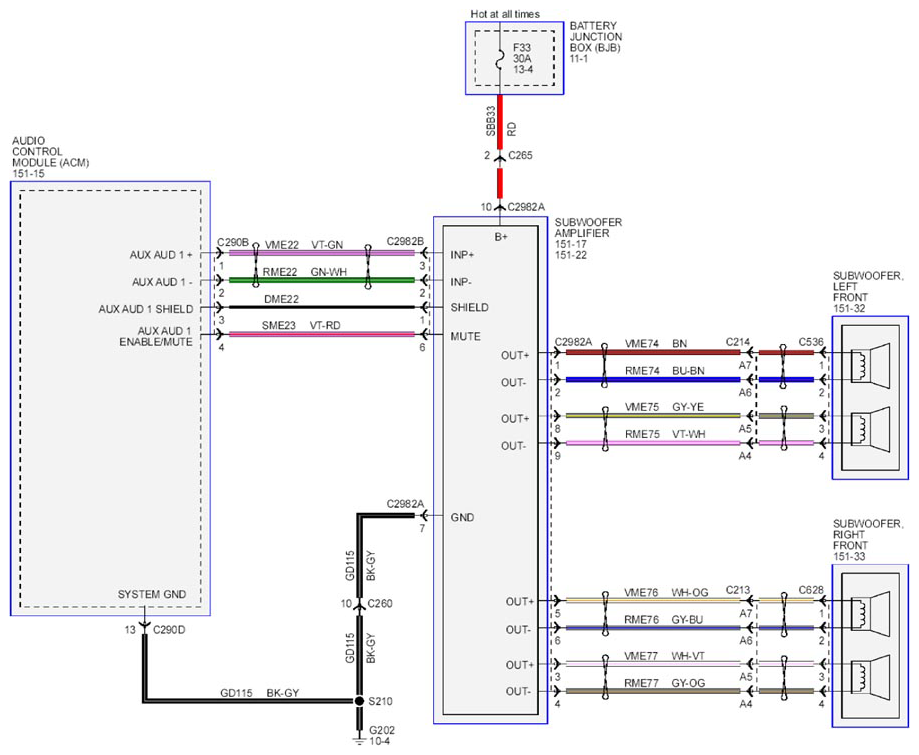

Fig 1: Audio System Navigation Circuit Diagram - Navigation/Shaker 500
G07925482Courtesy of FORD MOTOR CO.
